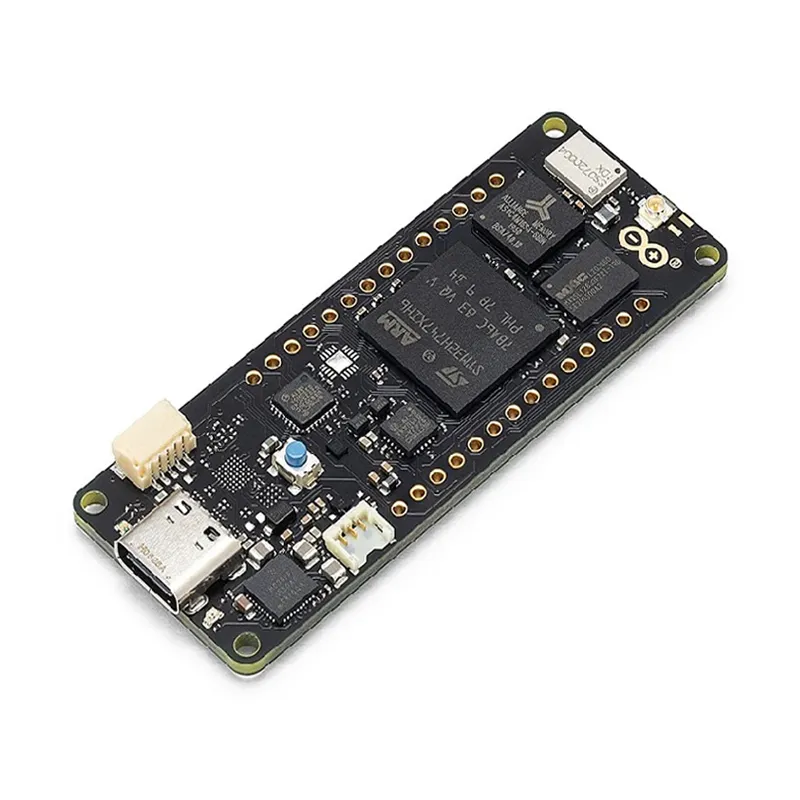

Arduino Portenta H7 Lite Connected Edge AI Board ABX00046

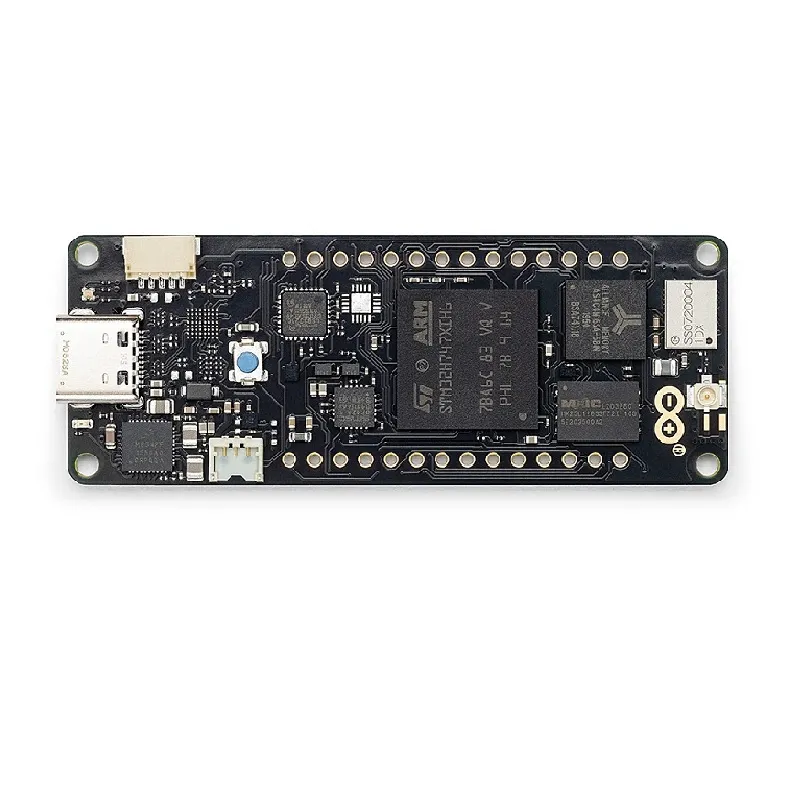

Arduino Portenta H7 Lite Connected Edge AI Board ABX00046 - Image 2

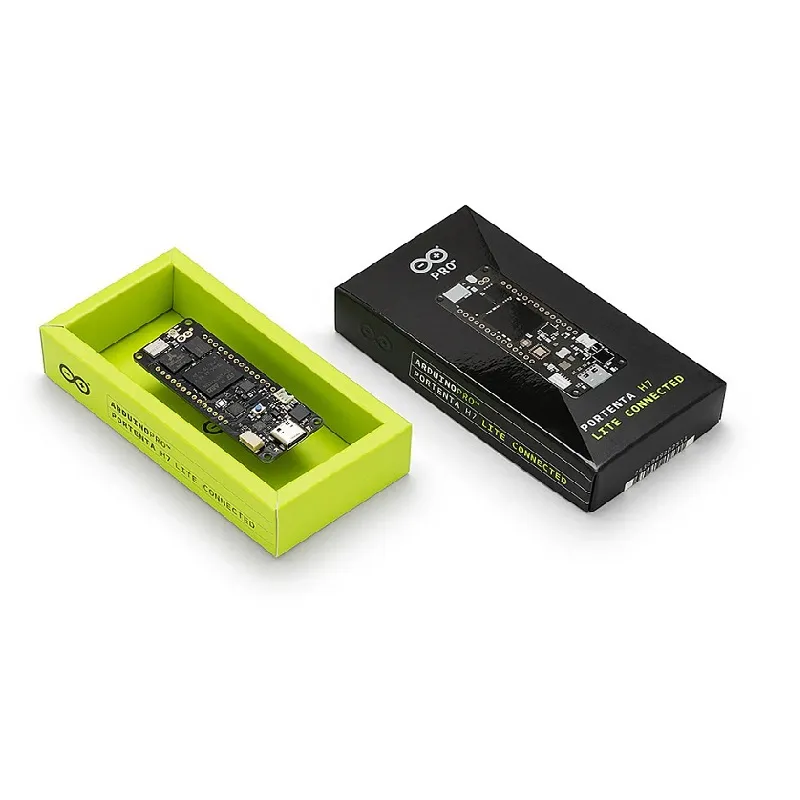

Arduino Portenta H7 Lite Connected Edge AI Board ABX00046 - Image 3
SKU: SBCD-0738
📋 GST Invoice Available

Arduino Portenta H7 Lite Connected Edge AI Board ABX00046

₹10,889.00 (Inclusive of all taxes)
Out of Stock

The Arduino Portenta H7 Lite Connected is an advanced dual-core microcontroller board, featuring an STM32H747XI MCU with Cortex-M7 and Cortex-M4 cores for powerful parallel processing. It integrates Ethernet, WiFi, and Bluetooth Low Energy connectivity, making it ideal for high-performance Edge AI, IoT, and machine learning applications with flexible power input via USB-C or 5V.

Features

  • Powered by a dual-core STM32H747XI (Cortex-M7+M4) MCU for advanced processing capabilities.
  • Features comprehensive connectivity including Ethernet, 2.4 GHz WiFi, and Bluetooth 4.1 Low Energy.
  • Designed in the compact MKR form factor with an 80-pin high-density connector for extensive expansion.
  • Supports a wide range of embedded applications, from AI and IoT to industrial control systems.
  • Offers flexible power input options via USB-C or an external 5V source.

Out of stock

Description

The Arduino Portenta H7 Lite Connected is a powerful microcontroller board designed for advanced embedded applications. It follows the MKR form factor but is enhanced with an 80-pin high-density connector. With its dual-core architecture, the board can run high-level languages alongside real-time tasks, making it ideal for projects involving AI, IoT, and machine learning. It can function either as a traditional microcontroller or as the main processor for an embedded computer, allowing for a wide range of innovative applications.

This board leverages the STM32H747XI dual-core ARM Cortex-M7 and Cortex-M4 processor, providing robust performance for demanding tasks while maintaining power efficiency. Its integrated wireless and wired connectivity options enable seamless data exchange and remote management, making it a versatile choice for developing sophisticated edge computing solutions.

Key Features

  • Flexible Programming Options: Supports multiple programming environments including Official Arduino IDE and MicroPython for diverse development workflows.
  • Parallel Task Management: Both Cortex-M7 and Cortex-M4 cores can communicate, allowing seamless integration and execution of complex functions and algorithms simultaneously.
  • Industrial-Grade Applications: Built for reliability, making it suitable for use in demanding industrial environments, especially when paired with specialized shields for real-time video processing.
  • Power Efficiency: Designed for low-latency operations, optimizing performance while minimizing overall power consumption for battery-sensitive projects.
  • Modular Expansion: The high-density 80-pin connector facilitates easy integration with additional Portenta family modules and shields for tailored functionality.
  • Robust Debugging Support: Includes a JTAG/SWD interface, providing comprehensive hardware debugging capabilities to streamline development and troubleshooting processes.
  • Secure Element Integration: Features a Microchip Technology ATECC608 secure element for enhanced hardware-level security in connected applications.

Applications

  • High-end industrial machinery control and monitoring.
  • Advanced laboratory equipment automation and data acquisition.
  • Real-time computer vision and image processing systems.
  • Programmable Logic Controllers (PLCs) and industrial automation.
  • Sophisticated robotics controllers for precision movement.
  • Edge AI and IoT solutions requiring local intelligence and connectivity.
  • Low-power wearable technology with advanced processing needs.
  • Remote server management and embedded computing.

Technical Specifications

MicrocontrollerSTM32H747XI (Dual Cortex-M7 @ 480MHz, Cortex-M4 @ 240MHz)
Model No. / NameABX00046
ConnectivityWi-Fi 2.4 GHz (802.11b/g/n), Bluetooth 4.1 (BLE), Ethernet 10/100 Mbps (via expansion)
Secure ElementMicrochip Technology ATECC608
Power Supply Voltage5V (USB-C or External VIN)
Operating Voltage3.3V
UART Ports4 (2 with flow control)
Operating Temperature-40 °C to +85 °C
HeadersMKR-styled (22 digital I/O, 7 analog inputs)
Connector TypeTwo 80-pin high-density connectors
Camera Interface8-bit, up to 80 MHz

Frequently Asked Questions

What is the core processor of the Portenta H7 Lite Connected?

The board features an STM32H747XI dual-core processor, comprising an Arm Cortex-M7 running at 480 MHz and an Arm Cortex-M4 running at 240 MHz. This architecture enables parallel execution of high-level operating systems and real-time tasks, optimizing performance for complex applications like Edge AI.

What connectivity options does the Portenta H7 Lite Connected offer?

It provides comprehensive wireless and wired connectivity. Integrated modules support 2.4 GHz Wi-Fi (802.11b/g/n) and Bluetooth 4.1 (including Low Energy). Additionally, it supports 10/100 Mbps Ethernet connectivity, which is accessible through an expansion port for robust network integration in industrial or IoT setups.

What development environments and tools are compatible with this board?

The Portenta H7 Lite Connected is compatible with the Official Arduino IDE, allowing for straightforward C/C++ programming. It also supports MicroPython for rapid prototyping and higher-level scripting. For advanced users, direct programming with STM32CubeIDE and other standard ARM toolchains is feasible, utilizing its JTAG/SWD debugging interface.

Can the Portenta H7 Lite Connected be used for industrial applications?

Yes, it is designed for industrial-grade applications, capable of operating in demanding environments with a temperature range of -40 °C to +85 °C. Its robust dual-core architecture, comprehensive connectivity, and secure element make it highly suitable for applications such as PLCs, industrial automation, robotics controllers, and high-end machinery.

Package Includes

  • 1 x Official Arduino Portenta H7 Lite Connected Edge AI Board ABX00046

Additional Information

Weight 0.033 kg
Dimensions 12 × 6 × 3 cm
