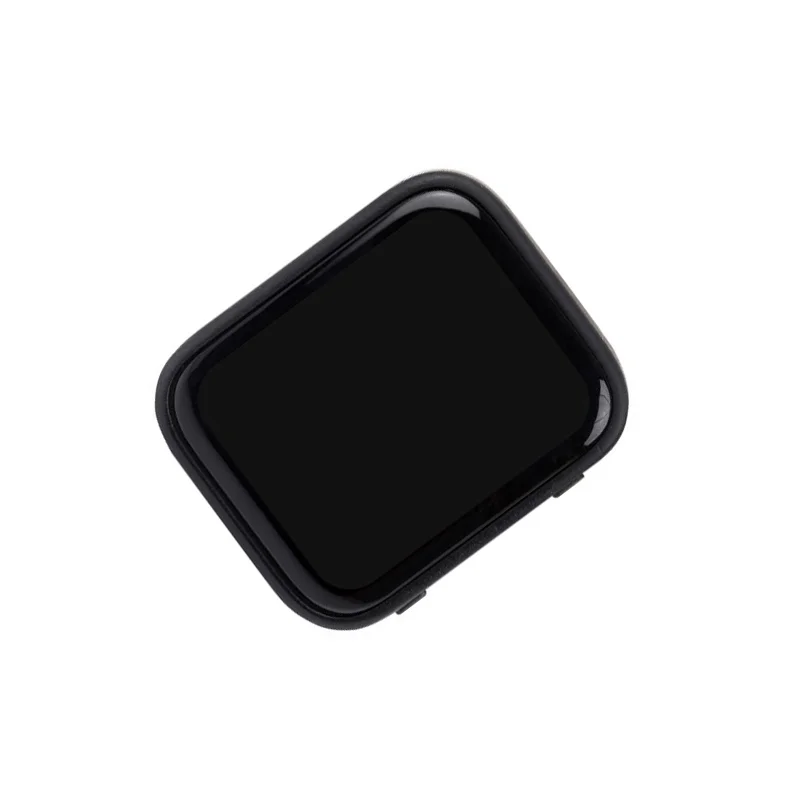

Waveshare RP2350 1.8-Inch AMOLED Touch Display Dev Board w/ IMU

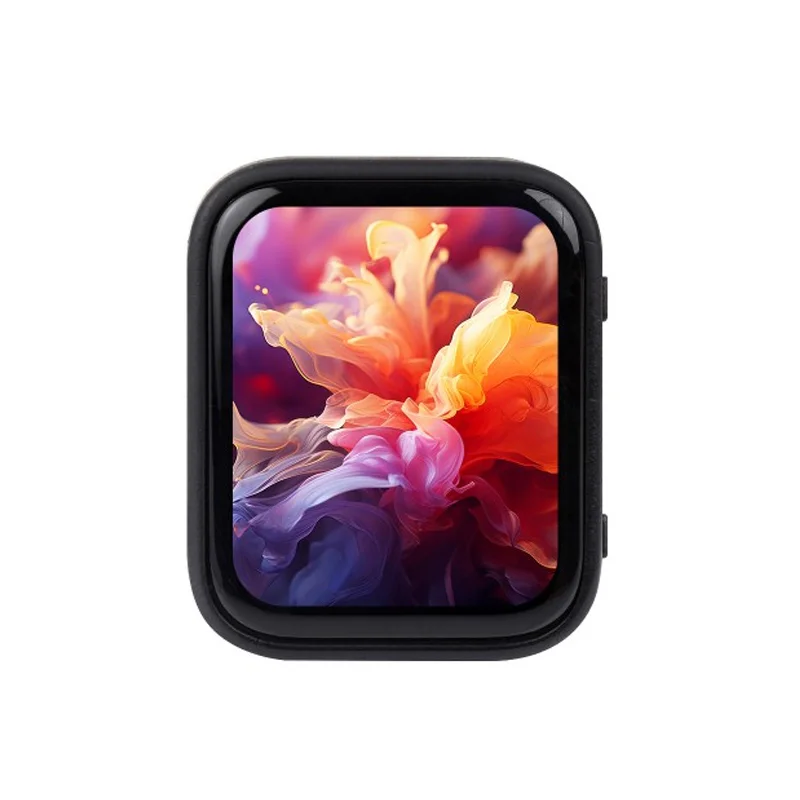

Waveshare RP2350 1.8-Inch AMOLED Touch Display Dev Board w/ IMU - Image 2

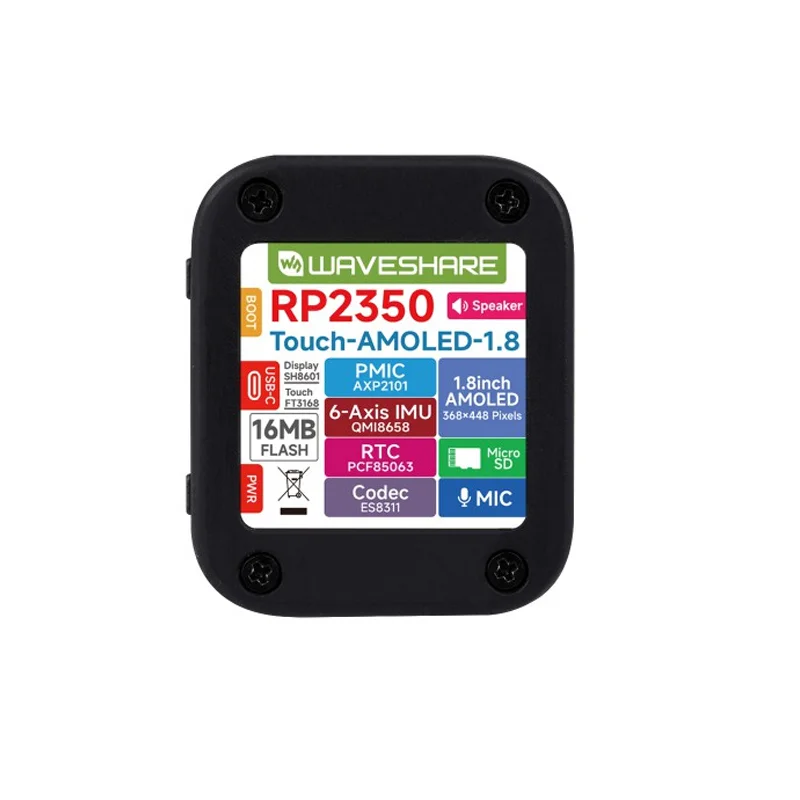

Waveshare RP2350 1.8-Inch AMOLED Touch Display Dev Board w/ IMU - Image 3

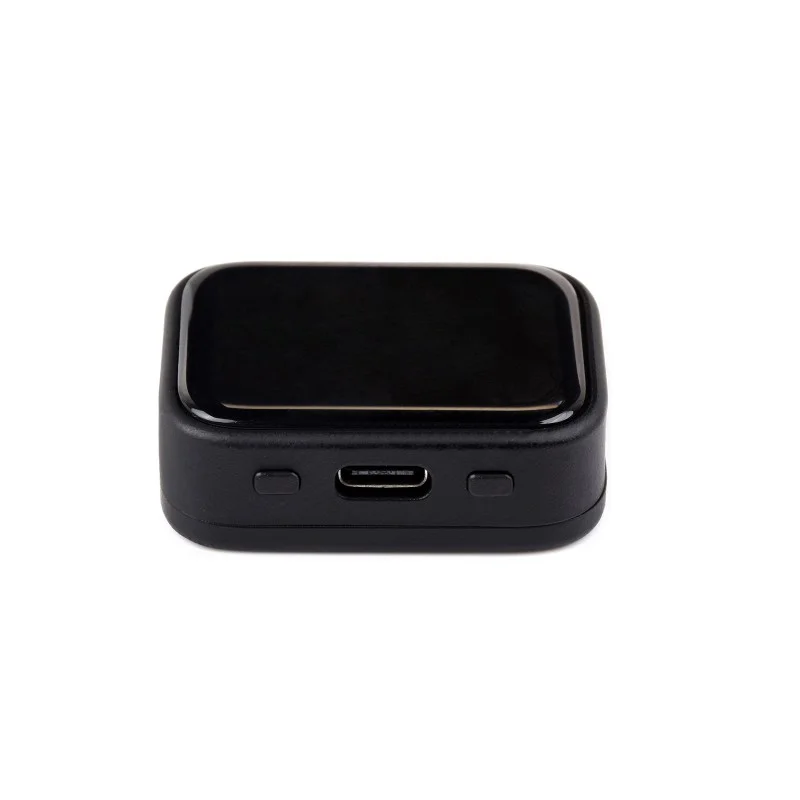

Waveshare RP2350 1.8-Inch AMOLED Touch Display Dev Board w/ IMU - Image 4
SKU: IOWC-1034
📋 GST Invoice Available

Waveshare RP2350 1.8-Inch AMOLED Touch Display Dev Board w/ IMU

₹3,129.00 (Inclusive of all taxes)
Out of Stock

The Waveshare RP2350 Development Board integrates a high-resolution 1.8-inch AMOLED touch display with a dual-core RP2350 MCU (ARM Cortex-M33/Hazard3 RISC-V), a 6-axis IMU, and audio codec. Powered via USB-C, it supports MicroPython, Arduino, and C/C++ for rapid prototyping of wearables and embedded IoT interfaces.

Features

  • High-Resolution AMOLED Touch Display: Features a vivid 1.8-inch, 368×448 pixel, 16.7M color AMOLED with capacitive touch for crisp UI rendering and intuitive interaction.
  • Dual-Core RP2350 MCU: Powered by the Raspberry Pi RP2350A microcontroller with dual ARM Cortex-M33 or Hazard3 RISC-V cores, offering up to 150 MHz clock speed for demanding embedded applications.
  • Integrated Motion & Audio Sensing: Includes a 6-axis IMU (gyroscope + accelerometer) for motion tracking and a built-in audio codec for sound processing, enabling rich sensor fusion projects.
  • Comprehensive Development Support: Offers USB-C connectivity, 16MB NOR flash, 520KB SRAM, QSPI/I2C interfaces, RTC, and battery management for portable, low-power IoT device development.
  • Multi-Platform Firmware Compatibility: Fully supported by MicroPython, Arduino IDE, and C/C++ toolchains, accelerating development for wearables, handheld instruments, and interactive IoT dashboards.

Out of stock

Description

The Waveshare RP2350 AMOLED Touch Display Development Board is a feature-rich embedded platform centered on the Raspberry Pi RP2350A dual-core microcontroller. It combines a high-quality 1.8-inch AMOLED panel with a capacitive touch overlay, driven by an FT3168 controller, providing a sharp, responsive interface for user applications. The onboard 6-axis inertial measurement unit (IMU) enables precise motion sensing for orientation and activity tracking.

Architecturally, the board provides robust I/O expansion via QSPI and I2C buses, interfacing with dedicated SH8601 and FT3168 controller chips. Power management is handled through a USB Type-C connector with integrated charging circuitry for an optional 3.7V lithium battery, facilitating mobile and wearable operation. With 16MB of NOR flash and 520KB of SRAM, the platform supports complex firmware developed in MicroPython, Arduino, or bare-metal C/C++ environments, making it an ideal choice for rapid prototyping of interactive IoT devices, portable diagnostic tools, and smart wearable interfaces.

Key Features

  • 1.8-inch AMOLED display with 368x448 resolution and 16.7 million colors for vibrant visual output.
  • Capacitive touch screen controlled by an FT3168 chip for smooth, multi-point interaction.
  • Dual-core RP2350A microcontroller (ARM Cortex-M33 / Hazard3 RISC-V) running at up to 150 MHz.
  • Integrated 6-axis IMU sensor combining a 3-axis gyroscope and 3-axis accelerometer for motion detection.
  • Onboard audio codec enables high-fidelity sound recording and playback capabilities.
  • Built-in real-time clock (RTC) chip for accurate timekeeping in battery-backed applications.
  • USB Type-C interface for programming, debugging, and power supply (5V operation).
  • Comprehensive power management with support for 3.7V Li-ion battery charging and discharging.

Applications

  • Wearable Technology: Smartwatches, fitness trackers, and health monitoring devices with interactive displays.
  • Portable Instrumentation: Handheld diagnostic tools, data loggers, and field measurement equipment.
  • Interactive IoT Dashboards: Smart home control panels, industrial HMI interfaces, and information kiosks.
  • Prototyping & Education: Embedded systems training and rapid prototyping for interactive electronics projects.
  • Gaming & Entertainment: Compact handheld gaming consoles and multimedia devices with motion controls.

Technical Specifications

Microcontroller/SoCRaspberry Pi RP2350A Dual-Core (ARM Cortex-M33 / Hazard3 RISC-V)
Display1.8-inch AMOLED, 368 x 448 pixels, 16.7M colors, Capacitive Touch
Sensor6-axis IMU (3-axis Gyroscope + 3-axis Accelerometer)
Flash Memory16MB NOR Flash
SRAM520KB
InterfacesUSB Type-C, QSPI, I2C, Audio Codec
Supply Voltage5V via USB-C
Max Operating Current250 mA
Operating Temperature-20°C to +70°C
Dimensions45mm (L) x 35mm (W)
Weight24g

Frequently Asked Questions

What programming environments are supported by the Waveshare RP2350 board?

The board is fully supported by MicroPython, the Arduino IDE, and C/C++ toolchains like the official Raspberry Pi Pico SDK. You can flash firmware via the USB Type-C port. For MicroPython, drag the UF2 file to the mounted drive. For Arduino, install the Raspberry Pi Pico board package via the Board Manager. Bare-metal development requires setting up the RP2350 toolchain in your preferred IDE.

How do I power the board for portable, battery-operated projects?

The board includes a charging circuit for a 3.7V lithium-ion/polymer battery (connector type: MX1.25). Connect the battery to the designated terminals. The USB Type-C port can simultaneously charge the battery and power the system. In sleep modes, the RTC and IMU can be powered from the battery for extended operation. Ensure your firmware manages power states to maximize battery life.

How do I interface with the capacitive touch screen and IMU sensor in code?

The capacitive touch is handled by the FT3168 controller over I2C. Use the provided libraries to read touch coordinates. The 6-axis IMU (accelerometer and gyroscope) also communicates via I2C. For Arduino, include the Adafruit_Sensor and Adafruit_BNO055 (or similar) libraries. In MicroPython, use I2C commands to read registers from the sensor's specific address. Example code is available in the Waveshare wiki.

Package Includes

  • 1 x Waveshare RP2350 1.8-inch AMOLED Touch Display Development Board

Additional Information

Weight 0.024 kg
Dimensions 4.5 × 3.5 cm
