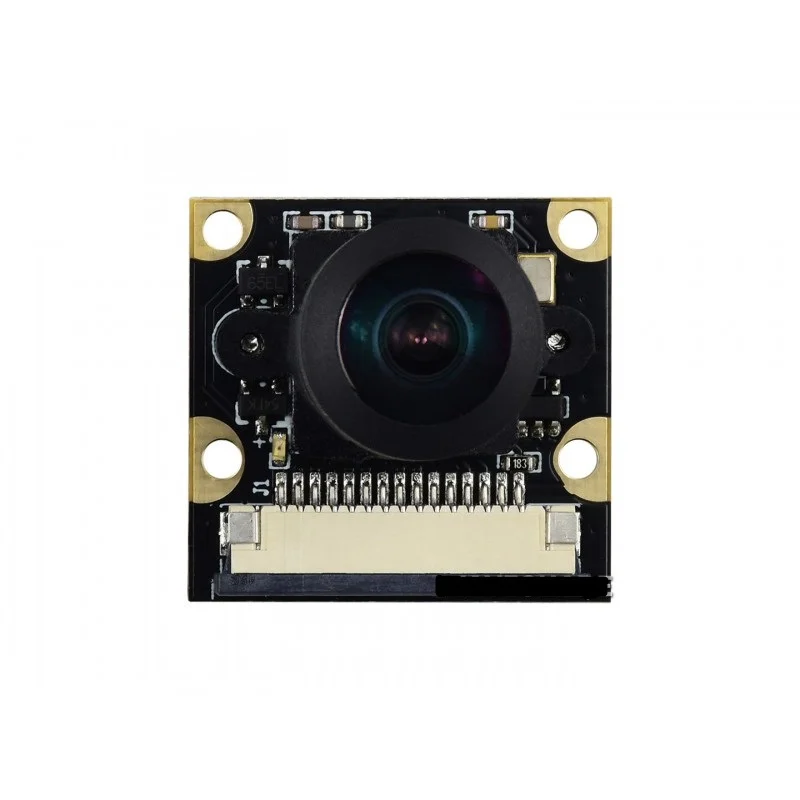

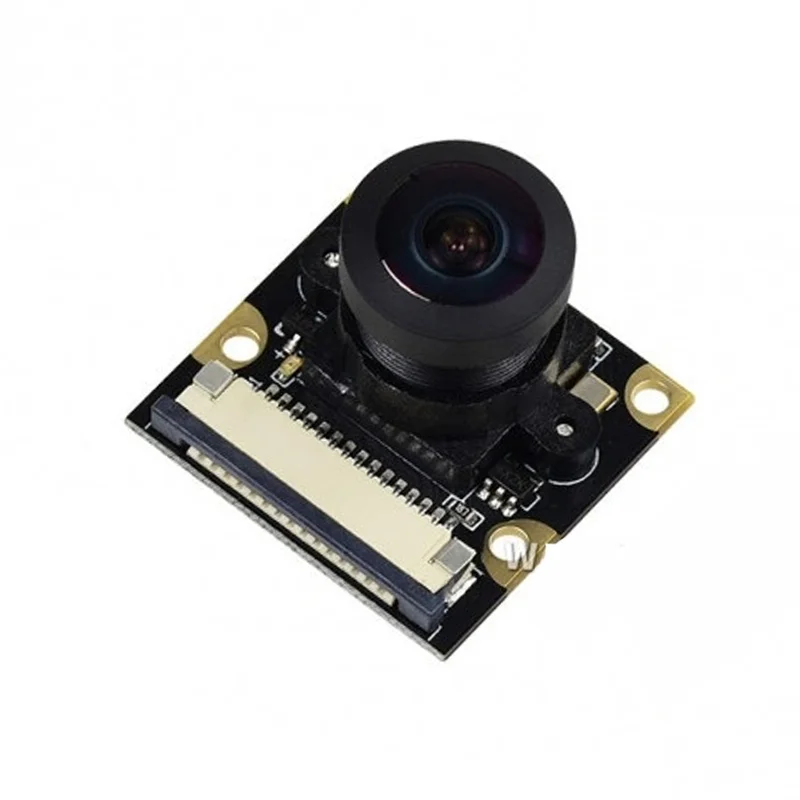

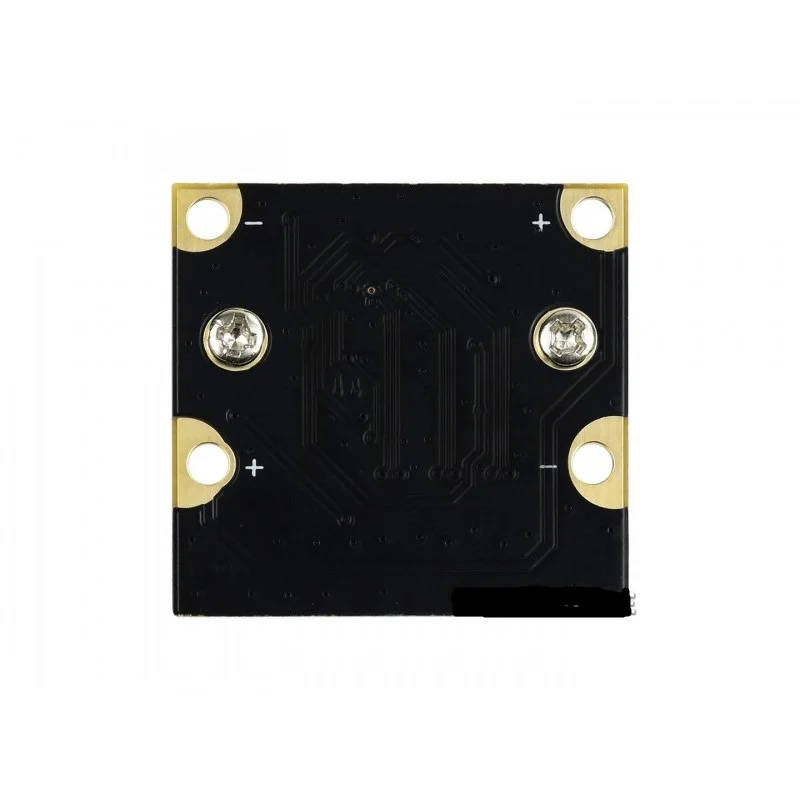

Waveshare Raspberry Pi Camera (G) Fisheye Lens, 5MP OV5647 Sensor
The Waveshare Raspberry Pi Camera (G) is a 5MP fisheye lens camera module with an OV5647 sensor, designed for Raspberry Pi SBCs. It provides a 160° ultra-wide field of view for immersive computer vision applications and operates on a 3.3V supply.
Features
- 5MP Fisheye Lens: Features an OV5647 sensor delivering 2592×1944 resolution and an expansive 160° field of view for immersive wide-angle imaging.
- Raspberry Pi Compatible: Connects via a 15-pin FFC cable and supports all Raspberry Pi revisions using the standard CSI-2 interface.
- Ultra-Wide 160° FOV: The 3.15mm focal length fisheye lens captures significantly more scene area than standard 72° lenses, ideal for surveillance and VR.
- Driver Flexibility: Supports both the legacy Raspicam stack and the newer libcamera open-source driver for advanced development and porting.
- Compact & Lightweight: Measures just 25x24mm and weighs 16g, making it perfect for space-constrained embedded vision projects.
Out of stock
The Waveshare Raspberry Pi Camera (G) integrates a 5-megapixel OV5647 CMOS sensor with a specialized fisheye lens, engineered for Raspberry Pi-based computer vision. This module delivers a 160-degree horizontal field of view, dramatically expanding the visual capture area compared to standard lenses. It is ideal for applications requiring panoramic monitoring, immersive virtual reality, or spatial awareness.
Designed for seamless integration, the camera connects via a 15-pin flat flex cable (FFC) to the Raspberry Pi’s CSI-2 port. It operates on a 3.3V supply, aligning with the Pi’s GPIO power specifications. The module supports both the traditional Raspicam driver and the modern, open-source libcamera stack, offering developers flexibility in software implementation for image processing pipelines and third-party driver development.
Additional Information
| Weight | 0.016 kg |
|---|---|
| Dimensions | 2.5 × 2.4 cm |
