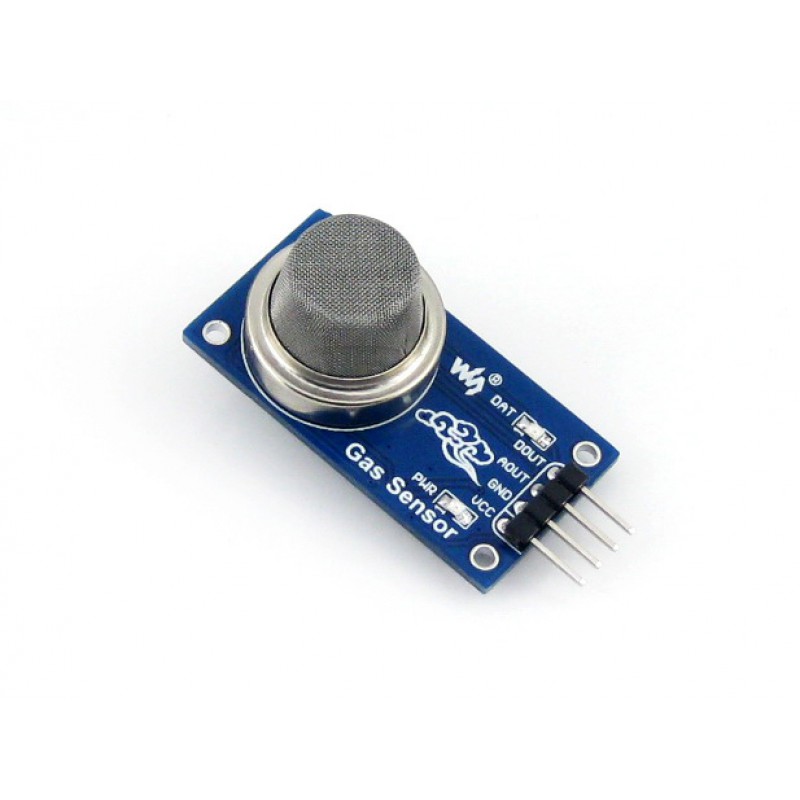

Waveshare MQ-7 Carbon Monoxide Sensor Module - 20-2000ppm CO Detection
The Waveshare MQ-7 is a carbon monoxide gas sensor module compatible with 3.3V/5V systems like Arduino, Raspberry Pi, and ESP32. It provides analog voltage output proportional to CO concentration for air quality monitoring and safety applications.
Features
- MQ-7 semiconductor sensor for carbon monoxide (CO) detection.
- Wide detecting range from 20 ppm to 2000 ppm CO.
- Low operating voltage range from 2.5V to 5.0V DC.
- Fast response and recovery characteristics.
- Onboard comparator for adjustable digital output threshold.
Out of stock
The Waveshare MQ-7 module utilizes a semiconductor gas sensor element sensitive to carbon monoxide. The sensor’s conductivity changes with the concentration of CO in the ambient air, which is converted into an analog output voltage. This allows for direct interfacing with microcontroller ADCs for precise concentration measurement.

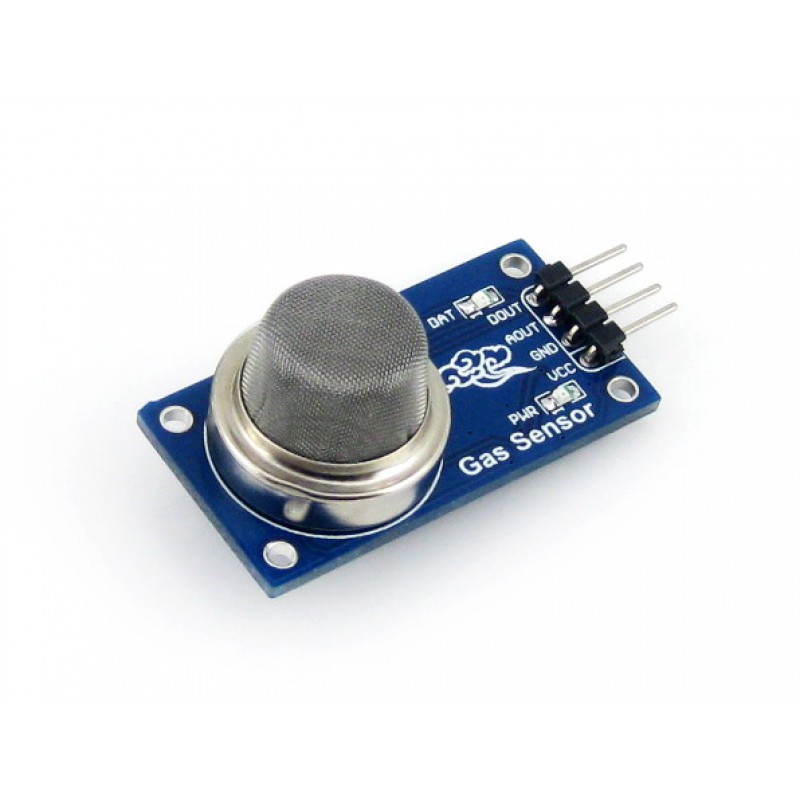

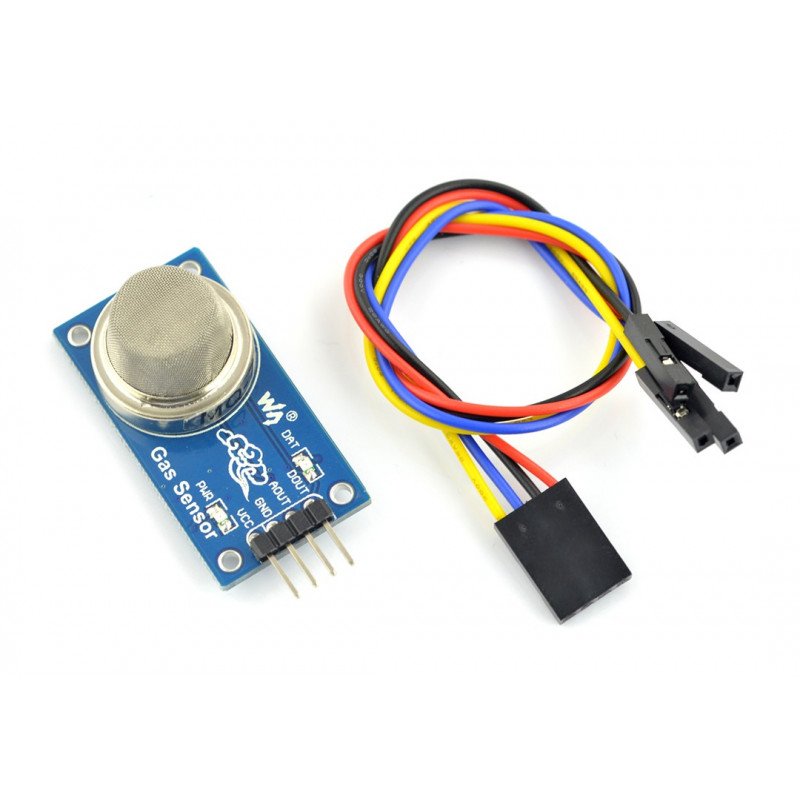

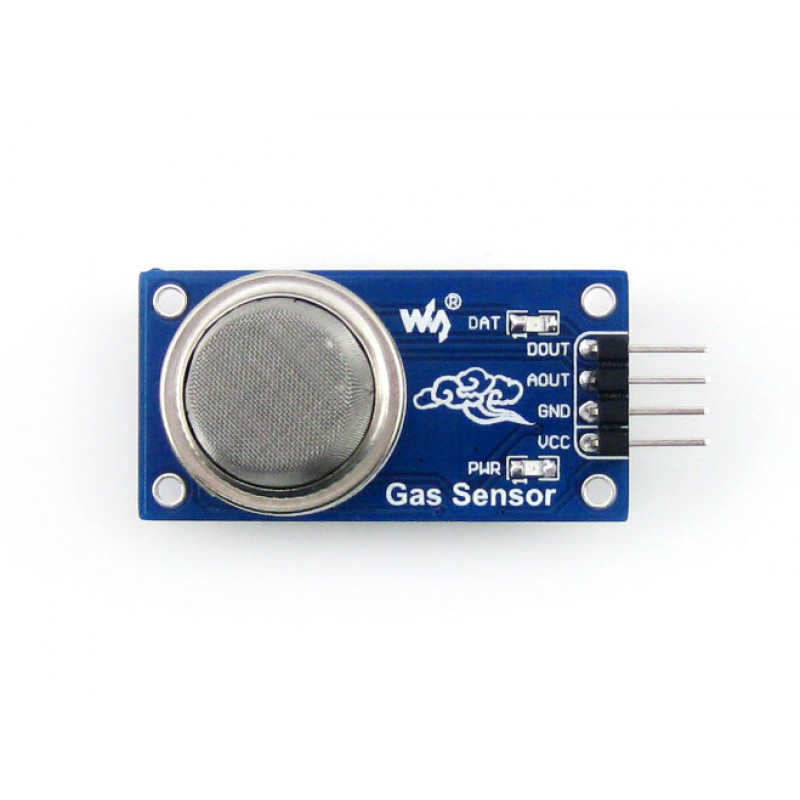

Designed for reliable operation in environments with relative humidity up to 95% RH, the module includes a simple interface with power, ground, analog output, and digital output pins. The onboard potentiometer allows for sensitivity adjustment of the digital output trigger point, making it suitable for alarm applications.
Additional Information
| Weight | 0.007 kg |
|---|---|
| Dimensions | 4 × 2 × 1.7 cm |
