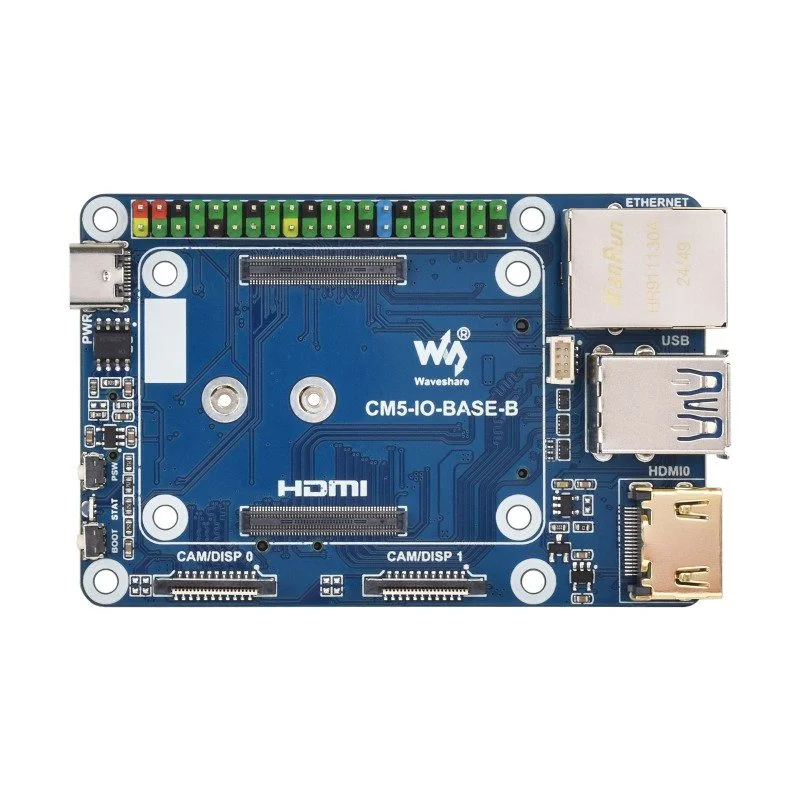

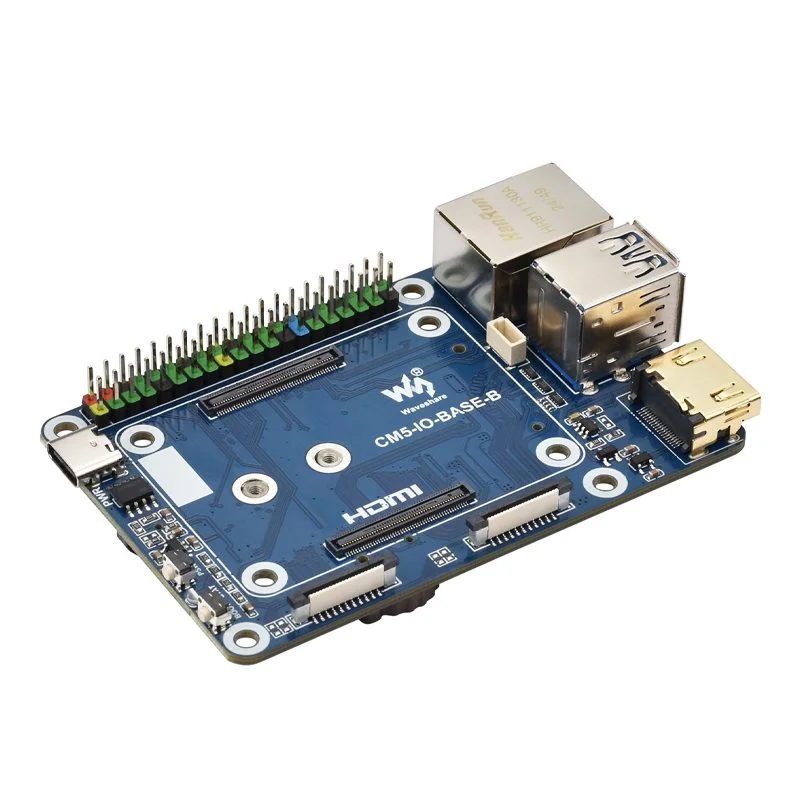

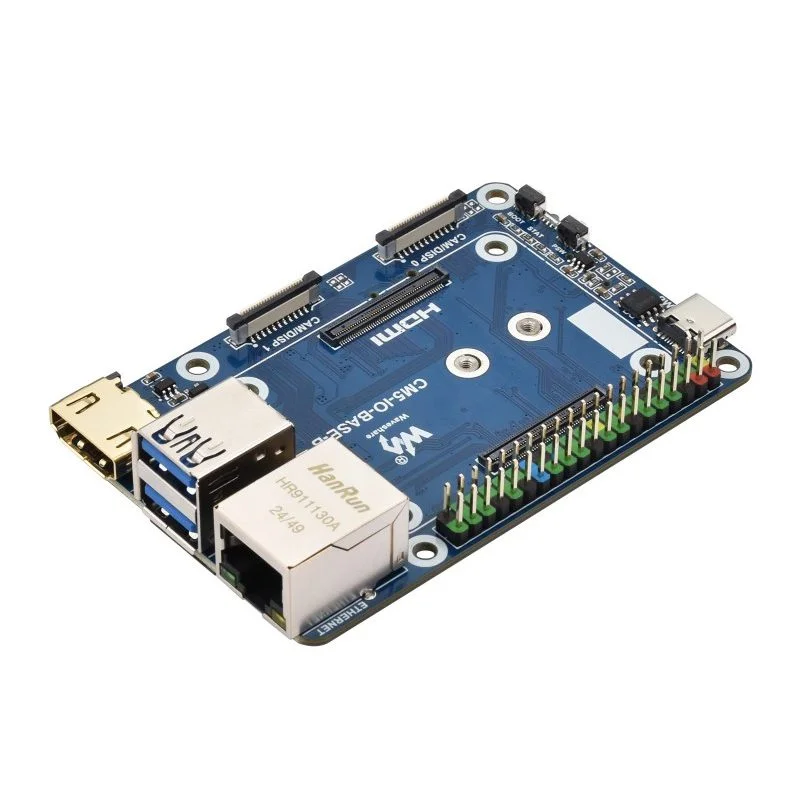

Waveshare Mini Base Board (B) for Raspberry Pi Compute Module 5

No, the Raspberry Pi Compute Module 5 (CM5) is not included. This Waveshare Mini Base Board (B) is a carrier board designed to host a separately purchased CM5 module. You must source and install a compatible CM5 variant (Lite or with eMMC) onto the board's connector to create a functional system. The board provides all necessary power regulation, interfaces, and security features for the module.

The ATSHA204 chip is connected to the CM5 via the I2C bus. To use it, you must develop firmware that communicates with the chip using its command set, typically via a library like libatsha204 or Python's `cryptography` module. Common uses include generating and storing unique device keys, performing cryptographic challenges for secure boot, or encrypting configuration data stored in the onboard EEPROM. You will need to reference Microchip Technology's ATSHA204 datasheet for the specific command protocol.

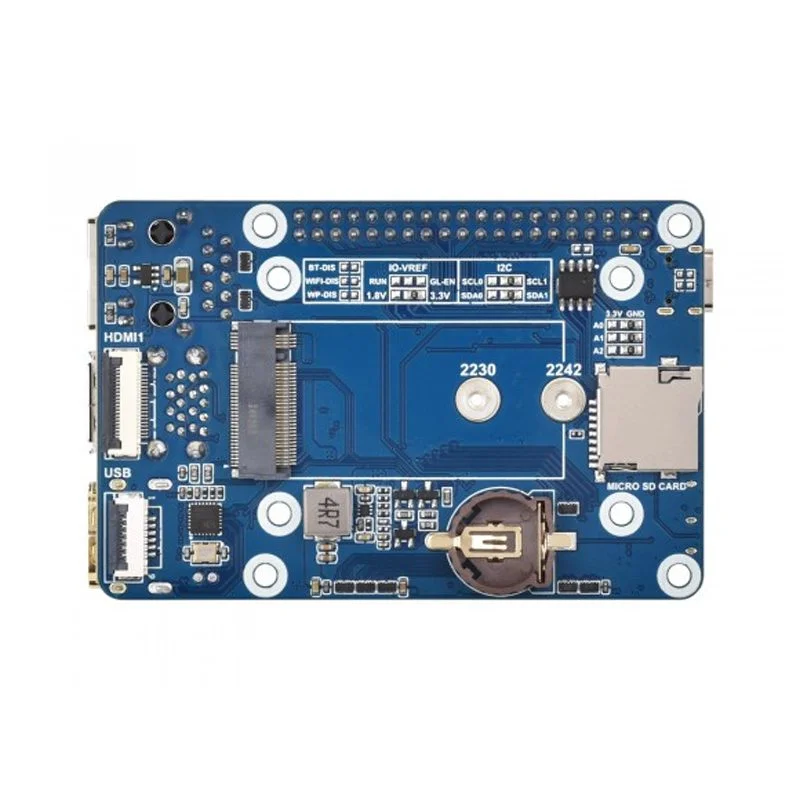

The board features an M.2 M Key slot, which is physically and electrically designed for NVMe PCI Express SSDs (not SATA-based M.2 drives). You should use a standard 2280 or shorter (e.g., 2242) length NVMe SSD. The Raspberry Pi Compute Module 5's PCIe Gen 2 x1 interface provides the bandwidth. Ensure your OS (like Raspberry Pi OS 64-bit) has the necessary NVMe driver support enabled, and you may need to configure the boot order in the CM5's EEPROM to boot from the NVMe drive.

Active cooling is highly recommended for sustained high-performance workloads, as the CM5 can generate significant heat. The board includes a 5V fan header (J10) for this purpose. For lighter loads or well-ventilated enclosures, a passive heatsink attached directly to the CM5's heat spreader might suffice, especially if used with the optional metal case which acts as a heatsink. Monitoring the SoC temperature via software (e.g., `vcgencmd measure_temp`) is advised to ensure thermal limits are not exceeded during your specific application.
