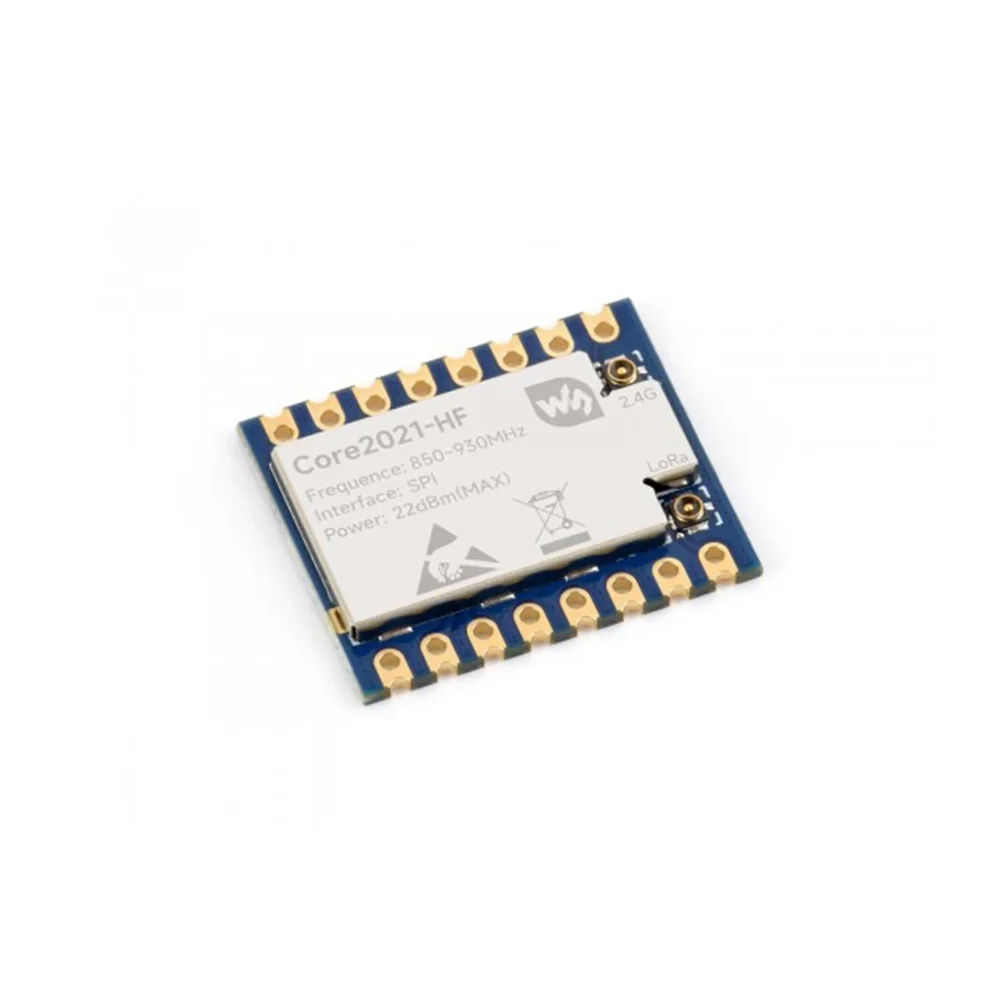

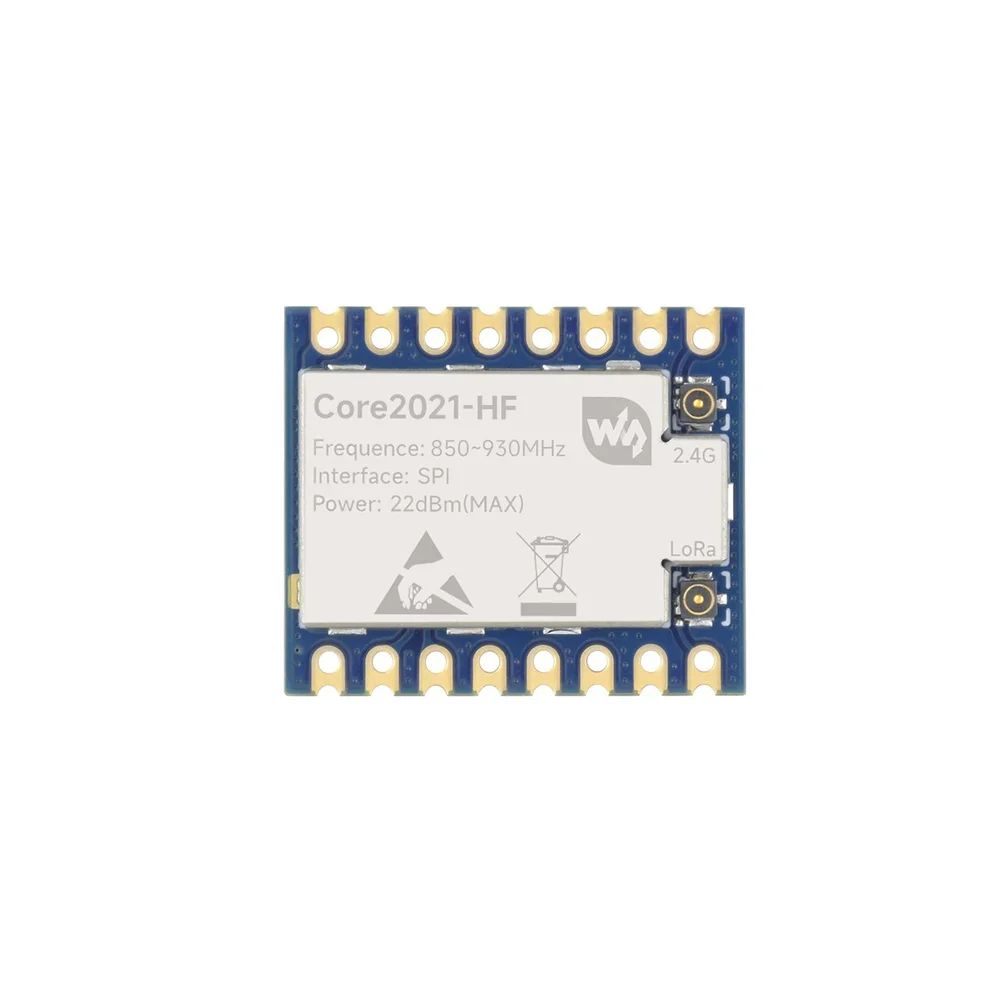

Waveshare Core2021-HF Dual-Band LoRa Module LR2021 Transceiver

The Core2021-HF module utilizes an SPI interface for all communication with the host microcontroller. Connect the module's SPI pins (MOSI, MISO, SCK, CS) directly to your MCU's corresponding SPI peripheral pins. Ensure your MCU operates at 3.3V logic levels; if using a 5V Arduino, you must implement a bidirectional logic level shifter on the SPI lines to prevent damage to the module's LR2021 transceiver IC.

To configure the Core2021-HF for LoRaWAN, you must initialize the LR2021 transceiver via SPI commands, setting the frequency band (e.g., 868MHz for EU), spreading factor (SF7-SF12), bandwidth (125 kHz typical), and coding rate. Use a LoRaWAN stack library like Mbed TLS or Semtech's LoRaMAC-node. With the included antenna and +22dBm transmit power, typical line-of-sight range in the Sub-GHz band is approximately 5 kilometers, though urban environments with obstructions will reduce this distance significantly.

Yes, you can interface the Core2021-HF module with a 5V Arduino Uno, but you must use a logic level converter (e.g., a bi-directional shifter like the TXB0104) on all SPI signal lines (SCK, MOSI, MISO, CS) and any GPIO used for reset or interrupt. The module's absolute maximum voltage on any pin is 3.7V; applying 5V directly will permanently damage the LR2021 chip. Power the module from the Arduino's 3.3V pin, ensuring it can supply the required current during transmission peaks.

The package includes a 2dBi SMA antenna for Sub-GHz operation and a separate 2.4GHz antenna for ISM band use. The module features an IPEX-4 connector; use the provided IPEX4-to-SMA cable to connect the SMA antenna. For permanent embedded designs, you can solder a wire antenna or ceramic chip antenna directly to the castellated pad designated for the RF output, ensuring proper impedance matching (50 ohms) and keeping the trace length minimal to preserve signal integrity.

Waveshare provides example code and libraries for ESP32 (using ESP-IDF or Arduino core), STM32 (via HAL libraries), Arduino frameworks, Raspberry Pi (using Python or C), and Raspberry Pi Pico (MicroPython/C SDK). The LR2021 is controlled through its SPI register set; you can use the manufacturer's driver or open-source libraries to handle protocol initialization, packet transmission, and reception. Start by downloading the official wiki resources which include wiring diagrams and basic AT command or raw SPI configuration examples.
