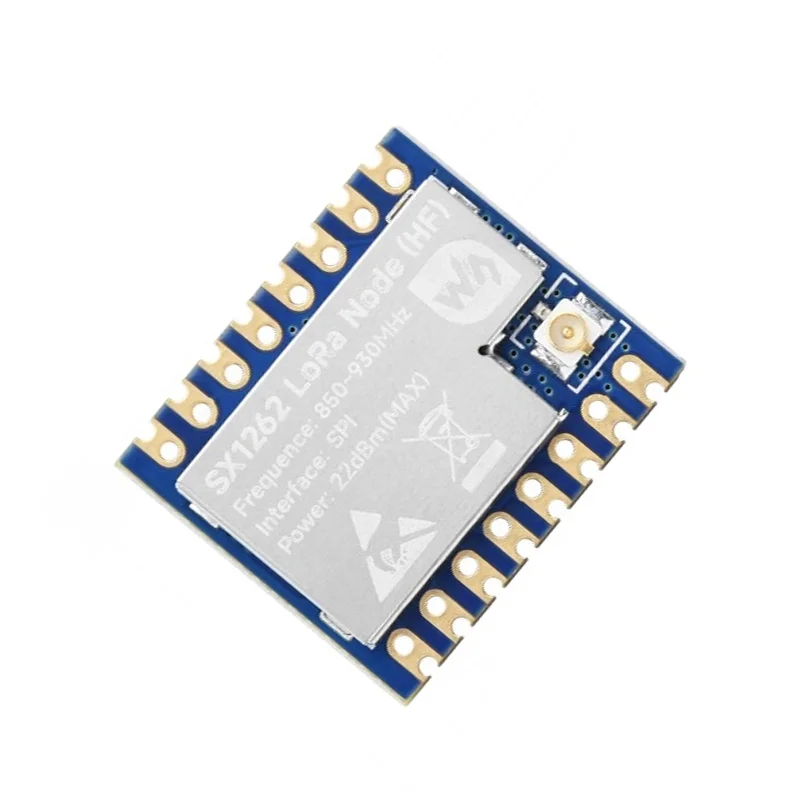

Waveshare Core1262 HF 850-930MHz LoRa Module w/ SX1262
The Waveshare Core1262 HF is a compact LoRa module based on the Semtech SX1262 transceiver, operating in the 850-930MHz EU868 band. It is designed for long-range, low-power IoT networks and is compatible with platforms like STM32 and Raspberry Pi Pico for connecting to LoRaWAN servers such as The Things Network (TTN).
Features
- Powered by the efficient Semtech SX1262 LoRa transceiver for superior power efficiency and range compared to older SX127x chips.
- Operates in the 850-930MHz EU868 frequency band, ideal for long-range sub-GHz IoT communication with high anti-interference capability.
- Features a compact 21 x 52mm castellated edge design for easy soldering and integration into custom PCB designs.
- Supports both LoRa and (G)FSK modulation with configurable spreading factors (SF5-SF12) and data rates up to 62.5 Kbps.
- Includes comprehensive development resources and examples for popular MCU platforms including STM32 and Raspberry Pi Pico.
Out of stock
The Waveshare Core1262 HF module is a dedicated LoRa core built around the advanced Semtech SX1262 RF IC. This next-generation chipset offers significant improvements in current consumption and link budget over legacy designs, enabling more robust and power-efficient sensor nodes for IoT deployments. The module is factory-configured for the EU868 band, making it ready for LoRaWAN network integration with gateways and cloud servers like The Things Network.

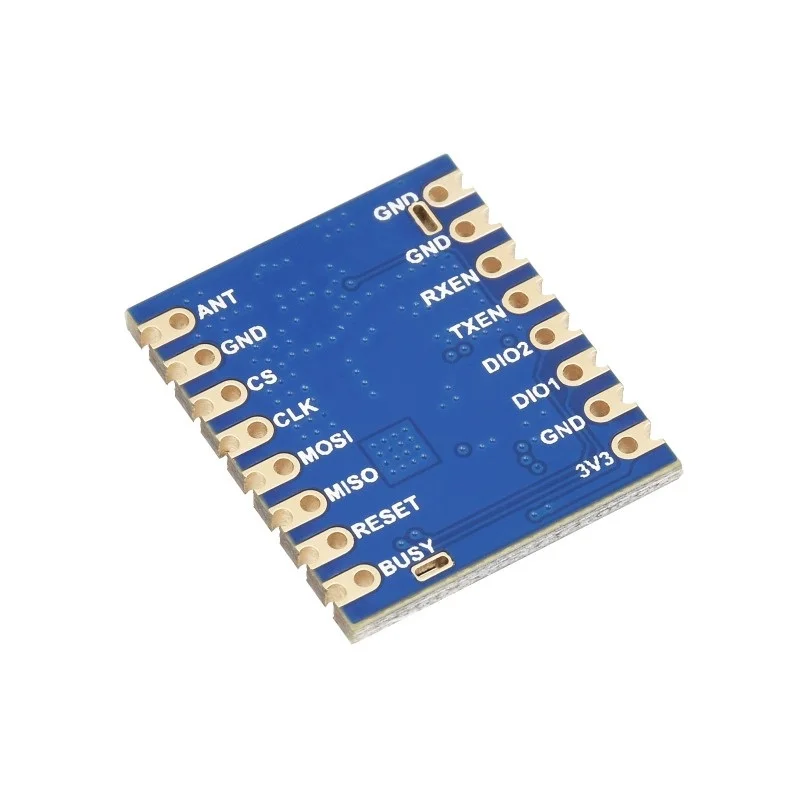

Its architecture is optimized for low-duty-cycle applications, with a receiving current of just 5.3mA and a transmit current of 45mA at 14dBm output power. Communication is handled via a standard SPI interface, providing developers with direct control over modulation settings, RF power, and packet formatting. The module’s castellated edge and solder hole footprint allow for flexible mounting, catering to both prototyping and volume production requirements in industrial telemetry, smart agriculture, and asset tracking systems.
Additional Information
| Weight | 0.004 kg |
|---|---|
| Dimensions | 5.2 × 2.1 cm |
