Waveshare CAN FD Protocol Converter, CAN FD to ETH Bidirectional Data Communication, Supports 5 Data Conversion Modes and CAN 2.0A/2.0B Protocols, Rail-mount Support
The Waveshare CAN FD Protocol Converter enables robust bidirectional communication between CAN FD/CAN 2.0 networks and 10/100 Mbps Ethernet systems. Designed for industrial environments, it supports five data conversion modes and operates from a wide 9-36V DC input with a -40°C to +85°C temperature range, making it ideal for integration with PLCs, BMS, and automotive test systems.
Features
- Bidirectional CAN FD (up to 5 Mbps) to Ethernet (10/100 Mbps) protocol conversion.
- Supports five flexible data conversion modes including transparent and protocol conversion.
- Industrial-grade design with wide 9-36V DC input and -40°C to +85°C operating temperature.

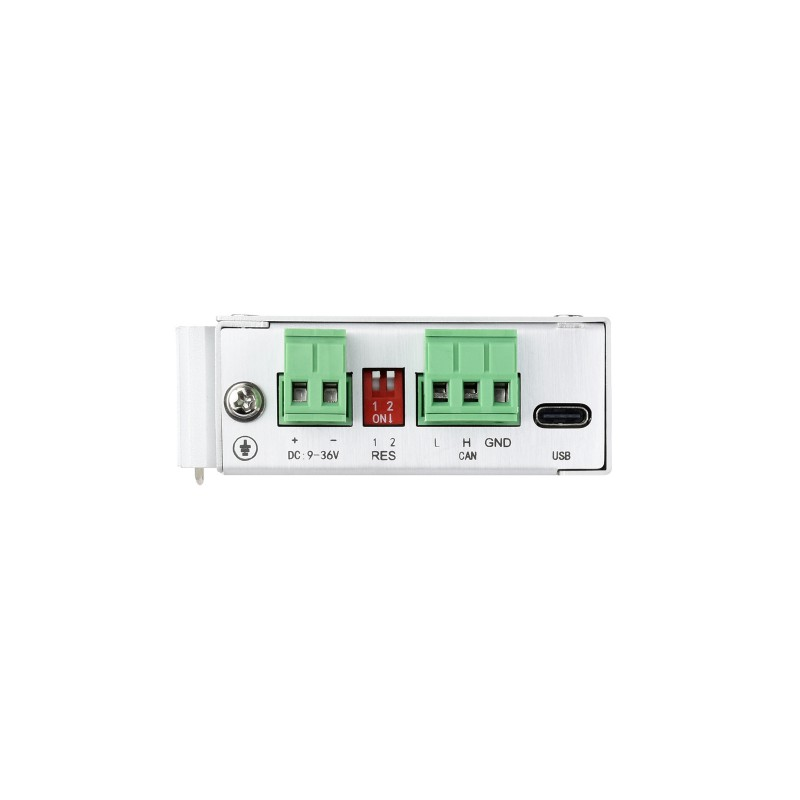

- Features selectable 120 Ω terminal resistors and DIN-rail mountable aluminium enclosure.
- Provides ESD protection (8kV air, 6kV contact) for reliable operation in harsh environments.
Out of stock
The Waveshare CAN FD Protocol Converter is a high-performance industrial communication module that bridges CAN bus networks with Ethernet infrastructure. It utilizes advanced protocol conversion logic to handle both high-speed CAN FD (up to 5 Mbps data rate) and legacy CAN 2.0A/2.0B frames, enabling seamless data exchange between embedded controllers, sensors, and supervisory systems over standard TCP/IP networks.

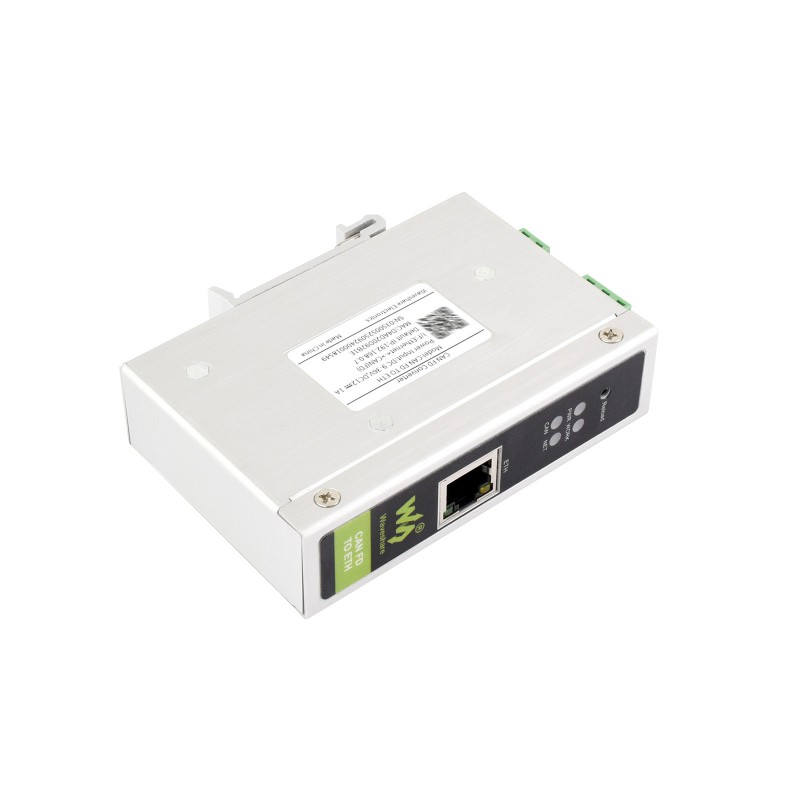

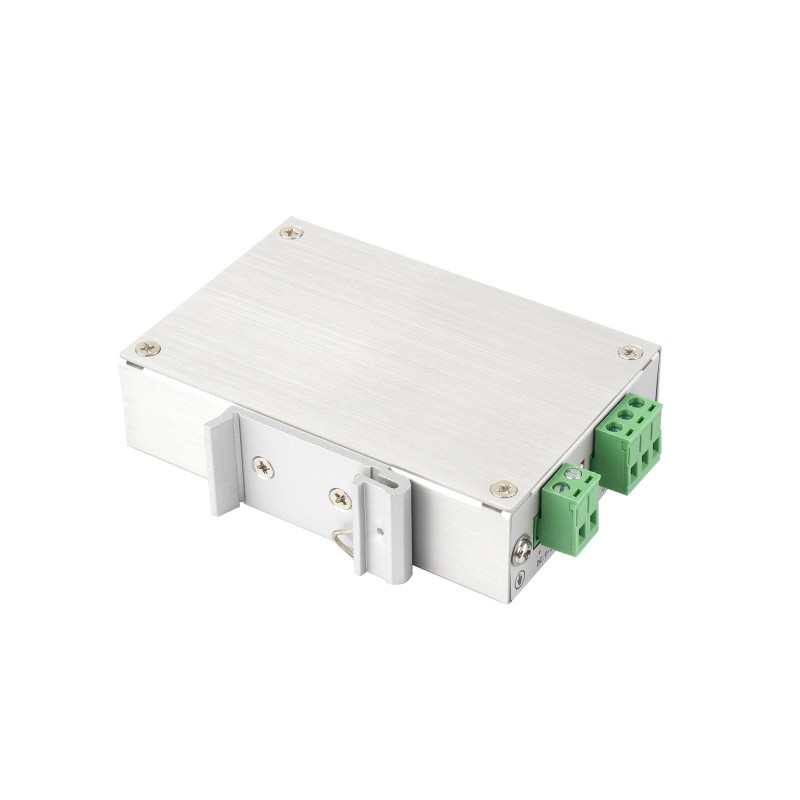

Housed in a rugged aluminium extrusion with DIN-rail mounting, the converter is built for durability in demanding settings such as factory automation and electric vehicle charging stations. Its wide operating voltage and temperature range ensure stable performance, while integrated ESD protection and selectable termination resistors simplify installation and enhance network integrity.
Additional Information
| Weight | 0.111 kg |
|---|---|
| Dimensions | 10 × 7.7 cm |
