Waveshare 5G DONGLE Module w/ Quad Antennas, USB3.1 & M.2 Key B Interface
The Waveshare 5G DONGLE Module is a USB 3.1 host adapter board with an M.2 Key B interface, designed to integrate compatible 5G/4G cellular modules (e.g., SIMCom, Quectel) into PCs, Raspberry Pi, or Jetson Nano for high-speed mobile broadband connectivity via TCP/IP, HTTP/S, and SMS protocols.
Features

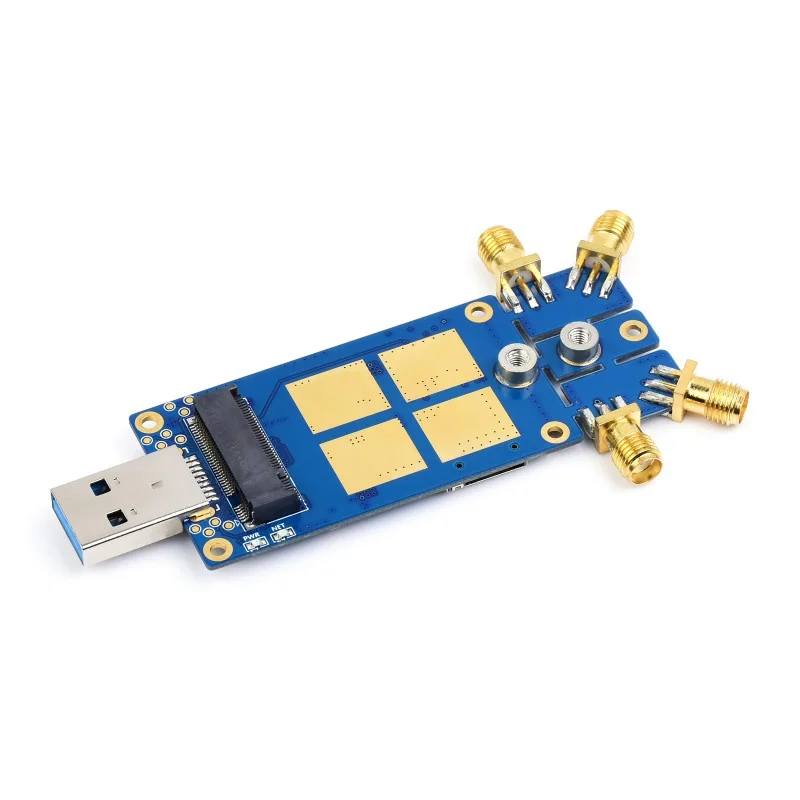

- M.2 Key B Interface for 5G/4G modules (SIM82XX, RM50XQ series) requiring user assembly.

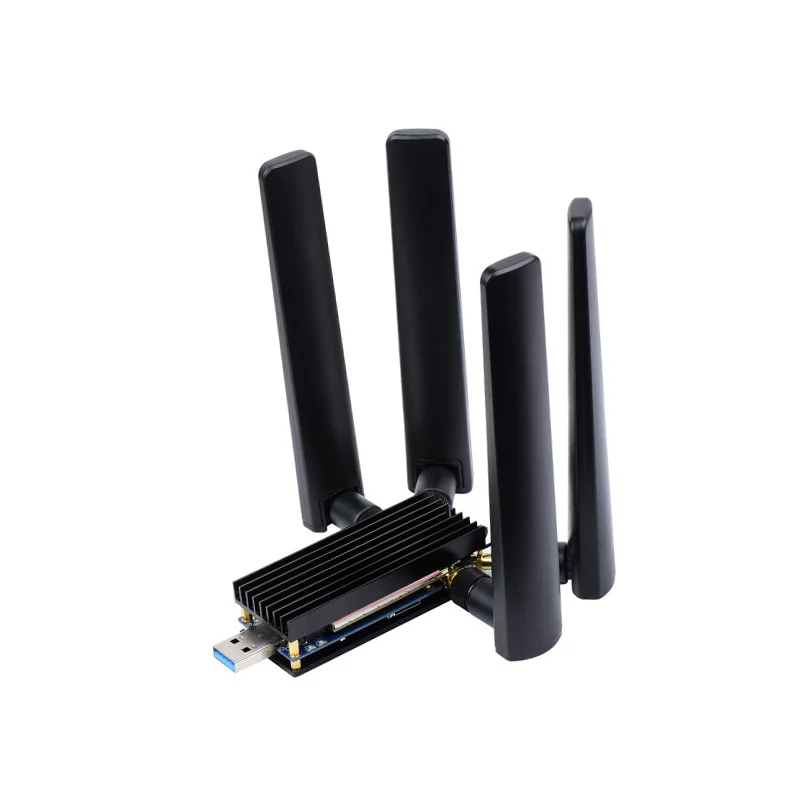

- Quad SMA antenna connectors with included antennas for robust MIMO signal reception.
- USB 3.1 Type-A host port (backward compatible with USB 2.0/1.1) for high-speed data transfer.

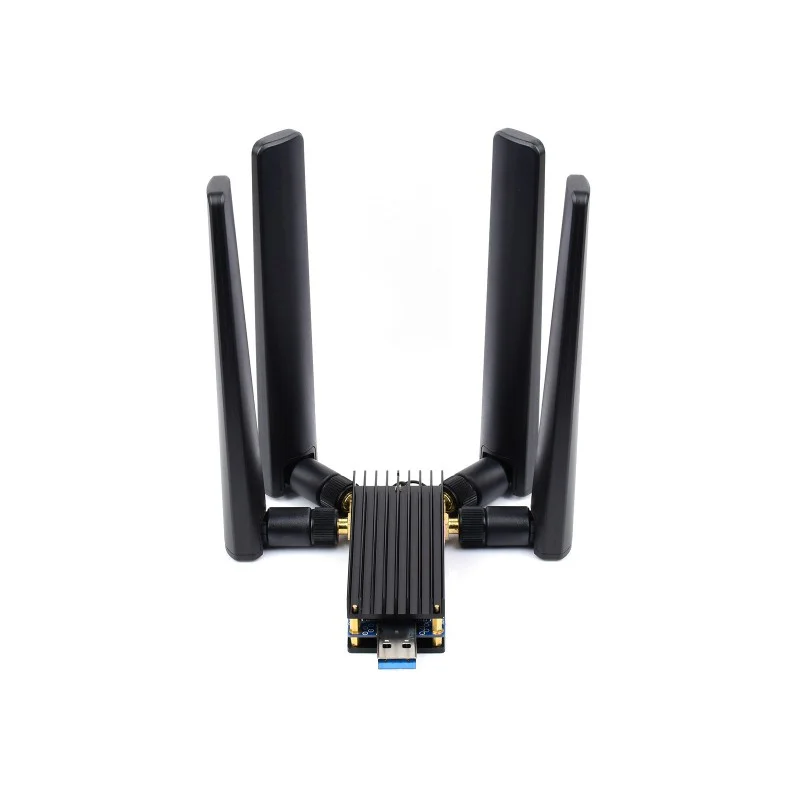

- Integrated aluminum alloy heatsink and thermal tape for effective module cooling.

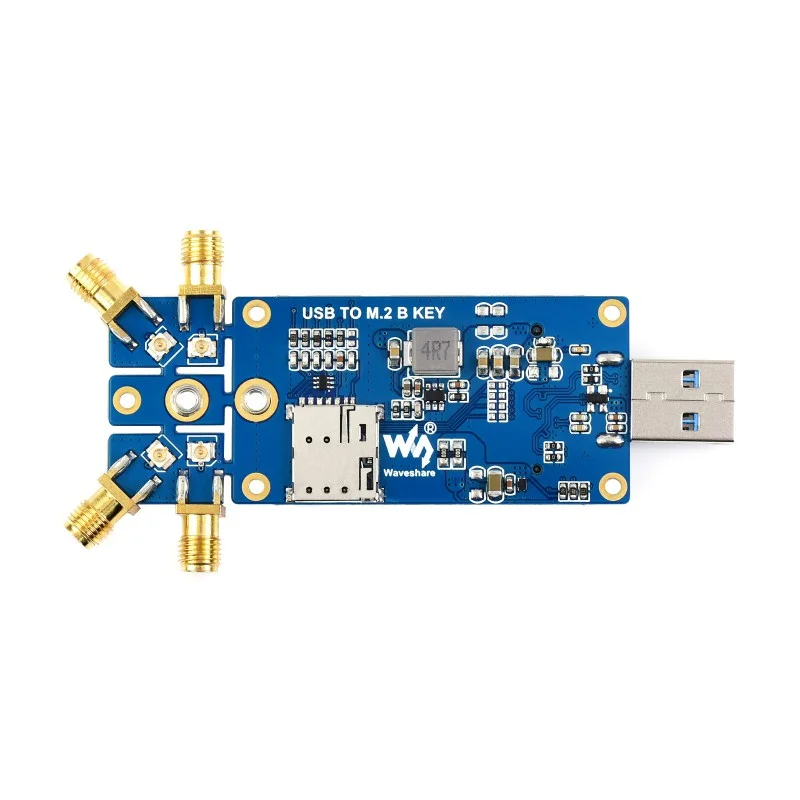

- Onboard Nano SIM slot and status LEDs for network operation monitoring.
Out of stock

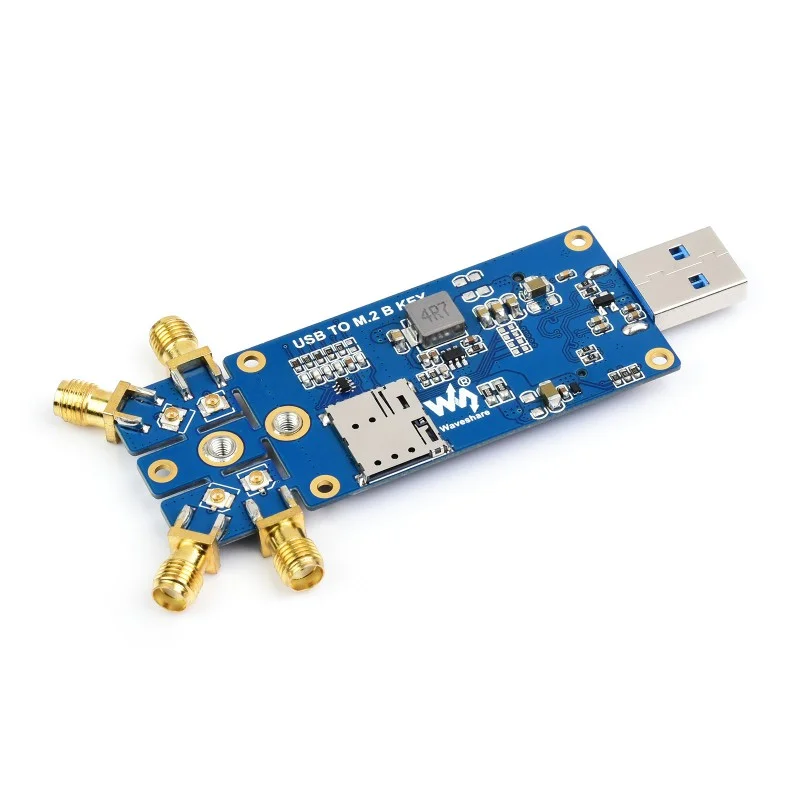

The Waveshare 5G DONGLE Module is a dedicated carrier board that transforms standard M.2 Key B form-factor 5G and 4G LTE cellular modules into a functional USB dongle. It provides the necessary power regulation, antenna routing, and USB interface bridging, enabling developers and integrators to add high-speed mobile connectivity to x86/ARM-based systems. The board features four independent SMA connectors for primary, diversity, and GNSS antenna inputs, supporting carrier aggregation and improved signal reliability in 5G deployments.
Built with a sturdy ENIG-finished PCB, the module includes a custom aluminum heatsink assembly to manage thermal output from high-power 5G modems. It supports standard dial-up protocols (RNDIS, NDIS, PPP, MBIM) for seamless network integration on Windows, Linux, and Android hosts. The package is supplied with all necessary hardware, including IPEX adapter cables and a USB extension cable, for rapid prototyping and field deployment.
Additional Information
| Weight | 0.217 kg |
|---|---|
| Dimensions | 18 × 14 × 5 cm |
