Upside Down Labs DIY Neuroscience Kit – Pro (2025 Edition) w/ BioAmp EXG Pill & Muscle BioAmp Shield v0.3
The DIY Neuroscience Kit – Pro (2025 Edition) is a comprehensive biopotential acquisition system for Arduino and other microcontroller platforms, featuring the BioAmp EXG Pill for configurable ECG, EMG, EOG, and EEG measurement and the Muscle BioAmp Shield v0.3 for dedicated EMG signal conditioning.
Features

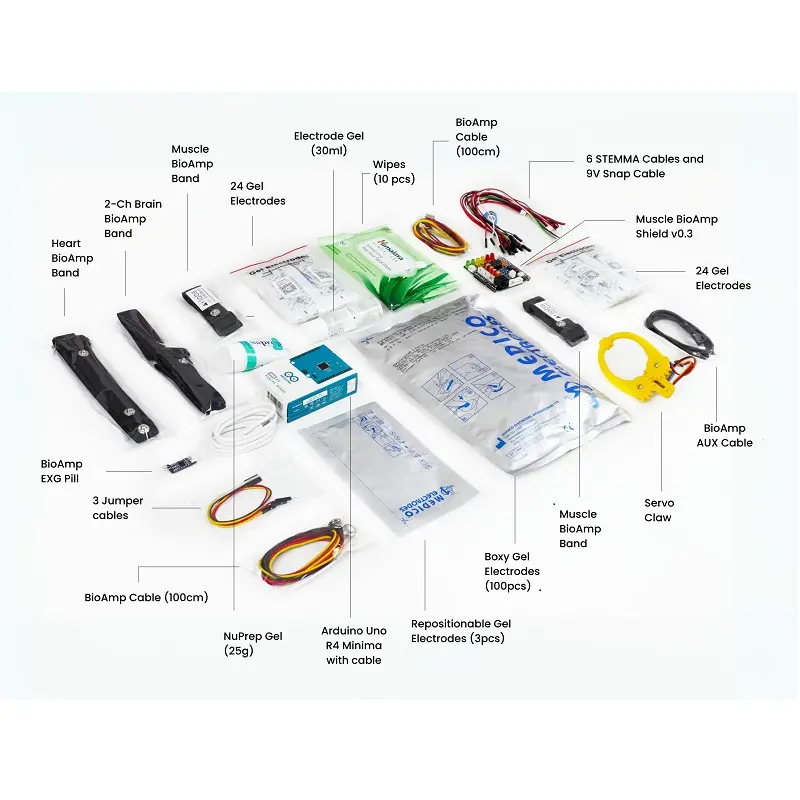

- Dual-Sensor Kit: Includes BioAmp EXG Pill (configurable for ECG/EMG/EOG/EEG) and Muscle BioAmp Shield v0.3 (dedicated EMG).
- High-Impedance Input: BioAmp EXG Pill offers 10^12 Ω input impedance; Shield provides 10^11 Ω for excellent signal integrity.
- Flexible Operation: Both modules operate from 3.3V or 5V logic, compatible with Arduino UNO R4, other ADCs, and development boards.
- Open-Source Platform: Full hardware schematics and software libraries available for custom HCI/BCI project development.
- Multi-Channel Capability: Use sensors independently or combine for a 2-channel EXG acquisition system.
Out of stock

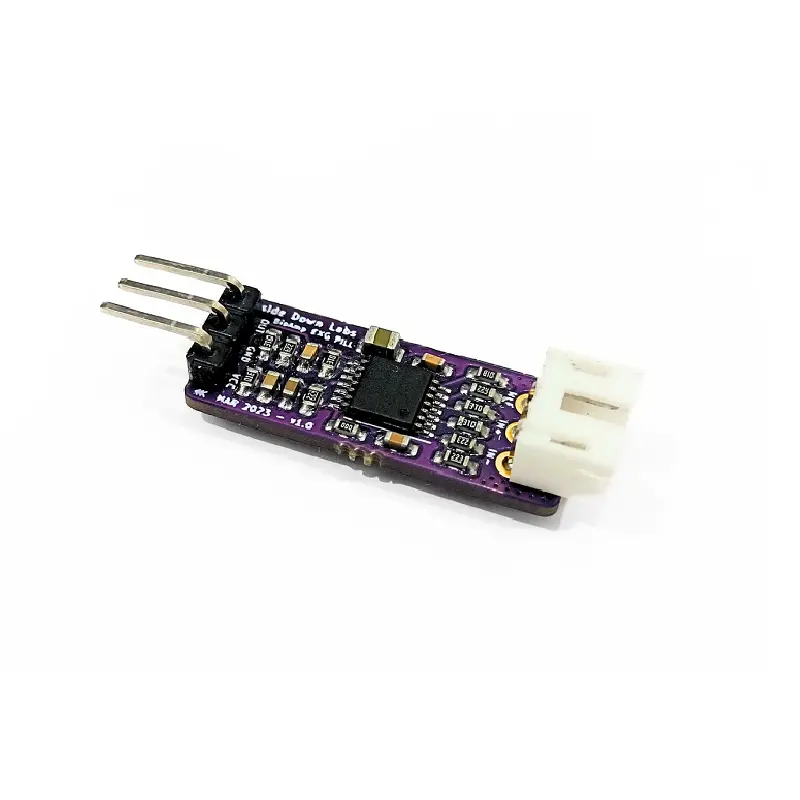

The DIY Neuroscience Kit – Pro provides a professional-grade entry point into electrophysiological signal acquisition. The BioAmp EXG Pill is a versatile, ultra-high-impedance front-end amplifier module configurable via onboard jumpers for recording various biopotentials, including low-amplitude EEG and EOG signals. Its default bandpass filter is optimized for neural and ocular potentials.

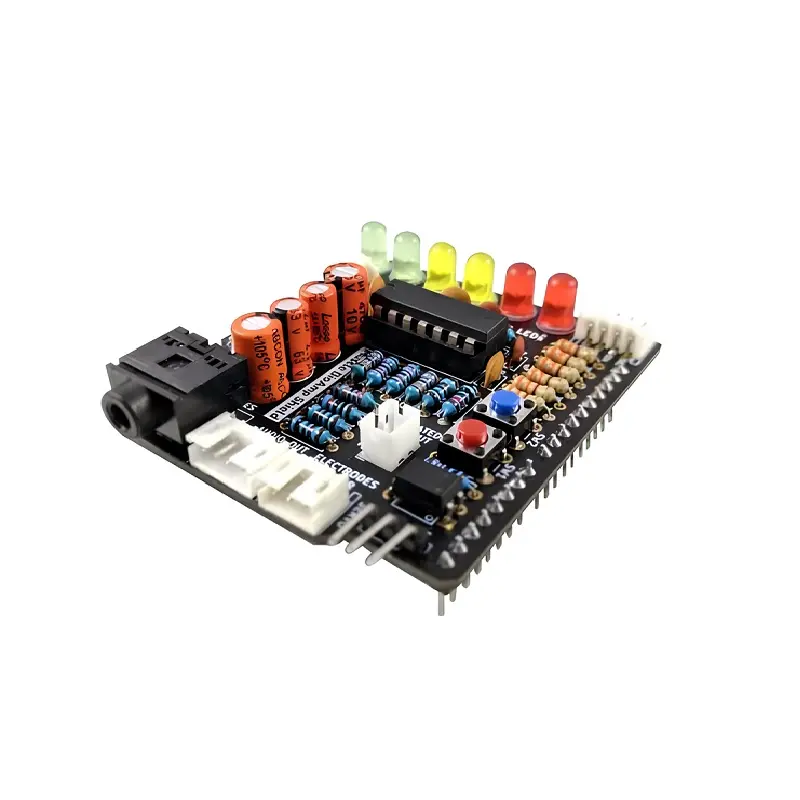

The Muscle BioAmp Shield v0.3 is a dedicated, fixed-gain (x2420) EMG signal conditioner designed to plug directly into an Arduino UNO form factor. It features a bandpass filter (72–720 Hz) tailored for surface electromyography, providing clean, amplified muscle activity signals ready for ADC conversion. Together, these open-source tools enable detailed experimentation in human-computer interaction (HCI) and brain-computer interface (BCI) applications.
Additional Information
| Weight | 0.84 kg |
|---|---|
| Dimensions | 31 × 20 × 9 cm |
