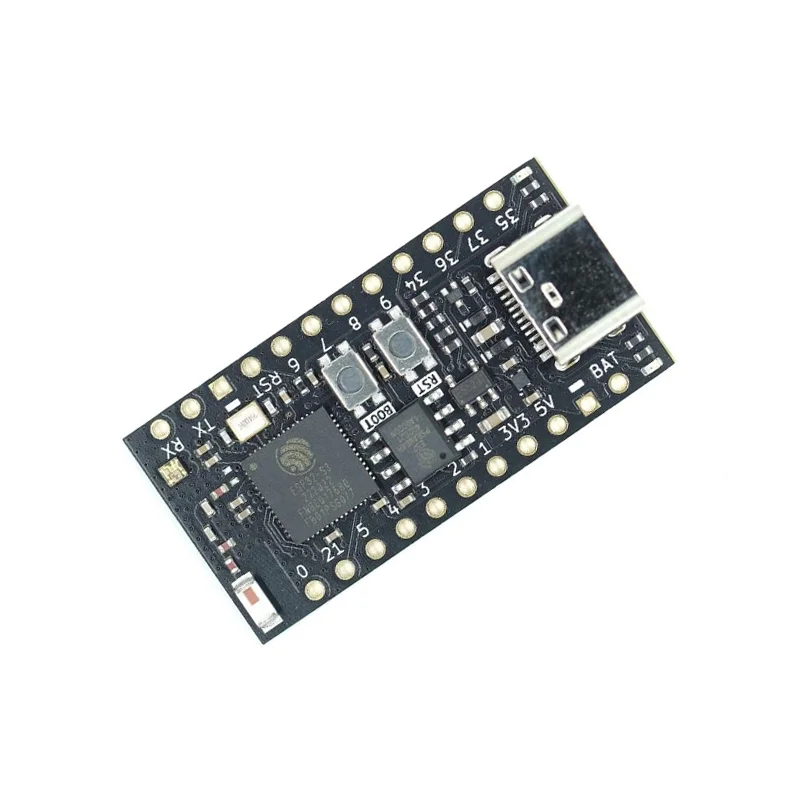

Unexpected Maker TinyS3 ESP32-S3 Dev Board

You can program the TinyS3 using the Arduino IDE with the ESP32 board package, Espressif's official ESP-IDF framework, or MicroPython. Connect the board via its USB-C port to your computer. In the Arduino IDE, select 'ESP32S3 Dev Module' as the board. For ESP-IDF, use the idf.py command-line tools to build and flash your application. The board uses a built-in USB-to-serial chip for seamless communication and firmware uploading without external programmers.

The TinyS3 is powered via its USB-C port at 5V. The onboard regulator provides 3.3V for the core and I/O pins. Operating current varies with Wi-Fi/Bluetooth activity; active transmission can reach ~200mA, while deep sleep modes can drop consumption to microamps (e.g., 10µA). For battery operation, connect a 3.7V LiPo to the appropriate pins and utilize the ESP32-S3's ultra-low-power coprocessor and deep sleep functions to maximize battery life in field deployments.

The TinyS3 features an integrated onboard PCB antenna optimized for compactness. For projects requiring extended range or specific directional coverage, you can connect an external 2.4GHz antenna via a compatible connector if your specific module variant supports it. Typical range with the onboard antenna is up to 100 meters in open space for Wi-Fi, depending on environmental factors. For BLE, the reliable connection range is approximately 30-50 meters. Ensure proper impedance matching (50Ω) for any external antenna.
