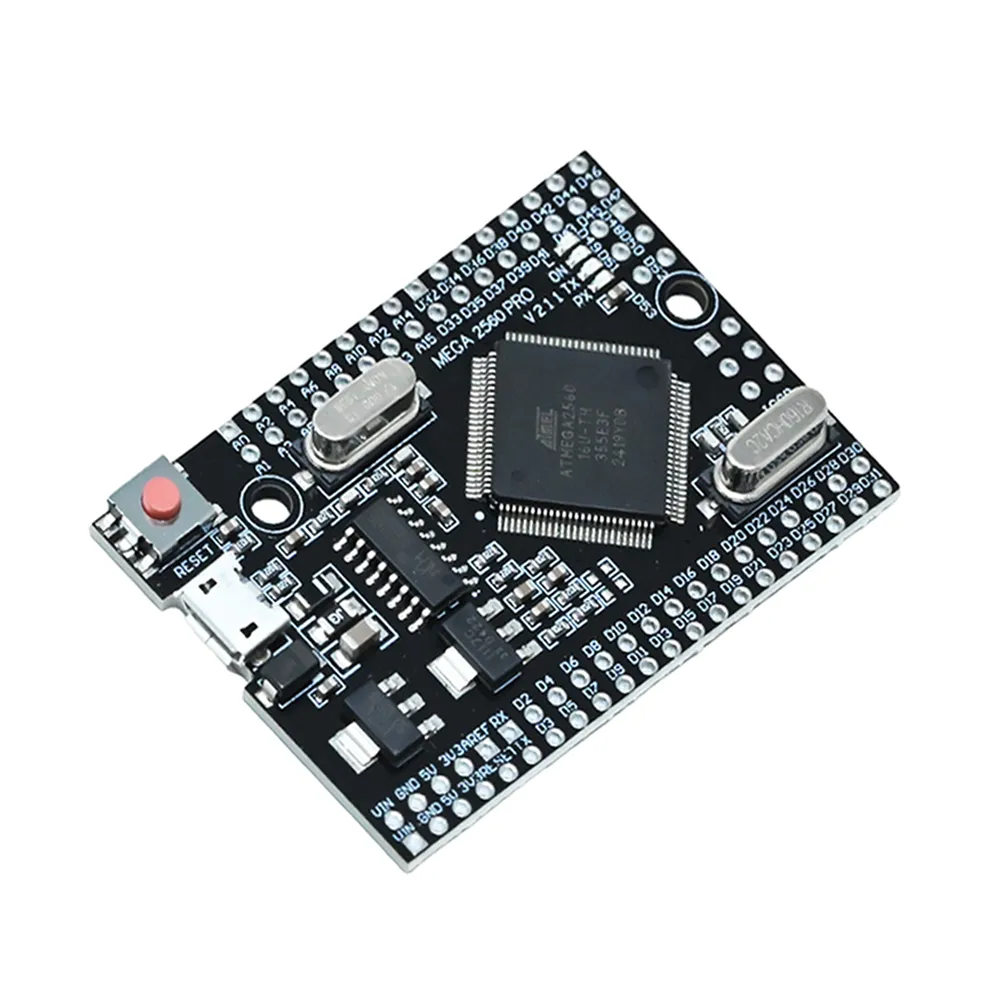

Mega2560 Pro ATMEGA2560-16AU CH340G Development Board

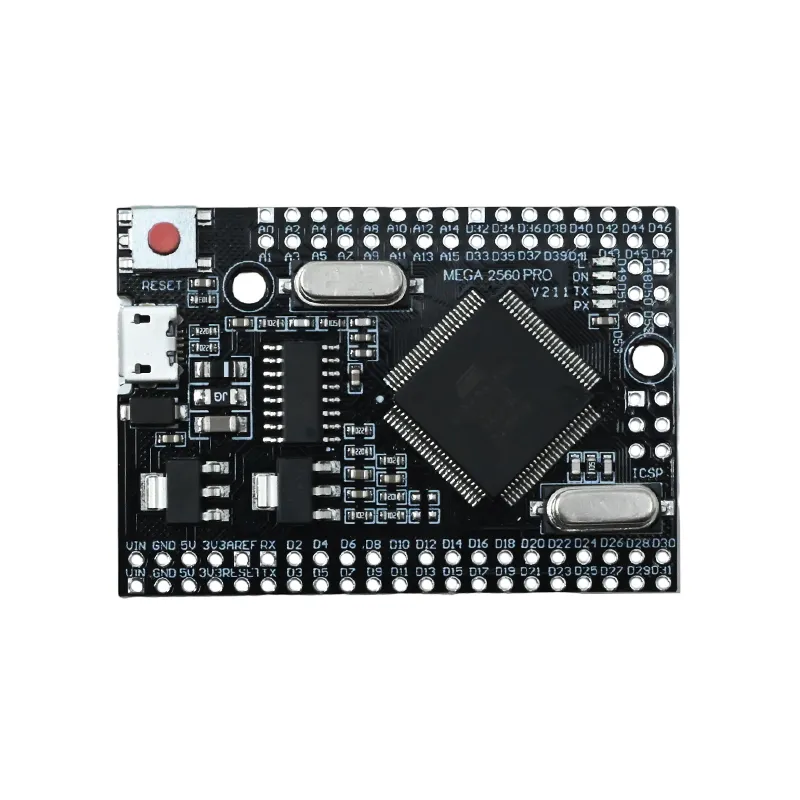

Mega2560 Pro ATMEGA2560-16AU CH340G Development Board - Image 2

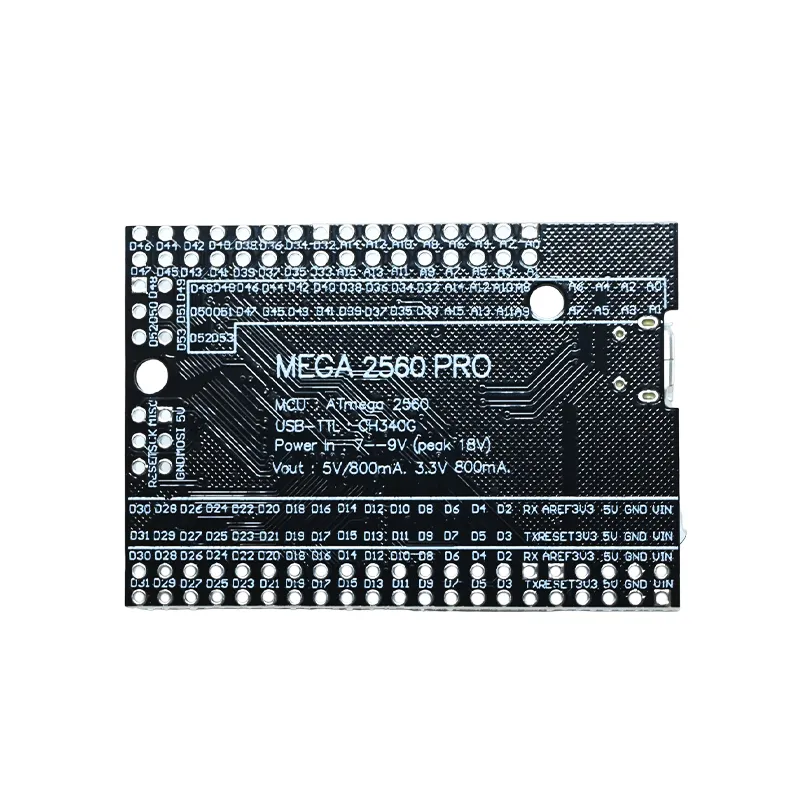

Mega2560 Pro ATMEGA2560-16AU CH340G Development Board - Image 3
Mega2560 Pro ATMEGA2560-16AU CH340G Development Board - Image 4
SKU: SBCD-0318
📋 GST Invoice Available

Mega2560 Pro ATMEGA2560-16AU CH340G Development Board

₹869.00 (Inclusive of all taxes)
Out of Stock

The Mega2560 Pro Development Board offers a compact and efficient solution for projects requiring the ATmega2560 microcontroller. Fully compatible with the Mega 2560, it provides stable performance and flexible power options via Micro USB.

Features

  • Compact development board based on the ATmega2560 microcontroller.
  • Fully compatible with the standard Arduino Mega 2560.
  • Integrated CH340G USB-UART interface for stable data exchange.
  • Conveniently powered directly via Micro USB connector.
  • Provides high current output: 800mA on both 5V and 3.3V rails.

Out of stock

Description

The Mega2560 Pro Embed CH340G / ATmega2560 board integrates the powerful ATmega2560 microcontroller and a reliable CH340G USB-UART interface chip into a compact form factor. Designed for seamless integration into prototyping boards, this board delivers functionalities identical to the larger Mega 2560 while maintaining exceptional stability.

Featuring an original ATmega2560 chip and a 16 MHz high-quality quartz resonator, the board ensures precise timing and reliable operation. The CH340G chip facilitates robust data exchange, requiring a driver installation for optimal performance at 12Mhz. Powering the board is flexible, achievable directly through the Micro USB connector or via its power pins, with an onboard voltage regulator supporting input voltages from 6V to 9V DC, peaking at 18V.

Key Features

  • Based on the high-performance ATmega2560 microcontroller.
  • Provides full compatibility with Arduino Mega 2560 sketches and libraries.
  • Onboard CH340G chip acts as a stable USB-UART converter for communication.
  • Supports direct power input through a Micro USB connector.
  • Integrated voltage regulator (LDO) accepts 6-9V DC input (up to 18V peak).
  • Offers substantial power output of approximately 800mA on both 5V and 3.3V rails.
  • Utilizes a 16 MHz high-quality quartz resonator for precise clocking.
  • Features 54 digital I/O pins (15 with PWM) and 16 analog input pins.

Applications

  • General-purpose embedded project development.
  • Prototyping complex electronic circuits.
  • Educational platforms for microcontroller programming.
  • Robotics control and automation systems.
  • IoT device integration requiring extensive I/O.

Technical Specifications

Board TypeMega
Chip TypeATmega2560
USB-UART ChipCH340G
Operating Voltage5V DC
Recommended Input Voltage6-9V DC
Input Voltage Limit12V DC (peak 18V)
Digital I/O Pins54 (15 PWM output)
Analog Input Pins16
DC Current for 5V Pin800 mA
DC Current for 3.3V Pin800 mA
Flash Memory256 KB (8 KB used by bootloader)
SRAM8 KB
EEPROM4 KB
Clock Speed16 MHz
Built-in LEDPin 13

Frequently Asked Questions

What microcontroller does the Mega2560 Pro board utilize?

The Mega2560 Pro board is built around the Atmel ATmega2560 microcontroller, which provides a robust platform for complex embedded projects. It also integrates a CH340G chip for reliable USB-UART communication, facilitating easy programming and serial interaction with a host computer.

How is the Mega2560 Pro powered, and what are its power output capabilities?

This board can be powered directly via its Micro USB connector or through its power pins. It features an LDO voltage regulator that accepts 6V to 9V DC input (up to 18V peak). The board can supply up to 800mA on both its 5V and 3.3V rails for external components.

Is the Mega2560 Pro compatible with the standard Arduino IDE?

Yes, the Mega2560 Pro is fully compatible with the Arduino IDE, allowing users to upload sketches designed for the Arduino Mega 2560. Users may need to install the appropriate drivers for the CH340G USB-UART chip on their operating system to enable communication and programming.

What are the memory specifications of the ATmega2560 on this board?

The ATmega2560 microcontroller features 256 KB of Flash memory, of which 8 KB is pre-used by the bootloader. It also includes 8 KB of SRAM for dynamic data and 4 KB of EEPROM for storing non-volatile configuration data. This provides ample memory for diverse embedded applications.

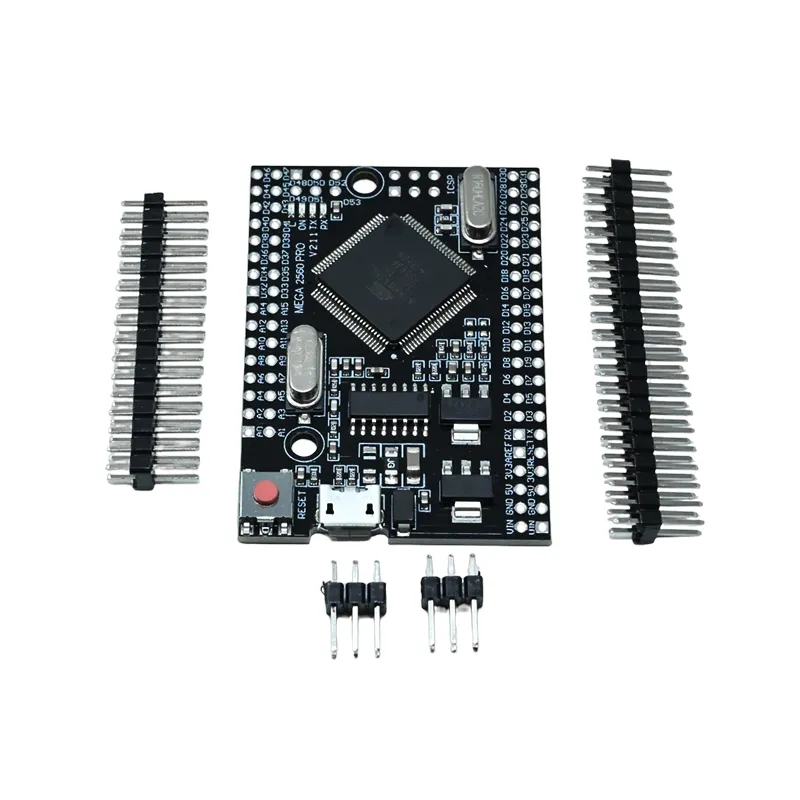

Package Includes

  • 1 x Mega2560 Pro ATMEGA2560-16AU USB CH340G Development Board
  • 1 x 21 Pin Headers
  • 1 x 16 Pin Headers
  • 1 x 3 Pin Headers

Additional Information

Weight 0.015 kg
Dimensions 5.4 × 4 × 1.8 cm
