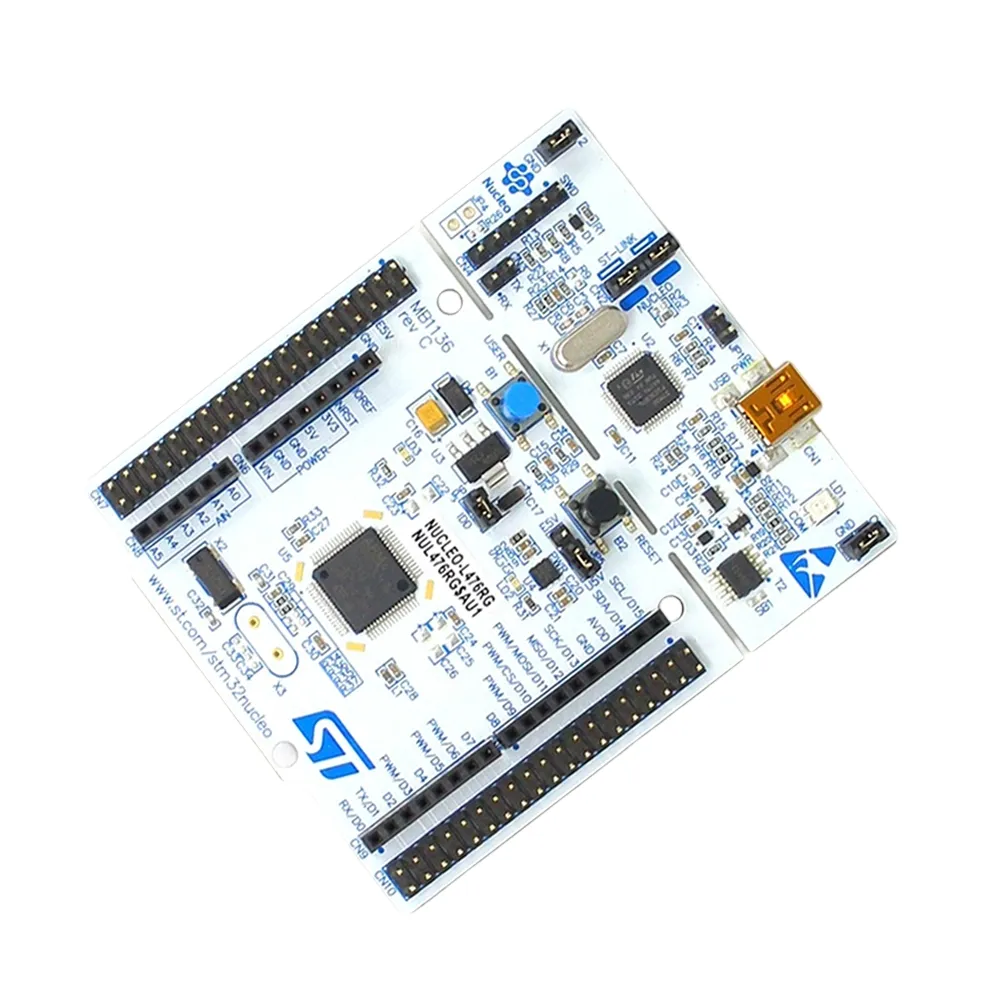

NUCLEO-L476RG Dev Board, STM32L476RG MCU, ST-LINK/V2-1

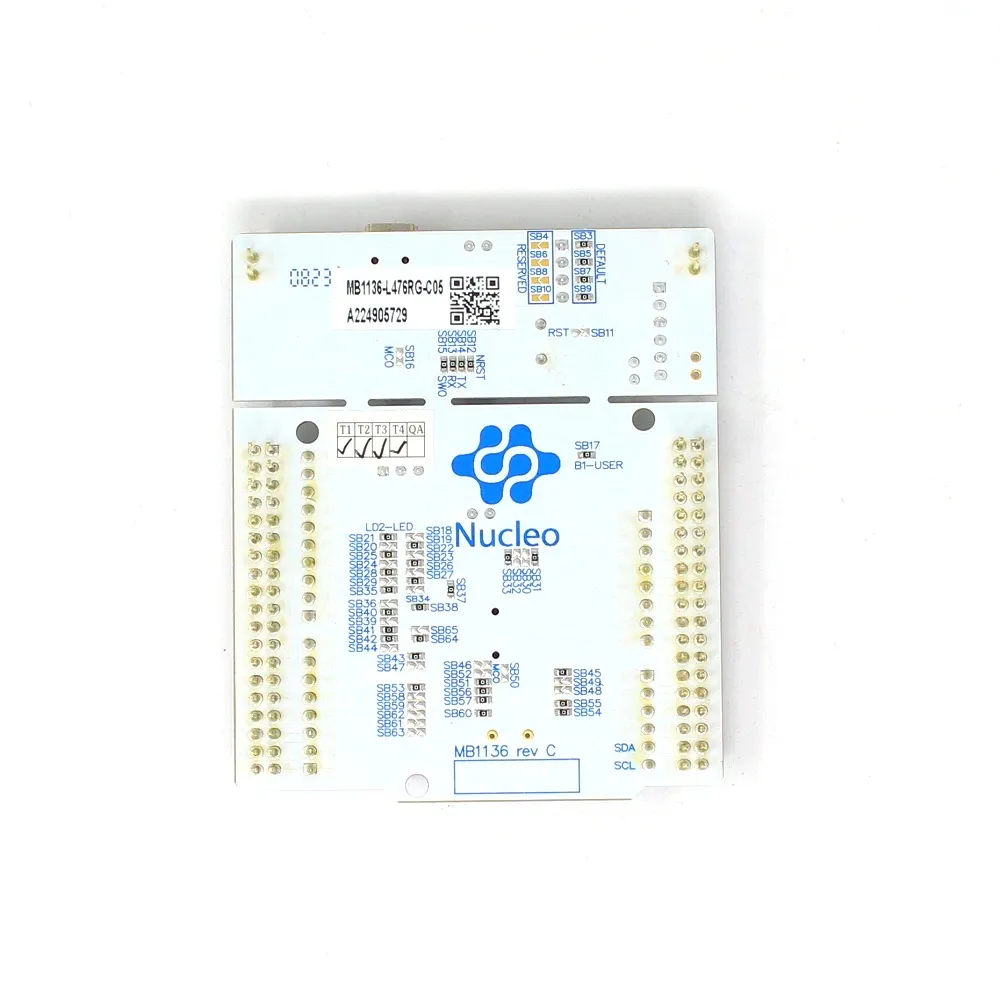

NUCLEO-L476RG Dev Board, STM32L476RG MCU, ST-LINK/V2-1 - Image 2
SKU: SBCD-0286
📋 GST Invoice Available

NUCLEO-L476RG Dev Board, STM32L476RG MCU, ST-LINK/V2-1

₹2,419.00 (Inclusive of all taxes)
Out of Stock

The NUCLEO-L476RG development board provides an accessible platform for prototyping with the ultra-low-power STM32L476RG microcontroller, featuring an integrated ST-LINK/V2-1 debugger/programmer. It offers versatile expansion through Arduino Uno V3 and ST Morpho headers, enabling rapid development of embedded applications.

Features

  • Features STM32L476RG ultra-low-power ARM Cortex-M4 microcontroller.
  • Integrated ST-LINK/V2-1 debugger/programmer for streamlined development.
  • Supports Arduino Uno V3 and ST Morpho header connectivity for expansion.
  • Flexible power supply options via ST-LINK USB VBUS or external sources.
  • Includes STM32 comprehensive free software libraries and examples.

Out of stock

Description

The STM32 Nucleo-64 NUCLEO-L476RG board offers an affordable and adaptable platform for developers to explore new concepts and build prototypes utilizing the STM32L476RG microcontroller’s diverse performance and power consumption features. This board is designed to accelerate embedded development cycles, especially for applications demanding low-power operation.

Functionality can be easily expanded through its Arduino Uno V3 connectivity support and ST Morpho headers, providing access to a wide selection of specialized shields and all STM32 microcontroller I/Os. The board integrates an ST-LINK debugger/programmer, eliminating the need for a separate probe, and comes with comprehensive free software libraries and examples available via the STM32Cube MCU Package.

Key Features

  • Small form factor for easy integration into custom projects.
  • Advanced security features inherent to the STM32L476RG MCU.
  • Ultra-low voltage and low power consumption modes for energy-efficient designs.
  • Enhanced user interface capabilities for diverse application requirements.
  • Support for external SMPS to optimize Vcore logic supply on compatible configurations.
  • 24 MHz or 48 MHz HSE (High Speed External) oscillator for precise timing.

Applications

  • IoT node and sensor network development
  • Low-power portable and battery-powered devices
  • Rapid prototyping for embedded control systems
  • Industrial automation and human-machine interface (HMI) applications
  • Wearable technology and smart device development

Technical Specifications

Item TypeDevelopment Board
Chip TypeSTM32L476RG (ARM Cortex-M4)
Power Supply VoltageST-LINK USB VBUS or external sources
DebuggerOn-board ST-LINK debugger/programmer with USB re-enumeration
USB CapabilityMass storage, Virtual COM port, Debug port
Oscillator32.768 kHz crystal oscillator, 24 MHz or 48 MHz HSE
ConnectivityArduino Uno V3, ST Morpho headers

Frequently Asked Questions

What is the main microcontroller on the NUCLEO-L476RG board?

The NUCLEO-L476RG features the STM32L476RG microcontroller, an ultra-low-power ARM Cortex-M4 MCU. It integrates a floating-point unit, DSP instructions, and a memory protection unit, making it suitable for a wide range of embedded applications requiring efficiency and performance.

Does this board include an on-board debugger?

Yes, the NUCLEO-L476RG board integrates an ST-LINK/V2-1 debugger/programmer. This allows for convenient programming, debugging, and virtual COM port communication directly over a single USB connection, eliminating the need for an external debug probe.

Is the NUCLEO-L476RG compatible with Arduino shields?

Absolutely. The board supports Arduino Uno V3 connectivity, allowing for easy expansion with a vast ecosystem of Arduino-compatible shields. Additionally, it features ST Morpho headers, providing access to all STM32 microcontroller I/Os for more flexible prototyping.

What development environments are supported for the STM32L476RG?

The STM32L476RG is well-supported by various development environments including STM32CubeIDE, Keil MDK-ARM, IAR Embedded Workbench, and GCC-based toolchains. STM32CubeMX facilitates configuration, and comprehensive free software libraries are available with the STM32Cube MCU Package.

Package Includes

  • 1 x STMicroelectronics NUCLEO-L476RG Development Board

Additional Information

Weight 0.07 kg
Dimensions 12 × 10 × 5 cm

Related Products

Out of Stock

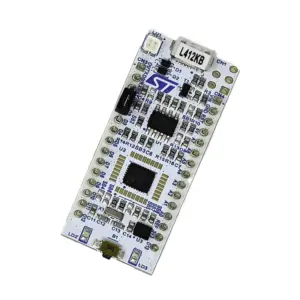

NUCLEO-L412KB Nucleo-32 Dev Board STM32L412KB MCU

1,559.00
Learn More
Out of Stock

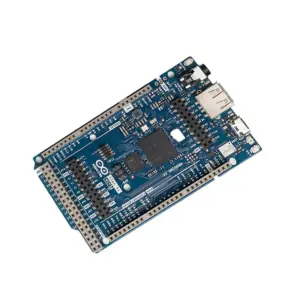

Arduino GIGA Display Bundle (AKX00075)

13,029.00
Learn More
Out of Stock

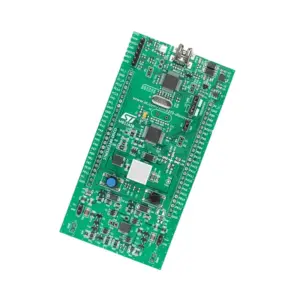

STM32F3348-DISCO Development Board w/ STM32F334C8T6 MCU

2,619.00
Learn More
Out of Stock

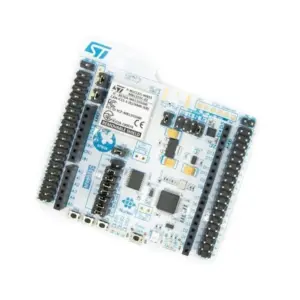

NUCLEO-WB55RG Nucleo-64 Dev Board STM32WB55RGV6U

6,719.00
Learn More
Out of Stock

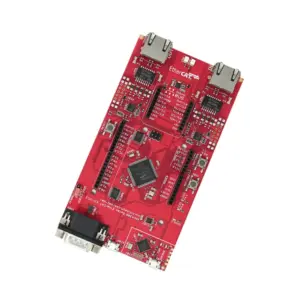

Infineon Technologies XMC4300 EtherCAT 32-bit Evaluation Board

14,989.00
Learn More
Out of Stock

NXP Semiconductors FRDM-K66F Kinetis K66 ARM Cortex-M4 Dev Board w/ USB & Audio

13,649.00
Learn More
Out of Stock

Arduino UNO R4 Minima with SmartElex Bharat Explorer Shield

1,659.00
Learn More
Out of Stock

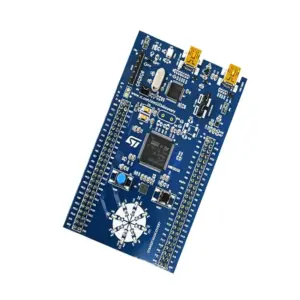

STMicroelectronics STM32F3DISCOVERY Development Board

1,941.00
Learn More
Out of Stock

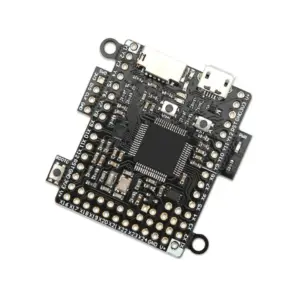

PYboard PYB1.1 STM32F405 ARM Cortex-M4 Board

979.00
Learn More
Out of Stock

Seeed Studio SoM - STM32MP157C Cortex-A7 + Cortex-M4 Module

5,999.00
Learn More
Out of Stock

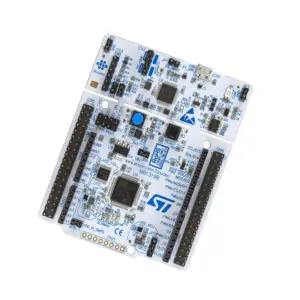

STM32 Nucleo-64 L433RC-P Dev Board w/ Arduino Uno Headers

2,959.00
Learn More
Out of Stock

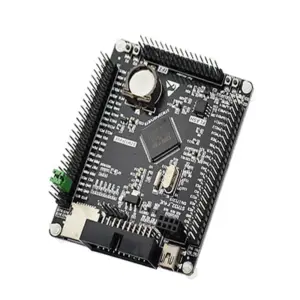

STM32F407VET6 Development Board - Cortex-M4 FPU DSP
