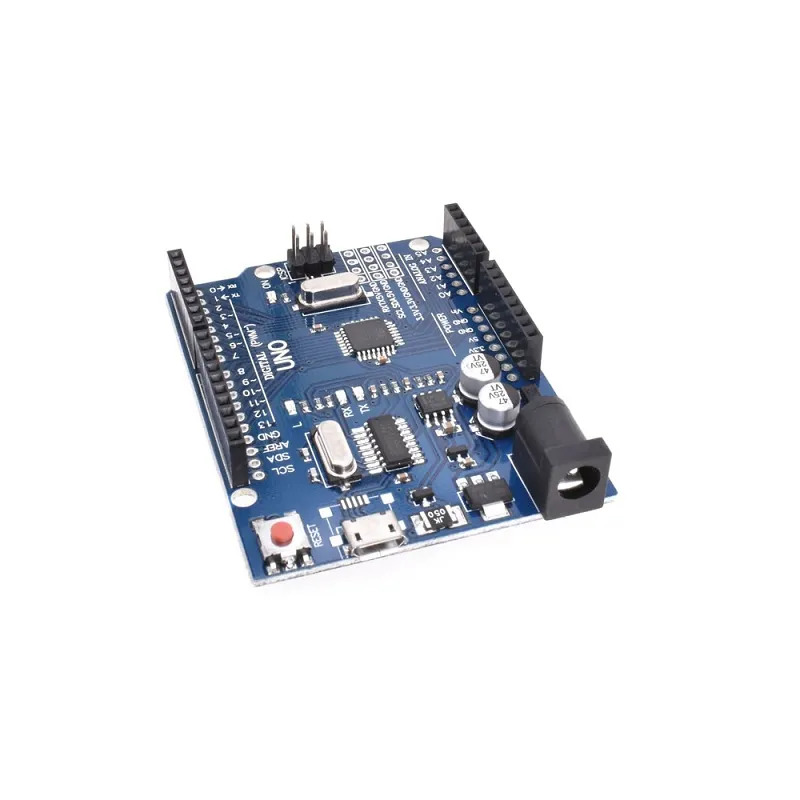

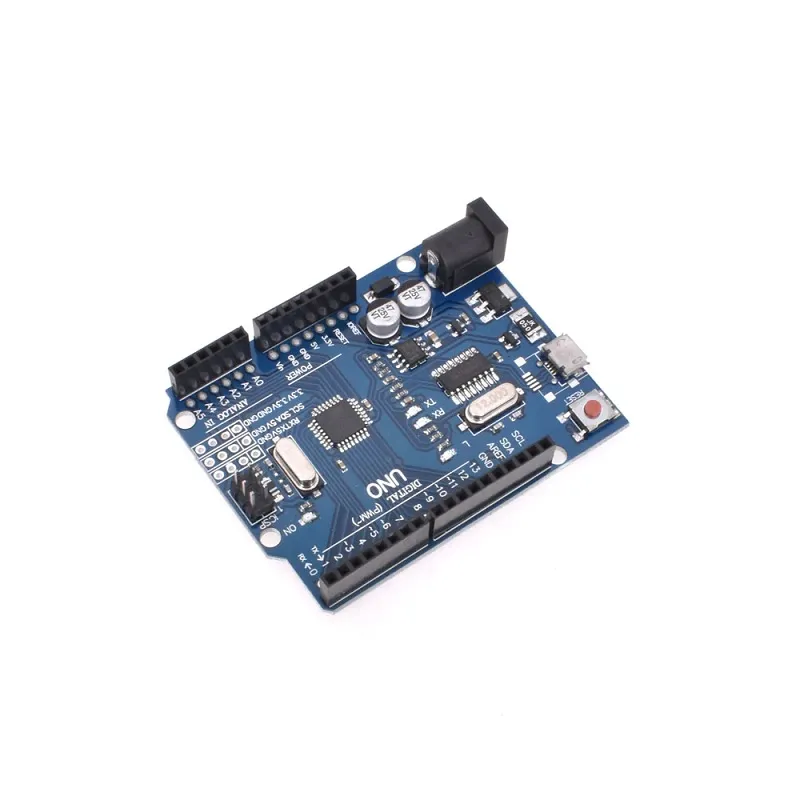

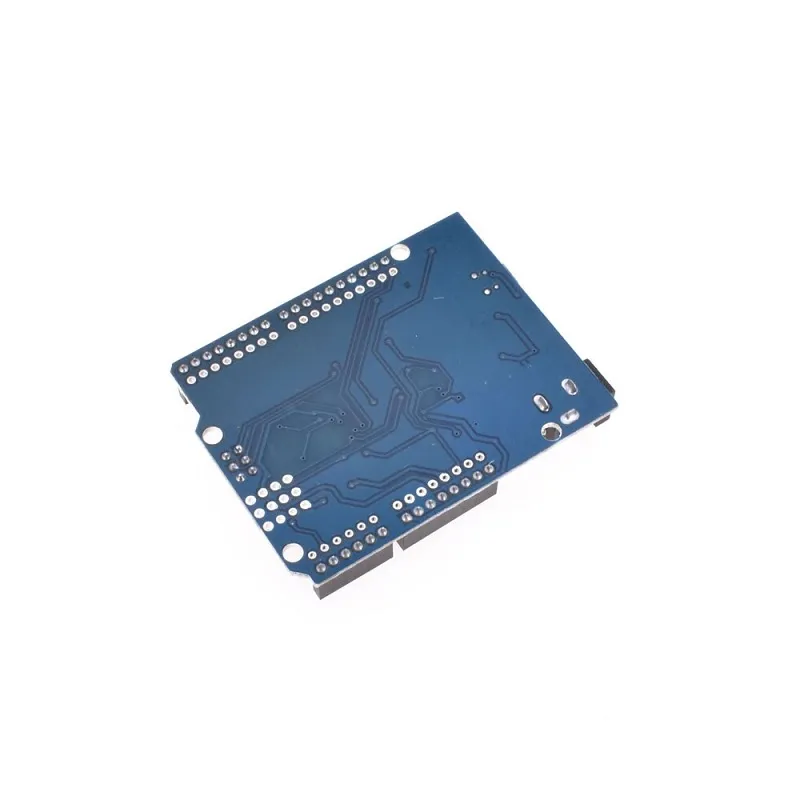

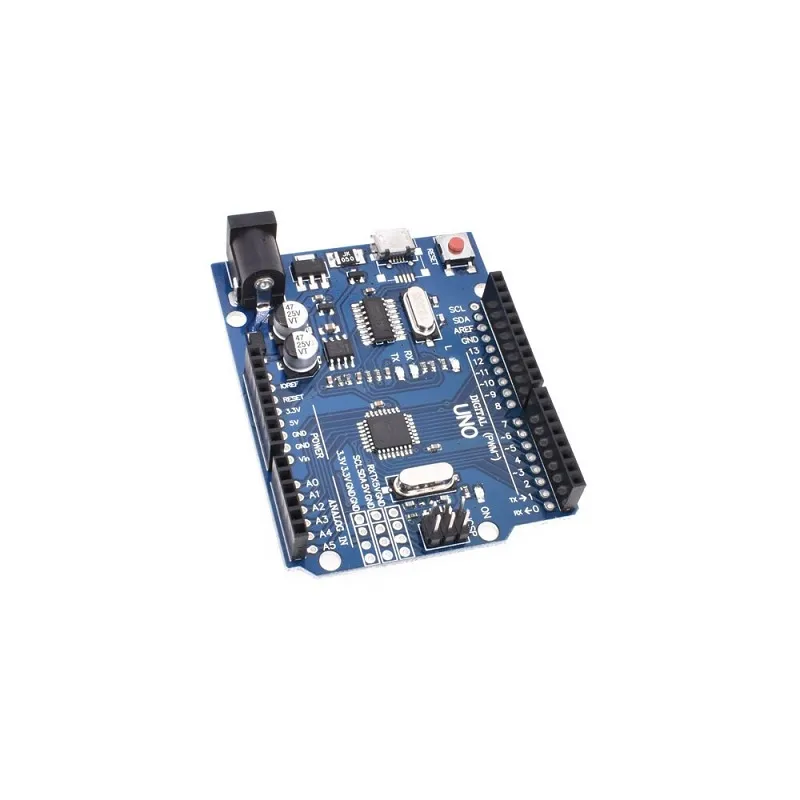

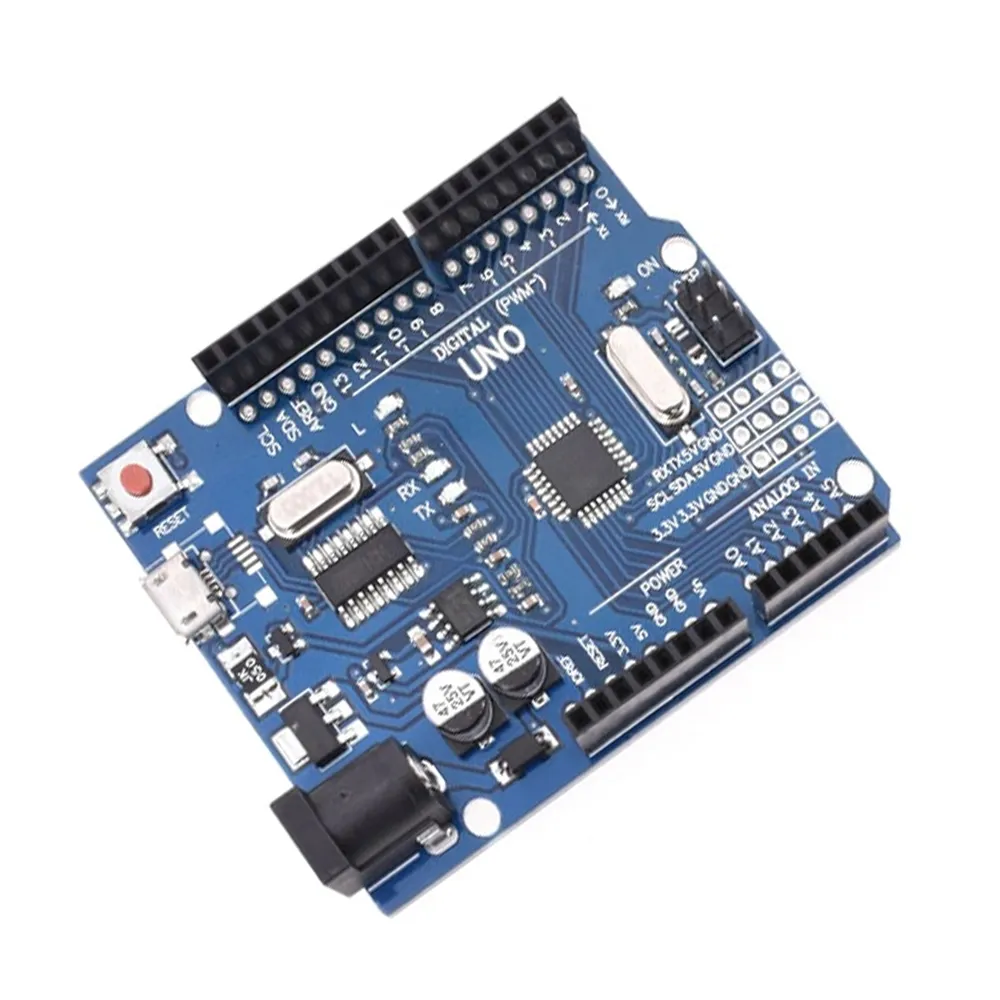

Uno R3 CH340G ATmega328p Development Board w/ Micro-USB

The CH340G USB-to-Serial chip often requires a specific driver, especially on Windows and older macOS versions. Typically, plugging the board in will prompt automatic installation. If not, the driver can be downloaded from popular microcontroller vendor websites or directly from CH340G manufacturer sites. Once installed, the board will appear as a COM port in your system's device manager, ready for use with the Arduino IDE.

This Uno R3 compatible board offers flexible power options. It can be powered directly via the Micro-USB port from your computer or a 5V USB power adapter. Alternatively, you can use an external DC power supply connected to the onboard DC jack, which accepts a recommended input voltage of 7-12V, with limits between 5V and 20V. This versatility supports various project requirements.

Yes, absolutely. Despite using the CH340G for USB communication, the core ATmega328P microcontroller and its pinout remain identical to the official Arduino Uno R3. This ensures full compatibility with all Arduino sketches, libraries, and most shields designed for the R3 form factor. You can seamlessly port your existing projects or develop new ones using the familiar Arduino IDE and ecosystem.

The primary difference lies in the USB-to-serial converter chip. The CH340G is a cost-effective alternative to the ATmega16U2. Functionally, both chips perform the same task of converting USB data to serial data for the ATmega328P. For the end-user, the main distinction is often just the driver installation process. Once drivers are in place, both versions offer identical programming and serial communication capabilities within the Arduino IDE environment.
