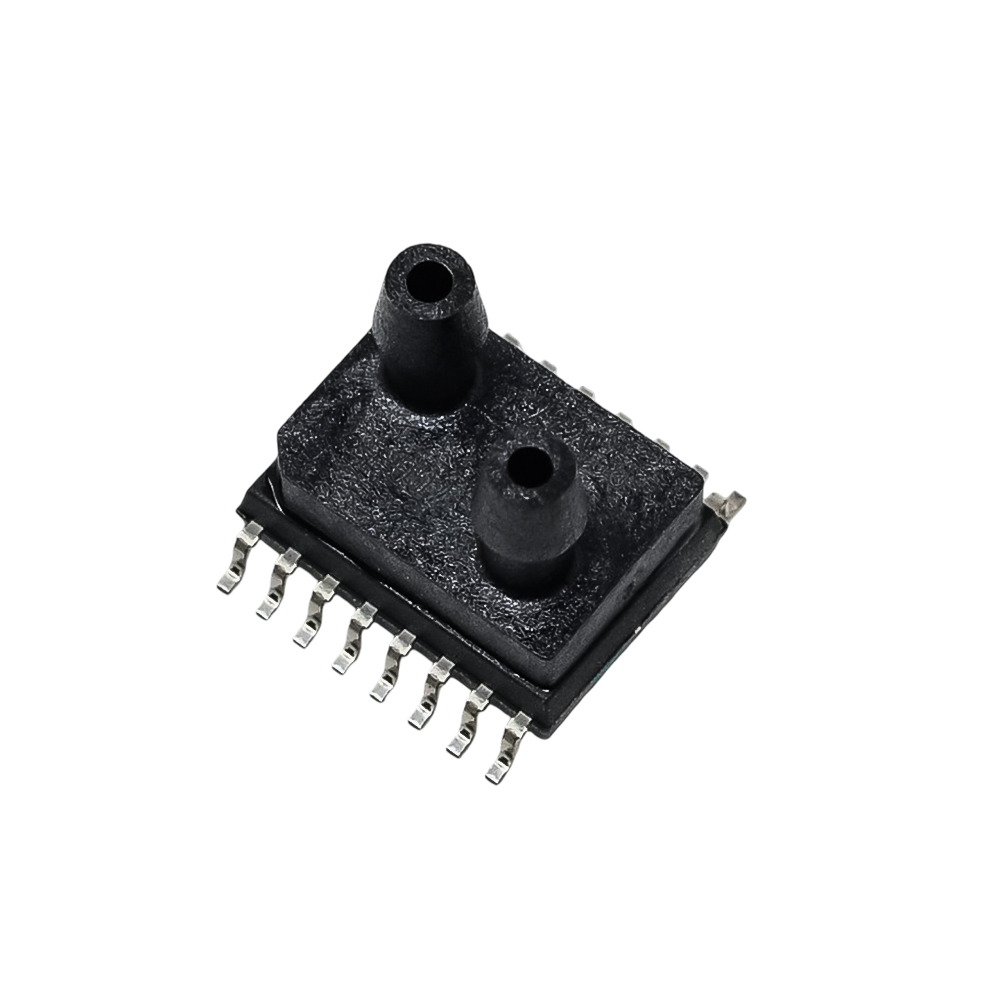

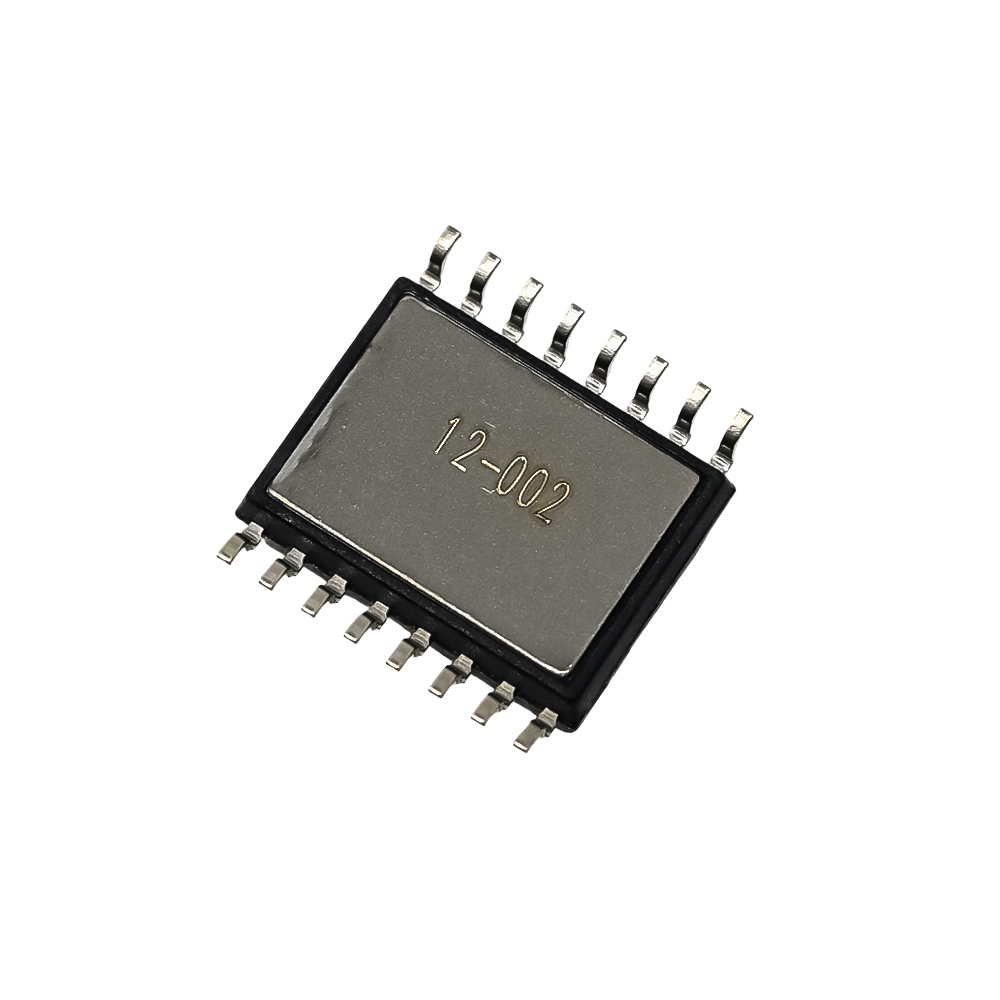

TE Connectivity SM9233-BCE-T-300-000 Pressure Sensor, Gauge, 0 to +250 Pa, 3-5.5V, SOIC-16
The TE Connectivity SM9233-BCE-T-300-000 is a high-precision, ultra-low pressure digital sensor designed for gauge and differential measurements from 0 to +250 Pa. Featuring a 16-bit I²C digital interface and a 3-5.5V supply, it is compatible with microcontrollers like Arduino, Raspberry Pi, ESP32, and STM32 for critical pressure monitoring in medical, HVAC, and industrial automation systems.
Features
- Ultra-low pressure sensing range from 0 to +250 Pa (gauge/differential).
- 16-bit I²C digital output interface for direct microcontroller integration.
- Wide compensated operating temperature range from -20°C to +85°C.
- Robust SOIC-16 surface-mount package with dual porting options (vertical/horizontal).
- High accuracy with less than 1% FS error after autozero for reliable measurements.
Out of stock
The SM9233-BCE-T-300-000 is part of TE Connectivity’s SM9000 Series, leveraging advanced MEMS and CMOS technology to deliver a fully conditioned and calibrated digital pressure signal. This sensor is engineered for ultra-low pressure applications, providing exceptional accuracy and stability for critical measurements in controlled environments.
Housed in a compact, robust SOIC-16 package, the sensor offers dual porting configurations for flexible system integration. Its fast update rate and integrated diagnostic features ensure dependable performance in dynamic airflow and pressure monitoring scenarios, from medical ventilators to building automation systems.
Additional Information
| Weight | 0.003 kg |
|---|---|
| Dimensions | 1.8 × 1.8 cm |
