STM32F429ZI Discovery Board with LCD & MEMS Sensor

Name: STM32F429ZI Discovery Board with LCD &amp; MEMS Sensor
Brand: STMicroelectronics
SKU: SBCD-0418
Price: 7939.00 INR
Availability: OutOfStock

₹7,939.00 (Inclusive of all taxes)

Out of Stock

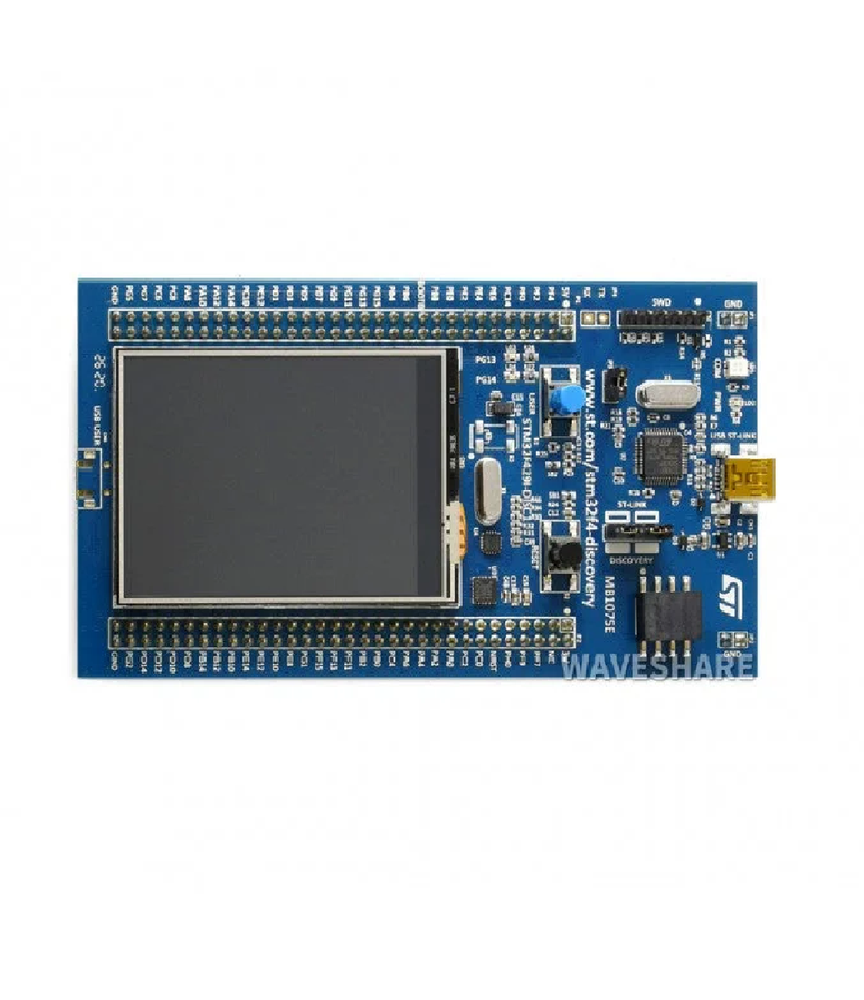

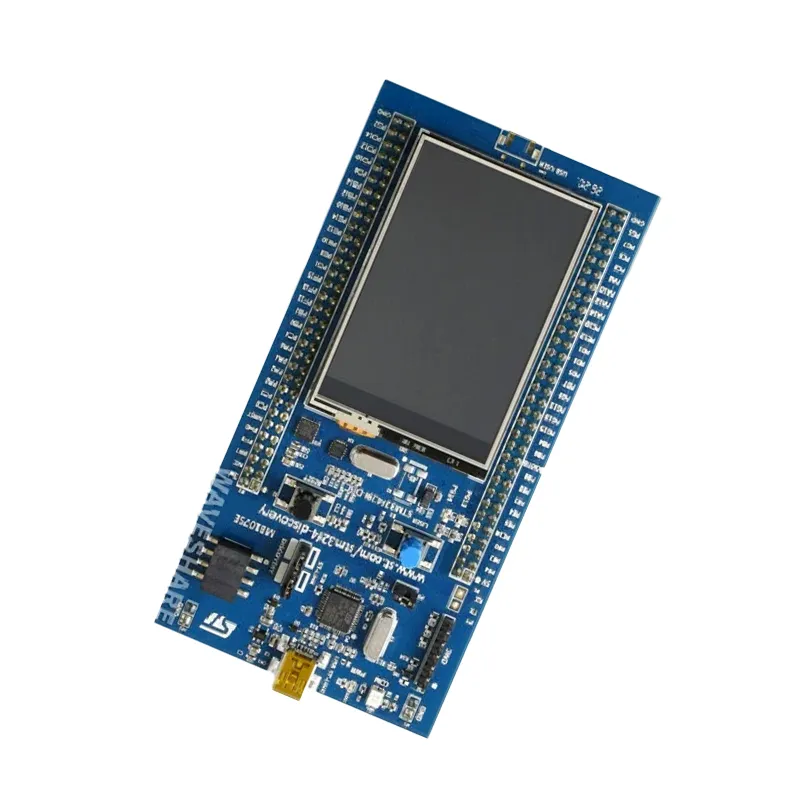

The STMicroelectronics STM32F429ZI Discovery Board enables robust application development with advanced GUIs, leveraging the high-performance STM32F429ZI MCU, a 2.4″ QVGA LCD, 64Mbit SDRAM, and an integrated 3-axis MEMS gyroscope.

Features

Features high-performance STM32F429ZI ARM Cortex-M4 MCU with DSP and FPU.
Integrated 2.4″ QVGA TFT LCD for sophisticated graphical user interface development.
Equipped with 64 Mbits of SDRAM for display buffering and data storage.
Includes an L3GD20 3-axis MEMS digital output gyroscope for motion sensing applications.
Flexible power supply via USB or external 3V/5V, facilitating versatile prototyping.

Out of stock

Get Notified When Available

Description

The STM32F429I Discovery kit provides a comprehensive platform for developing sophisticated embedded applications, particularly those requiring advanced graphical user interfaces. It is built around the high-performance STM32F429ZI microcontroller, featuring an ARM Cortex-M4 core with DSP and FPU instructions, offering ample processing power for demanding tasks.

This development board integrates a 2.4-inch QVGA TFT LCD, complemented by 64 Mbits of SDRAM, making it ideal for creating rich interactive GUIs and managing complex data displays. Additionally, it incorporates an L3GD20 3-axis MEMS digital output gyroscope, expanding its utility for motion-sensing applications. The kit offers flexible power options, supporting both USB bus power and external 3V or 5V supplies, facilitating versatile integration into various prototyping environments.

Key Features

Leverages STM32F429ZI ARM Cortex-M4 MCU with DSP and FPU for high-performance computing.
Integrated 2.4" QVGA TFT LCD for advanced graphical user interface (GUI) development.
Includes 64 Mbits of SDRAM for graphic buffering, display memory, and general data storage.
Onboard L3GD20 3-axis MEMS digital output gyroscope for motion detection and control.
Flexible power supply options: via USB bus or external 3V/5V supply voltage.
On-board ST-LINK/V2-B debugger/programmer for easy firmware deployment and debugging.
Supports extensive GPIO access for connecting external sensors, actuators, and expansion modules.
Compatible with the STM32Cube ecosystem for streamlined development and configuration.

Applications

Developing rich graphical user interfaces (GUIs)
Embedded Human-Machine Interface (HMI) applications
Motion sensing and control systems
IoT prototyping and sensor integration
Industrial control and automation solutions
Educational and academic projects in embedded systems

Technical Specifications

MCU	STM32F429ZI (ARM Cortex-M4 with FPU & DSP)
Flash Memory	2 Mbytes
RAM	256 Kbytes SRAM + 64 Mbits SDRAM
Display	2.4" QVGA TFT LCD
Motion Sensor	L3GD20 3-axis MEMS Gyroscope
Power Supply	USB or external 3V/5V
Debugger/Programmer	On-board ST-LINK/V2-B
Dimensions	19 × 10 × 5 cm
Weight	0.11 kg

Frequently Asked Questions

What is the core MCU and its capabilities?

The board features the STM32F429ZI microcontroller, based on the ARM Cortex-M4 core. It includes a Floating Point Unit (FPU) and Digital Signal Processing (DSP) instructions, offering high performance for complex computations and real-time applications. It has 2MB Flash memory and 256KB of SRAM.

What integrated peripherals are available for GUI development?

For graphical applications, the board is equipped with a 2.4-inch QVGA (320x240) TFT LCD and 64 Mbits of SDRAM. This combination allows for buffering high-resolution graphics and creating responsive, visually rich user interfaces directly on the board.

How is the STM32F429ZI Discovery Board powered and debugged?

The board can be powered via its USB connector (mini-B) or through an external 3V or 5V power supply. It includes an integrated ST-LINK/V2-B debugger/programmer, enabling easy firmware flashing and debugging through a single USB connection from your development PC.

What development environments are supported for this board?

The STM32F429ZI Discovery Board is fully supported by STMicroelectronics' STM32Cube ecosystem, including STM32CubeIDE for development, configuration, and debugging. It is also compatible with other ARM Cortex-M compatible toolchains like Keil MDK and IAR Embedded Workbench for professional development.
