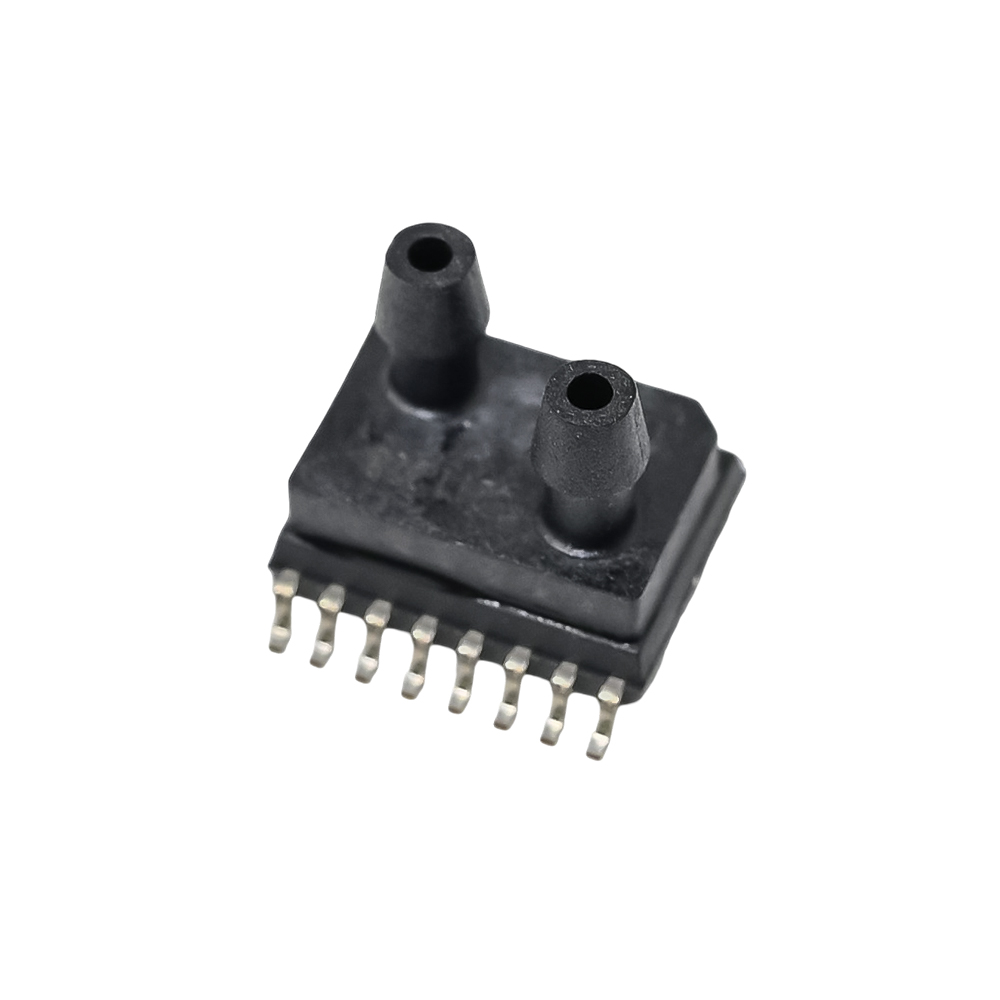

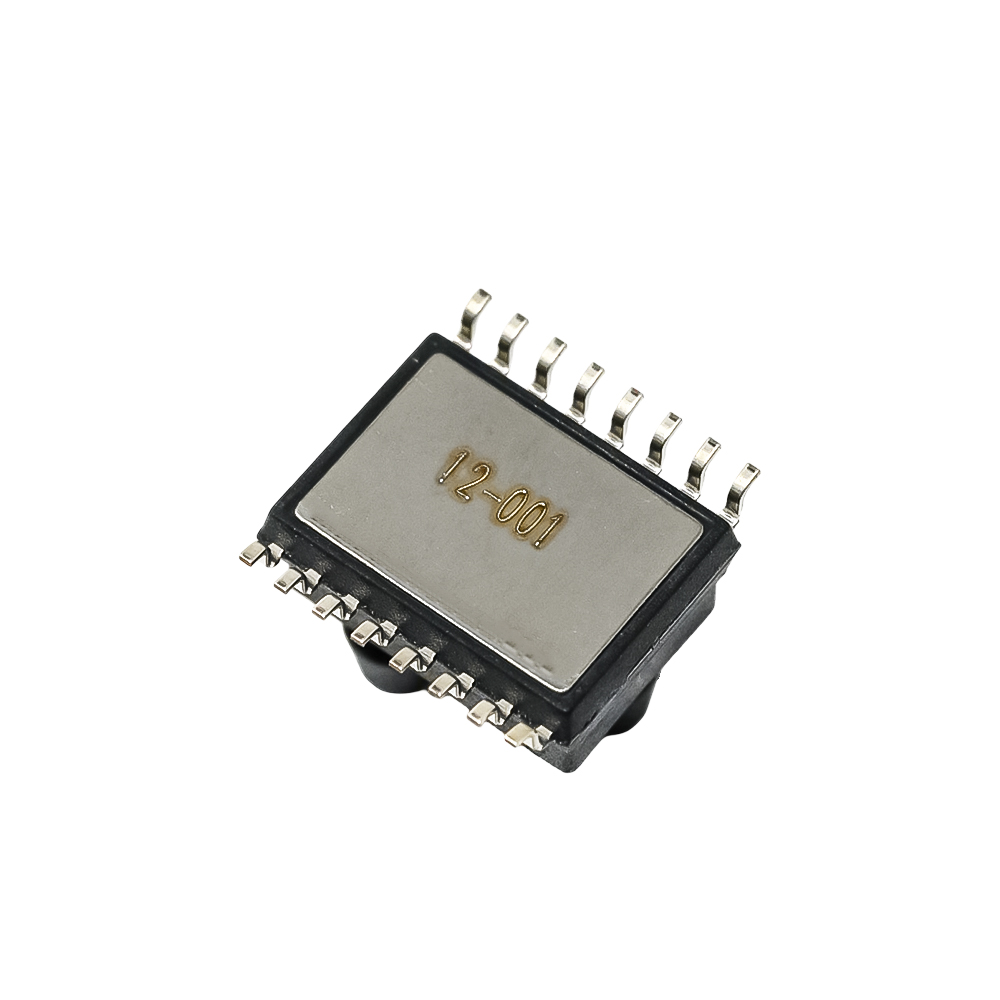

TE Connectivity SM9333-BCE-S-125-002 Digital Pressure Sensor, DIFF, 125Pa, I2C/SPI
The TE Connectivity SM9333-BCE-S-125-002 is a high-accuracy, ultra-low differential pressure sensor with a 0-125 Pa range. It features a digital I2C/SPI interface with 16-bit output, factory calibration, and temperature compensation, making it ideal for integration into medical respiratory devices, HVAC systems, and industrial monitoring applications requiring precise low-pressure measurement.
Features
- Ultra-low differential pressure sensing range of 0 to 125 Pa.
- Digital I2C/SPI interface with 16-bit resolution output.
- Integrated autozero function for minimal offset drift and high accuracy (±1% FS).
- Wide operating voltage range from 3.0V to 5.5V for flexible system integration.
- Industrial-grade MEMS sensor in a robust JEDEC SOIC-16 surface-mount package.
Out of stock
The SM9333-BCE-S-125-002 from TE Connectivity is a precision digital differential pressure sensor based on advanced silicon micromachined (MEMS) technology. It incorporates integrated CMOS signal conditioning, providing a fully calibrated and temperature-compensated digital output, eliminating the need for external signal processing components. The sensor’s autozero capability ensures a tight total error band, maintaining high accuracy across its operating temperature range.
Housed in a compact, industry-standard SOIC-16 package, this sensor is designed for direct PCB mounting in space-constrained applications. Its robust construction and adherence to ISO9001 and ISO/TS16949 standards guarantee reliability in demanding environments, from medical equipment to industrial automation and building management systems.
Additional Information
| Weight | 0.005 kg |
|---|---|
| Dimensions | 1 cm |
