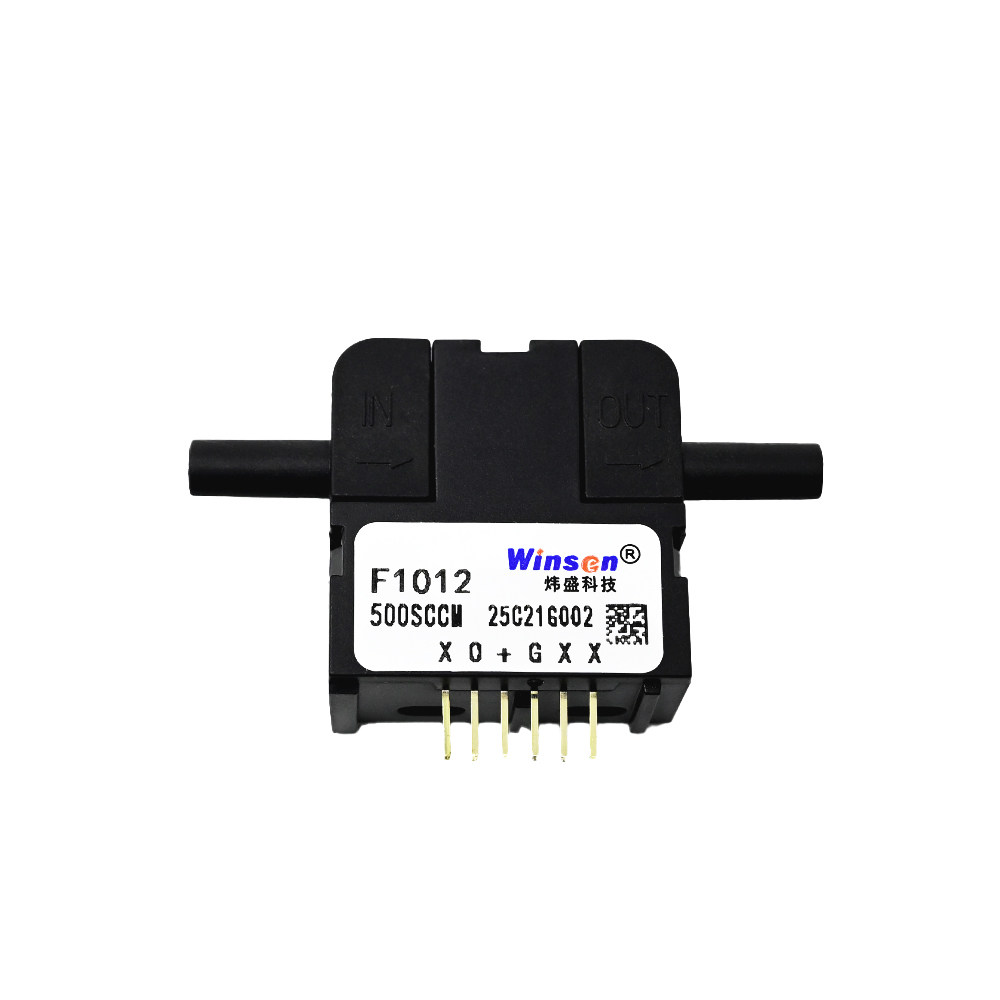

Winsen F1012 Micro Gas Flow Sensor - MEMS Thermal Flow Sensor, 50-2000 sccm, 10V DC
The Winsen F1012 is a MEMS-based thermal gas flow sensor designed for precise micro-flow measurement from 50 to 2000 sccm. Operating on a 10V DC supply, it provides a linear analog voltage output, making it compatible with industrial PLCs, data loggers, and microcontroller-based systems like Arduino for process control and environmental monitoring.
Features
- MEMS thermal flow sensing principle for high accuracy and repeatability.
- Wide measurement range selectable from 50, 100, 200, 500, 1000, to 2000 sccm.
- Integrated temperature sensor for professional temperature compensation.
- Linear analog voltage output (zero output at 1.00V) for easy system integration.
- Robust operating range from -25°C to 65°C with a pressure rating up to 200 kPa.
Out of stock
The Winsen F1012 Micro Gas Flow Sensor utilizes a sophisticated MEMS thermal sensing chip to detect gas flow rates with high precision. Its operation is based on the thermodynamic principle, where the heat dissipation from a heated element is proportional to the mass flow rate of the gas passing over it. This method ensures excellent repeatability and a fast response time.
The sensor incorporates an internal temperature sensor, enabling automatic temperature compensation to maintain measurement accuracy across its full operating temperature range from -25°C to 65°C. The conditioned signal is output as a linear analog voltage, starting from a 1.00V zero-flow baseline, which simplifies interfacing with analog-to-digital converters (ADCs) on microcontrollers or industrial control systems. Its compact design is engineered for durability in demanding applications.
Additional Information
| Weight | 0.009 kg |
|---|---|
| Dimensions | 5 × 7 × 2 cm |
