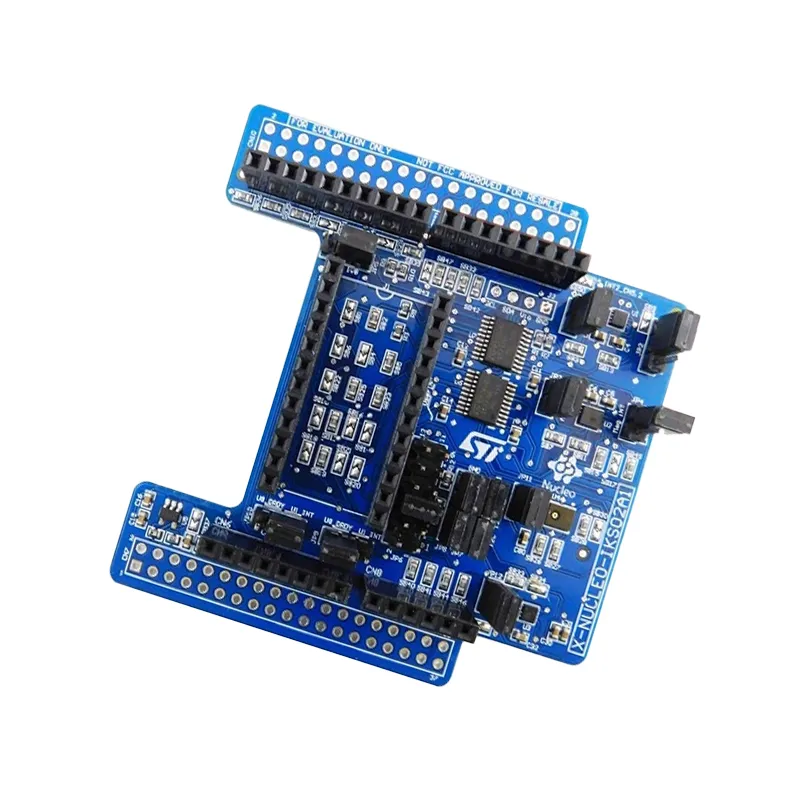

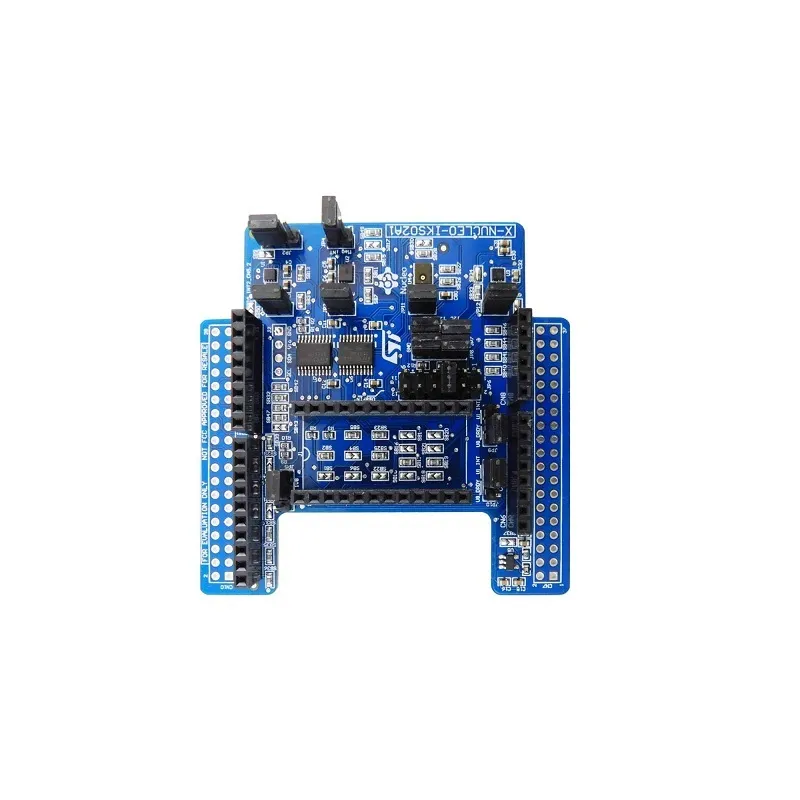

STMicroelectronics X-NUCLEO-IKS02A1 Nucleo Sensor Board
This STMicroelectronics X-NUCLEO-IKS02A1 is an industrial motion MEMS sensor expansion board designed for STM32 Nucleo development boards, featuring a comprehensive suite of accelerometers, a gyroscope, a magnetometer, and a digital microphone for advanced sensing applications. Its Arduino UNO R3 compatible connector ensures versatile integration into existing projects.
Features
- Integrates ISM330DHCX 3-axis accelerometer and gyroscope for precise motion tracking.
- Features IIS2MDC 3-axis magnetometer for accurate magnetic field sensing.
- Includes IIS2DLPC low-power 3-axis accelerometer for power-efficient motion detection.
- Equipped with IMP34DT05 digital omnidirectional microphone for audio capture.
- Compatible with STM32 Nucleo boards and Arduino UNO R3 connector layout.
Out of stock
The X-NUCLEO-IKS02A1 industrial motion MEMS sensor expansion board offers a robust suite of sensory capabilities, making it ideal for a wide range of embedded applications. It seamlessly integrates with STM32 Nucleo development boards via the I²C interface, providing developers with powerful tools for data acquisition and environmental interaction. This board is designed to accelerate prototyping for projects requiring advanced motion and environmental sensing.
At its core, the board features the ISM330DHCX for high-performance 3D acceleration and angular rate sensing, complemented by the IIS2MDC 3D magnetometer for orientation and navigation. For power-sensitive applications, the IIS2DLPC low-power 3D accelerometer provides efficient motion detection. Additionally, the IMP34DT05 digital microphone enables audio input, expanding the board’s utility into sound-responsive systems or voice interfaces. A DIL 24-pin socket offers further expansion for custom sensors, ensuring high flexibility.
Additional Information
| Weight | 0.092 kg |
|---|---|
| Dimensions | 22 × 17 × 3 cm |
