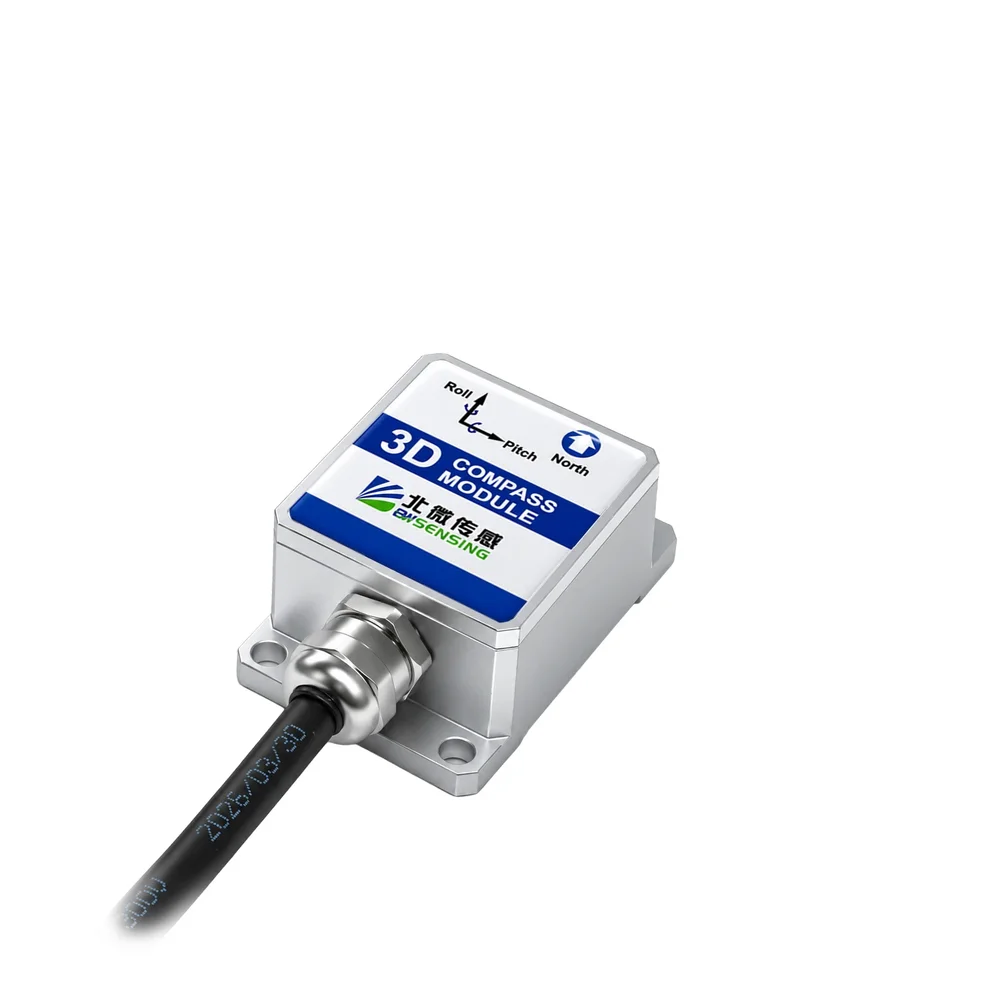

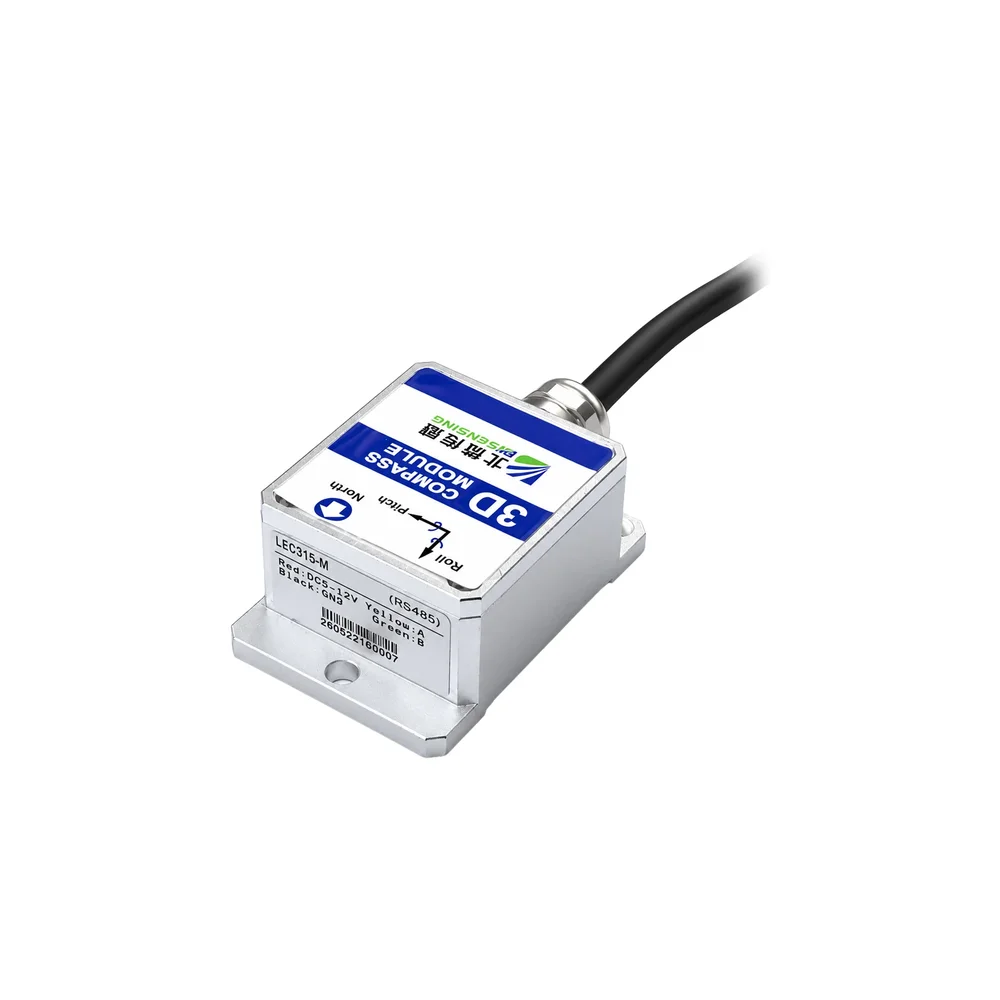

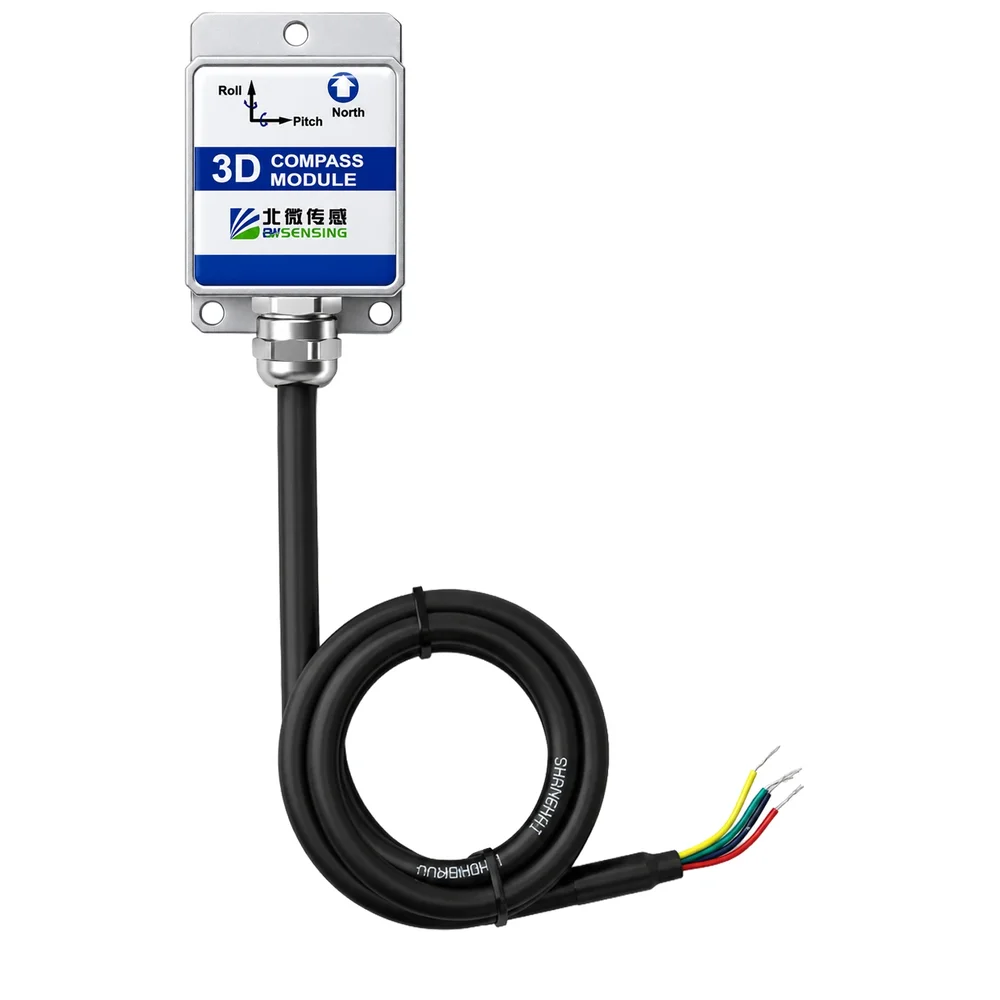

BWSENSING LEC315M 3D Electronic Compass Sensor Module - Tilt Compensated MEMS Digital Compass, RS485 Interface
The BWSENSING LEC315M is a tilt-compensated 3D electronic compass module integrating MEMS magnetic and inclination sensors for precise heading and attitude measurement. It features an RS485 interface for robust industrial communication and operates from a 5-12V DC supply, making it suitable for integration with PLCs, embedded systems, and autonomous navigation platforms.
Features
- Tilt-compensated 3D electronic compass with ±30° tilt range for accurate heading in dynamic orientations.
- High-precision MEMS magnetic sensing delivers 2° RMS heading accuracy and 0.1° resolution.
- Industrial-grade RS485 interface ensures reliable, noise-immune communication over long distances.
- Wide operating temperature range from -40°C to +85°C for harsh environmental deployment.
- Supports hard and soft magnetic calibration for compensation of local magnetic distortions.
Out of stock
The BWSENSING LEC315M employs advanced MEMS technology to combine a 3-axis magnetometer with a 3-axis accelerometer, providing a complete 3D electronic compass solution. The tilt compensation algorithm corrects heading errors caused by sensor inclination up to ±30°, ensuring reliable 0°–360° direction data even when mounted on moving or tilting platforms. This makes it ideal for applications where orientation stability is critical.
Designed for industrial robustness, the module communicates via an RS485 interface, supporting Modbus RTU or other standard protocols for seamless integration into distributed control systems, robotic navigation, and surveying equipment. Its wide operating voltage and temperature range provide flexibility for outdoor and embedded deployments in challenging conditions.
Additional Information
| Weight | 0.012 kg |
|---|---|
| Dimensions | 12 × 12 × 7 cm |
