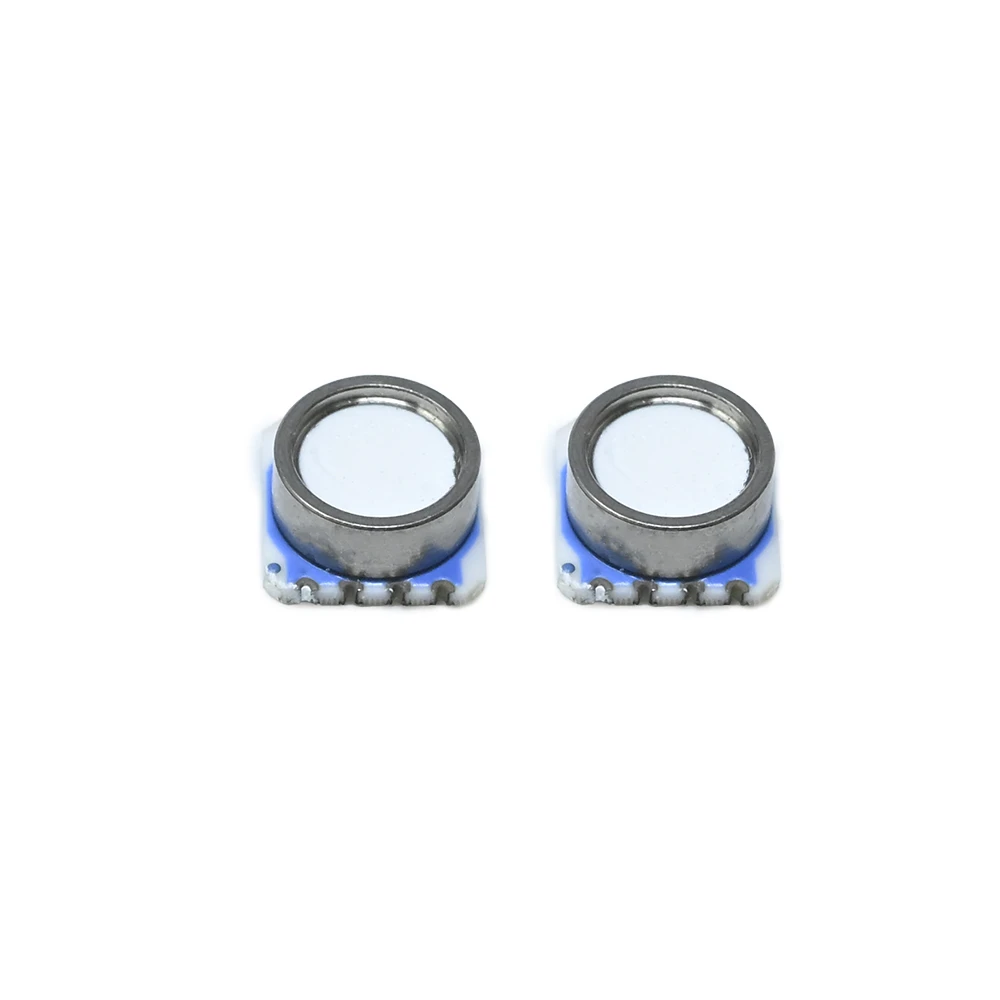

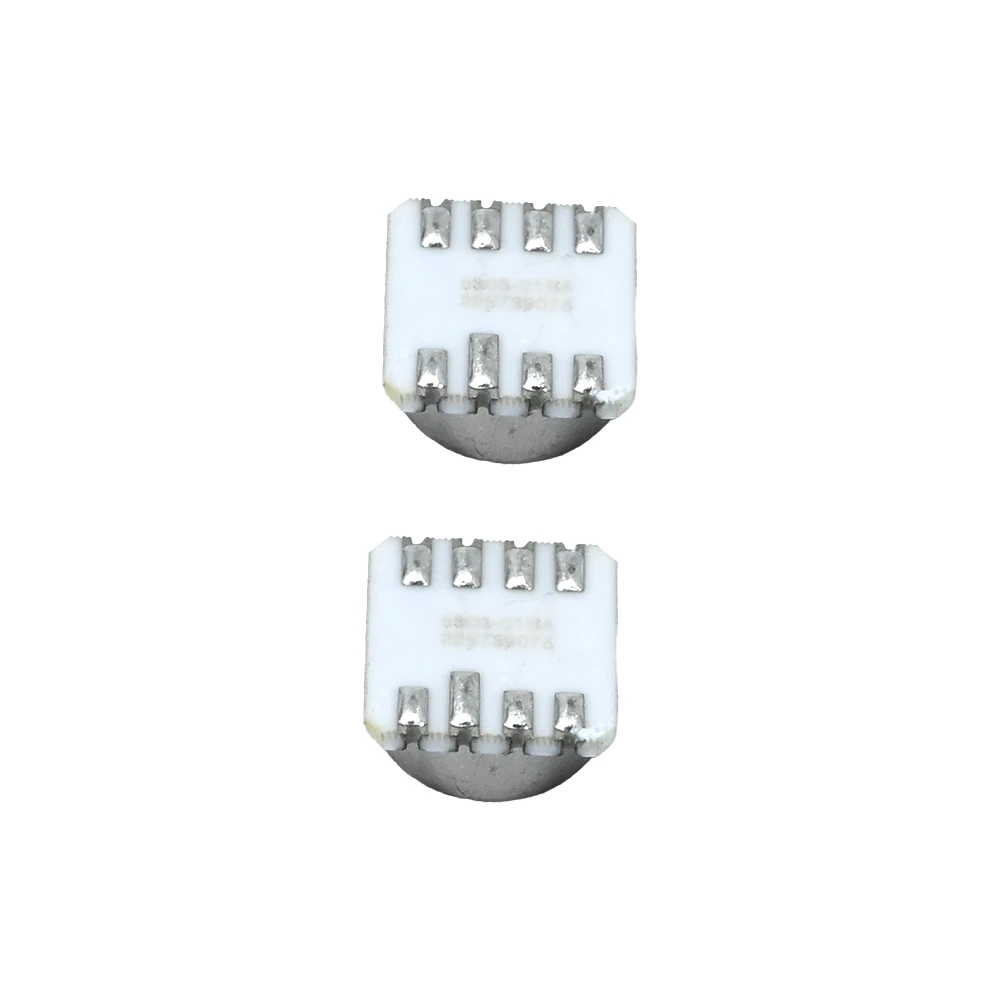

TE Connectivity MS5803-01BA01 High-Resolution Digital Barometric Pressure Sensor Module - I2C/SPI, 10-1300 mbar
The TE Connectivity MS5803-01BA01 is a high-precision digital barometric pressure sensor module featuring a 24-bit ADC and dual I2C/SPI interface, designed for integration with microcontrollers like Arduino, Raspberry Pi, and ESP32 for advanced altimetry and environmental monitoring.
Features
- High-resolution MEMS pressure sensor with 0.012 mbar resolution and ±1.5 mbar accuracy.
- Integrated 24-bit ΔΣ ADC with factory-calibrated coefficients for stable digital output.
- Dual communication interface support for I2C and SPI (Mode 0 & 3).
- Ultra-low power operation with 1 µA active current and a wide 1.8V to 3.6V supply range.
- Rugged design with gel protection and stainless steel cap for reliable performance from -40°C to +85°C.
Out of stock
The MS5803-01BA01 from TE Connectivity is a high-performance digital barometric pressure sensor built on advanced MEMS technology. It provides absolute pressure measurements with high resolution and stability, making it ideal for applications requiring precise altitude tracking or atmospheric pressure monitoring. The sensor’s integrated signal conditioning and 24-bit delta-sigma ADC deliver a clean, digital output directly to a host microcontroller.
Engineered for durability, the module features internal gel protection and a robust stainless steel cap, ensuring reliable operation across a wide industrial temperature range from -40°C to +85°C. Its low-voltage, low-power design is optimized for battery-powered portable devices, while the flexible I2C and SPI interfaces allow for seamless integration into diverse electronic systems and data acquisition setups.
Additional Information
| Weight | 0.003 kg |
|---|---|
| Dimensions | 3 × 3 × 2 cm |
