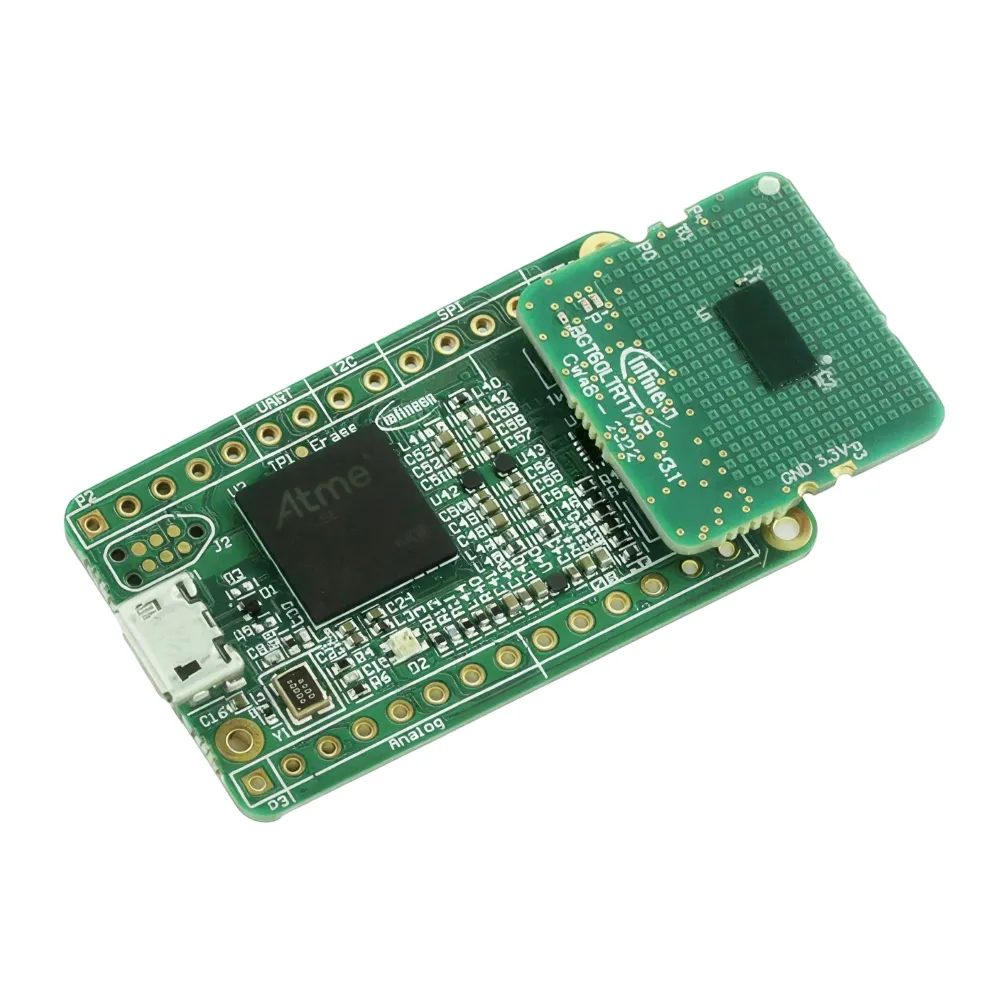

Infineon Technologies BGT60LTR11AIP 60GHz Radar Sensor Dev Board
Infineon Technologies BGT60LTR11AIP 60GHz Radar Sensor Dev Board - Image 2
SKU: SBCD-0015
📋 GST Invoice Available

Infineon Technologies BGT60LTR11AIP 60GHz Radar Sensor Dev Board

₹25,299.00 (Inclusive of all taxes)
Out of Stock

The Infineon Technologies DEMOBGT60LTR11AIP is a compact 60GHz radar sensor development board designed for precise motion and presence detection. Operating in pulsed-Doppler mode with an integrated antenna-in-package, it provides efficient data acquisition via SPI and USB for prototyping smart sensing and IoT applications.

Features

  • Features Infineon Technologies XENSIV™ BGT60LTR11AIP 60GHz radar sensor.
  • Operates in pulsed-Doppler mode for accurate motion and presence detection.
  • Integrated 1 Tx / 1 Rx antenna-in-package (AIP) for compact design.
  • Supports SPI and Hi-Speed USB 2.0 interfaces for flexible data transfer.
  • Compatible with Radar Development Kit (RDK) and Radar Fusion GUI for rapid prototyping.

Out of stock

Description

The Infineon Technologies BGT60LTR11AIP 60GHz Radar Sensor development board offers a robust and compact platform for evaluating advanced motion and presence sensing using Infineon Technologies’s XENSIV radar technology. This kit includes the radar sensor shield mounted on the Radar Baseboard MCU7, engineered for reliable operation in pulsed-Doppler mode to ensure precise motion tracking and object detection. Its integrated antenna-in-package design simplifies RF considerations, making it ideal for rapid prototyping.

Equipped with both SPI and Hi-Speed USB 2.0 interfaces, the board facilitates efficient radar data acquisition and processing, supporting quick integration into various embedded systems. Compatibility with the comprehensive Radar Development Kit (RDK) and the intuitive Radar Fusion GUI allows developers to quickly configure settings, visualize radar signals, and accelerate design cycles. This makes the DEMOBGT60LTR11AIP an excellent choice for developing intelligent sensing systems, industrial automation solutions, and a wide range of IoT radar applications requiring high-precision detection.

Key Features

  • Integrated XENSIV™ BGT60LTR11AIP 60GHz radar sensor for high-frequency detection.
  • Utilizes pulsed-Doppler mode for accurate and reliable motion detection.
  • Features 1 Tx and 1 Rx antenna-in-package (AIP) configuration for a compact footprint.
  • Seamless compatibility with Infineon Technologies's Radar Development Kit (RDK) and Radar Fusion GUI.
  • High-Speed USB 2.0 interface enables rapid radar data transfer to host systems.
  • SPI digital interface provides flexible sensor configuration and efficient data communication.
  • On-board LED indicators offer visual feedback on radar sensor operational status.
  • Offers flexible expansion capabilities via Arduino MKR interface and castellated PCB edges.

Applications

  • Smart sensing systems for presence and motion detection.
  • Industrial automation, including human-machine interaction and safety monitoring.
  • IoT radar applications for smart homes and commercial buildings.
  • Touchless control interfaces and gesture recognition.
  • Robotics and drone obstacle avoidance.
  • High-precision distance and velocity measurement.

Technical Specifications

Item TypeDevelopment Board
Operating Frequency61 – 61.5 GHz
Detection Range0.6 - 11 m
InterfaceSPI, USB 2.0
Antenna Type1 Tx / 1 Rx Antenna-in-Package (AIP)
SensorXENSIV 60 GHz Radar Sensor
Board Dimensions145 × 74 mm
Radar Module Dimensions64 × 25.4 mm
Shield Form Factor20 × 6.25 mm RF shield
Weight74 g

Frequently Asked Questions

What is the primary operating principle of the BGT60LTR11AIP development board?

The board primarily operates in pulsed-Doppler mode. This technique allows for highly accurate detection of motion, velocity, and presence by analyzing the frequency shift of the reflected 60GHz radar signals, enabling precise environmental interaction sensing.

What interfaces are available for data communication and configuration on this board?

The board offers both a Hi-Speed USB 2.0 interface for rapid radar data transfer to a host PC and an SPI (Serial Peripheral Interface) for sensor configuration and lower-level data communication. This dual-interface design enhances flexibility for system integration.

Is this radar development board compatible with existing software tools for analysis?

Yes, the Infineon Technologies DEMOBGT60LTR11AIP board is fully compatible with the Infineon Technologies Radar Development Kit (RDK) and the Radar Fusion GUI. These tools provide a comprehensive environment for rapid prototyping, configuration, data visualization, and detailed analysis of radar signals.

What is an "Antenna-in-Package" (AIP) configuration and its benefit?

An Antenna-in-Package (AIP) configuration means the transmit (Tx) and receive (Rx) antennas are integrated directly into the sensor's package. This compact design simplifies RF layout, reduces board space, improves signal integrity, and accelerates product development cycles for radar-enabled applications.

Package Includes

  • 1 x Infineon Technologies DEMOBGT60LTR11AIPTOBO1 Radar Sensor Development Board

Additional Information

Weight 0.074 kg
Dimensions 14.5 × 7.4 cm

Related Products

Out of Stock

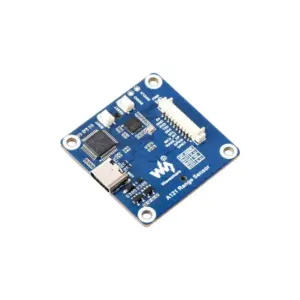

Waveshare A121 60GHz mmWave Radar Module, High-Precision PCR - UART/I2C/GPIO Interface

2,729.00
Learn More
Out of Stock

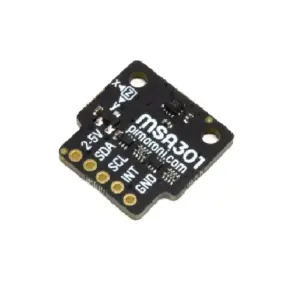

Pimoroni MSA301 3DoF Motion Sensor Module - I2C Interface, LGA-12 Package

739.00
Learn More
Out of Stock

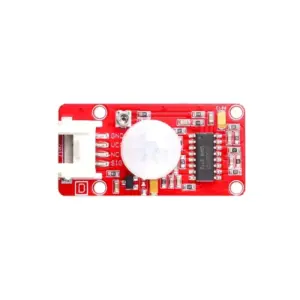

Elecrow Crowtail PIR Motion Sensor - 3-5V, 120° Angle, Max 6m Range

319.00
Learn More
Out of Stock

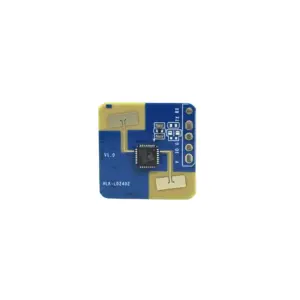

Hi-Link HLK-LD2460 24GHz Trajectory Detection Radar Sensor

2,209.00
Learn More
Out of Stock

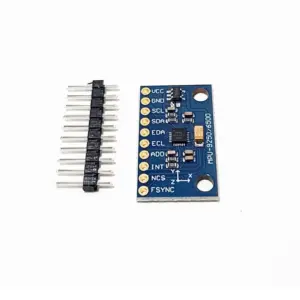

Generic MPU6500 6-Axis Gyro Accelerometer DMP Motion Sensor Module - I2C/SPI

142.00
Learn More
Out of Stock

HANYOUNG NUX LES-02-1 Mono Lever Switch

1,859.00
Learn More
Out of Stock

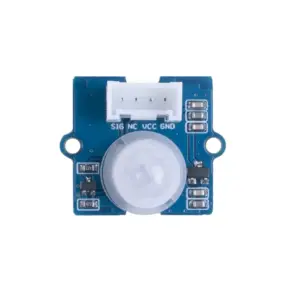

Seeed Studio Studio Grove Digital PIR Motion Sensor - 3-5V DC, 100° Angle, Grove Interface

479.00
Learn More
Out of Stock

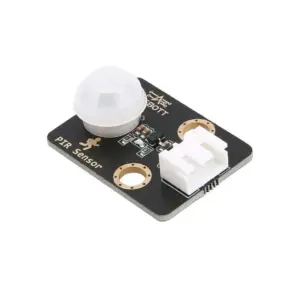

ACEBOTT PIR Motion Sensor Easy-Plug - 0-4m Detection, 3.3-5V DC

359.00
Learn More
Out of Stock

WTMotion HWT9053-485 High-Precision Motion IMU Sensor 200Hz Output - RS485 Interface, IP67 Aluminum Shell

55,649.00
Learn More
Out of Stock

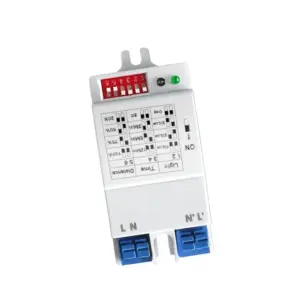

Generic D08 5.8GHz Microwave Radar Motion Sensor AC220-240V - 360° Detection, Flame-Retardant ABS

579.00
Learn More
Out of Stock

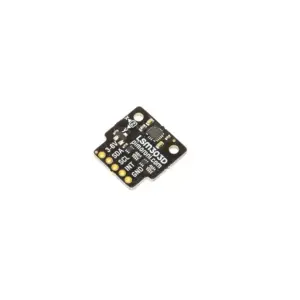

Pimoroni LSM303D 6DoF Motion Sensor Breakout - I2C Interface, 3.3V/5V Compatible

1,086.00
Learn More
Out of Stock

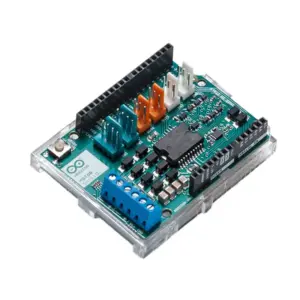

Arduino 9 Axis Motion Shield A000070
