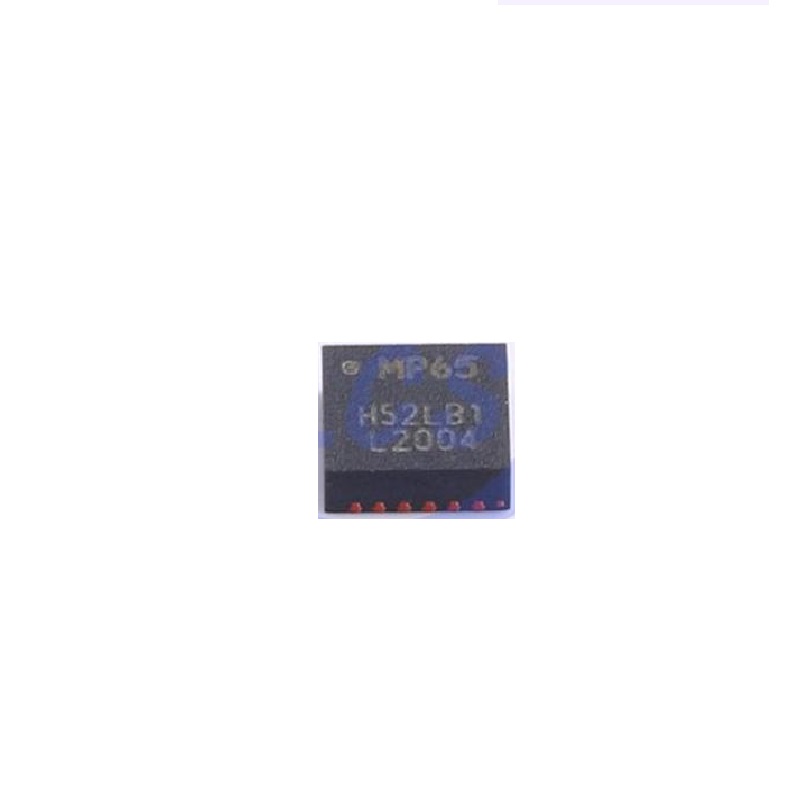

TDK TDK InvenSense MPU-6500 QFN-24 6-Axis Accelerometer Gyro - I2C/SPI Interface

The MPU-6500 requires a VDD supply voltage between 2.4V and 3.46V for the analog core. The digital I/O voltage (VDDIO) is separate and can range from 1.71V to 3.46V, allowing direct interface with both 3.3V and 1.8V logic microcontrollers without level shifters.

For Arduino or Raspberry Pi (3.3V logic), connect the MPU-6500's VDD and VDDIO pins to 3.3V. Use the I2C interface by connecting the SDA and SCL pins to the corresponding microcontroller pins. The AD0 pin sets the I2C address (low=0x68, high=0x69). For SPI, connect the CS, SDO, SDI, and SCLK pins accordingly. Always include pull-up resistors on the I2C lines.

The integrated Digital Motion Processor (DMP) performs onboard sensor fusion algorithms, combining accelerometer and gyroscope data to compute quaternions, Euler angles, and gesture recognition. This offloads computationally intensive tasks from the main host processor, simplifies application code, and can significantly reduce overall system power consumption.

Yes, the MPU-6500 includes an auxiliary I2C master port specifically designed to interface with external I2C sensors like magnetometers (e.g., AK8963). The DMP can read data from the magnetometer directly, enabling onboard 9-axis sensor fusion for a complete Attitude and Heading Reference System (AHRS) without requiring extra host processor I2C ports.

The 512-byte FIFO buffer allows the MPU-6500 to store sensor data internally. The host microcontroller can read data in large bursts at its convenience, rather than being interrupted at the sensor's output data rate. This reduces real-time constraints on the host, minimizes bus traffic, and is crucial for implementing low-power sleep modes where the host wakes up only to read a batch of data.
