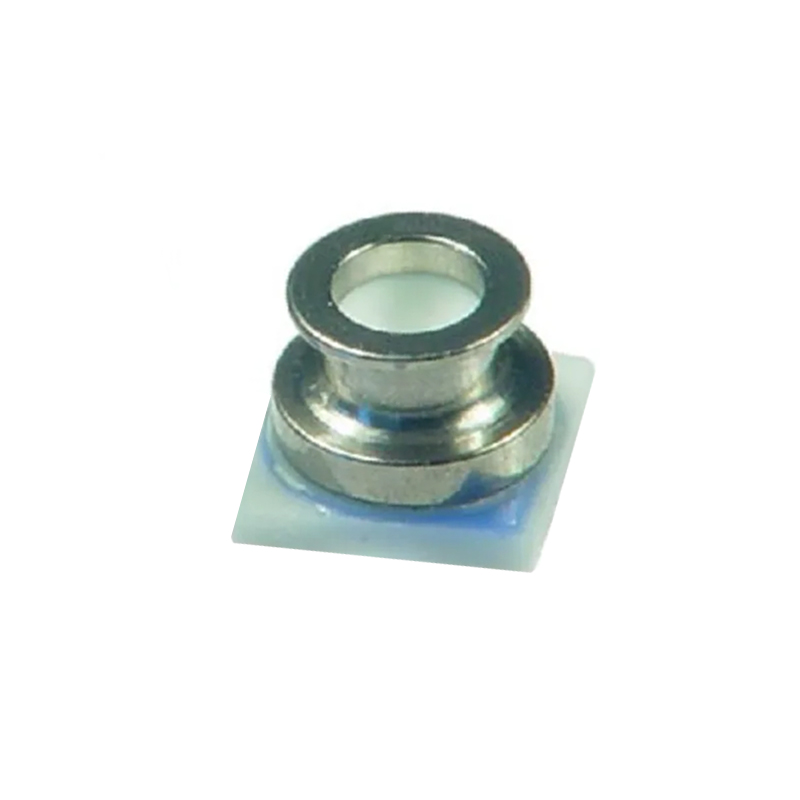

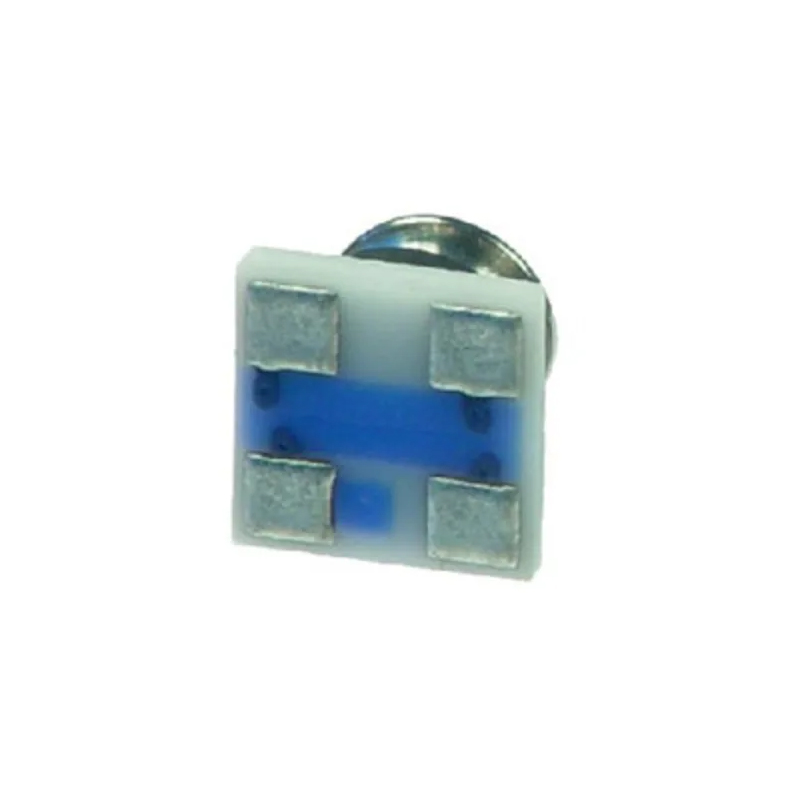

TE Connectivity MS583702BA01-50 Pressure and Temperature Sensor, 300-1200 mbar Range, 1.5-3.6V, I2C Interface
The TE Connectivity MS583702BA01-50 is a high-resolution MEMS absolute pressure and temperature sensor module designed for compact, low-power applications. Featuring a 24-bit digital I2C output, it delivers precise altitude resolution of 13 cm and operates from 1.5V to 3.6V, making it ideal for integration into wearable devices, drones, and portable altimeters.
Features
- High-resolution MEMS sensor with 13 cm altitude resolution for precise altitude tracking.
- Ultra-low power consumption of 0.6 µA active and ≤0.1 µA standby for extended battery life.
- Integrated 24-bit ΔΣ ADC provides digital pressure and temperature data via I2C interface.
- Compact ceramic and metal package measuring 3.3 x 3.3 x 2.75 mm with water-resistant O-ring seal.
- Wide operating range of 300 to 1200 mbar pressure and -20°C to +85°C temperature.
Out of stock
The MS583702BA01-50 from TE Connectivity is a gel-filled, high-linearity MEMS pressure sensor engineered for demanding, space-constrained applications. Its integrated 24-bit delta-sigma ADC converts pressure and temperature readings directly into digital data, eliminating the need for external signal conditioning components. The sensor’s robust ceramic and metal housing, combined with a water-resistant O-ring seal, ensures reliable performance in harsh environmental conditions.
Designed for ultra-low power operation, this sensor is perfect for battery-powered systems. The optional shielded metal lid version provides enhanced immunity to electrical noise, making it suitable for use in plastic enclosures. With its high chemical resistance and proven reliability, the MS5837-02BA series is a trusted solution for precision barometric sensing in consumer electronics, industrial monitoring, and altitude-based applications.
Additional Information
| Weight | 0.002 kg |
|---|---|
| Dimensions | 0.33 × 0.33 × 0.275 cm |
