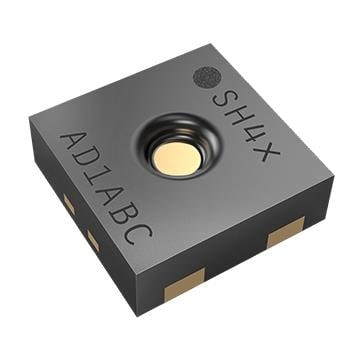

Sensirion SHT41-AD1B-R2 Humidity & Temperature Sensor, 0 to 100%RH, −40°C to +125°C, ±1.8%RH, I2C Interface
The Sensirion SHT41-AD1B-R2 is a fully calibrated, digital humidity and temperature sensor with an I2C interface, compatible with 3.3V systems like Arduino, Raspberry Pi, and ESP32. It provides high-accuracy environmental sensing for a wide range of RH and temperature conditions.
Features
- High-Accuracy Humidity Sensing: Delivers ±1.8% RH typical accuracy for reliable environmental data.
- Wide Operating Range: Functions from -40°C to +125°C and 0 to 100% RH for demanding applications.
- Integrated Digital I2C Interface: Simplifies wiring and communication with microcontrollers and single-board computers.
- Ultra-Low Power Operation: Optimized for battery-powered and portable monitoring devices.
- Robust DFN Package: Features a compact, reflow-solderable housing suitable for automated PCB assembly.
Out of stock
The SHT41-AD1B-R2 from Sensirion utilizes a proprietary CMOSens® technology, which integrates a capacitive polymer humidity sensor and a band-gap temperature sensor on a single CMOS chip. This monolithic integration ensures excellent signal quality, minimal thermal hysteresis, and outstanding long-term stability. The sensor outputs fully calibrated, digital data via a standard I2C interface, eliminating the need for external signal conditioning.
Designed for harsh environments, the sensor operates across an extended temperature and humidity range. Its low power consumption and fast response time make it ideal for high-volume applications requiring precise environmental monitoring. The DFN-4 surface-mount package is optimized for reflow soldering processes, facilitating efficient manufacturing.
Additional Information
| Weight | 0.02 kg |
|---|
