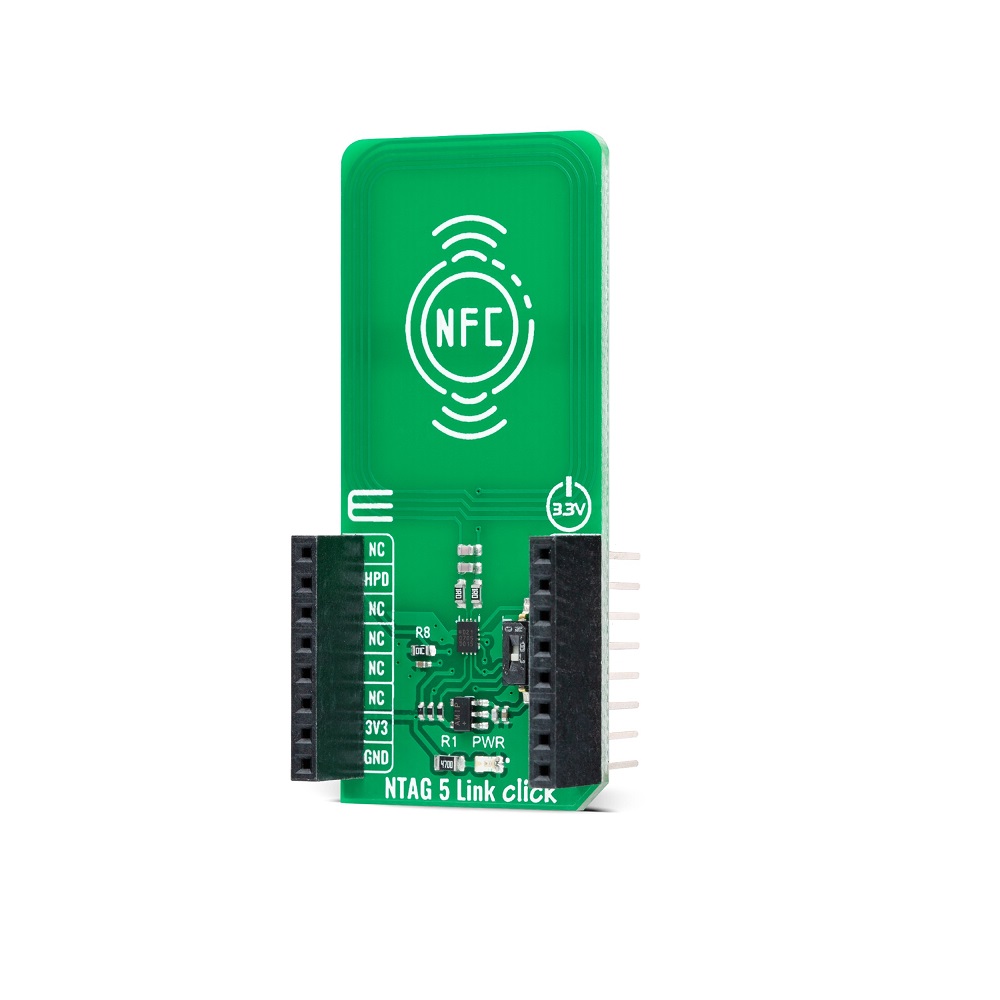

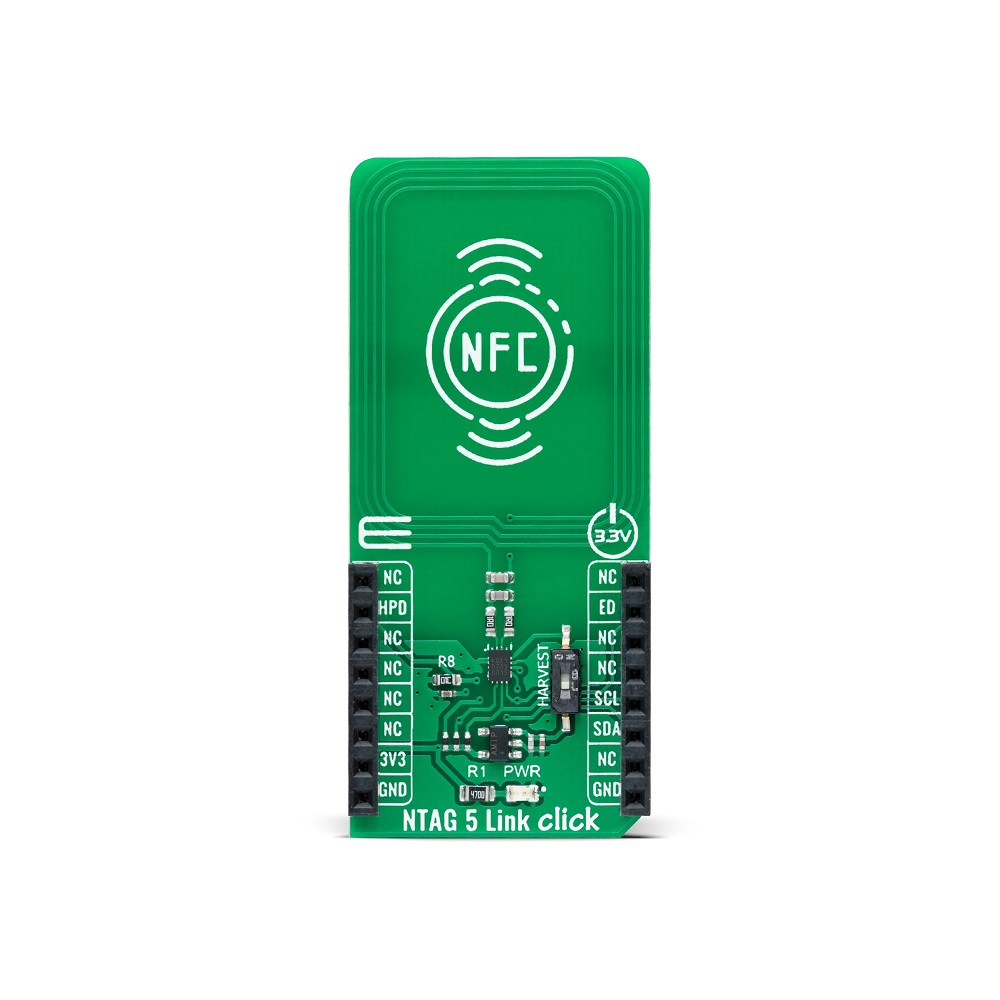

Mikroe NTAG 5 LINK CLICK (Mikroe-4635) – NFC / RFID Tag & Transponder Board, I²C
The Mikroe NTAG 5 LINK CLICK (Mikroe-4635) is a mikroBUS-compatible NFC/RFID transponder board featuring the NXP Semiconductors NTP5332 IC. It provides a secure I²C bridge for connecting sensors or memory to NFC-enabled devices and industrial readers, supporting 3.3V logic for integration with Arduino, Raspberry Pi, and other embedded platforms.
Features
- NFC Forum Type 5 Tag compliant, operating at 13.56 MHz for short-range and ISO/IEC 15693 for extended-range reading.
- Integrated NXP Semiconductors NTP5332 IC with configurable I²C master/slave host interface and AES mutual authentication for secure data exchange.
- Features energy harvesting capability to power auxiliary system components directly from the RF field.
- Standard L-size Click board (57.15 x 25.4 mm) for direct plug-and-play compatibility with any mikroBUS socket.
- Includes a mikroSDK-compliant software library to accelerate firmware development for sensor-driven IoT applications.
Out of stock
The NTAG 5 LINK CLICK is a sophisticated NFC/RFID interface module built around the NXP Semiconductors NTP5332 integrated circuit. This board functions as a contactless tag and an active I²C bridge, enabling bidirectional communication between an NFC reader (like a smartphone) and any I²C slave device. It supports the NFC Forum Type 5 standard and the ISO/IEC 15693 protocol for industrial RFID readers, offering flexibility for both consumer and industrial applications.
Beyond simple data transfer, the module incorporates advanced security features including a 32-byte reprogrammable originality signature and AES mutual authentication, ensuring data integrity and device legitimacy. Its energy harvesting function allows the board to extract power from the incoming RF signal, which can be used to briefly power connected low-power sensors or logic, enabling fully passive, batteryless operation scenarios. The board is designed for reliable operation within standard embedded voltage levels and is fully tested for immediate integration.
Additional Information
| Weight | 0.05 kg |
|---|---|
| Dimensions | 7 × 5 × 3 cm |
