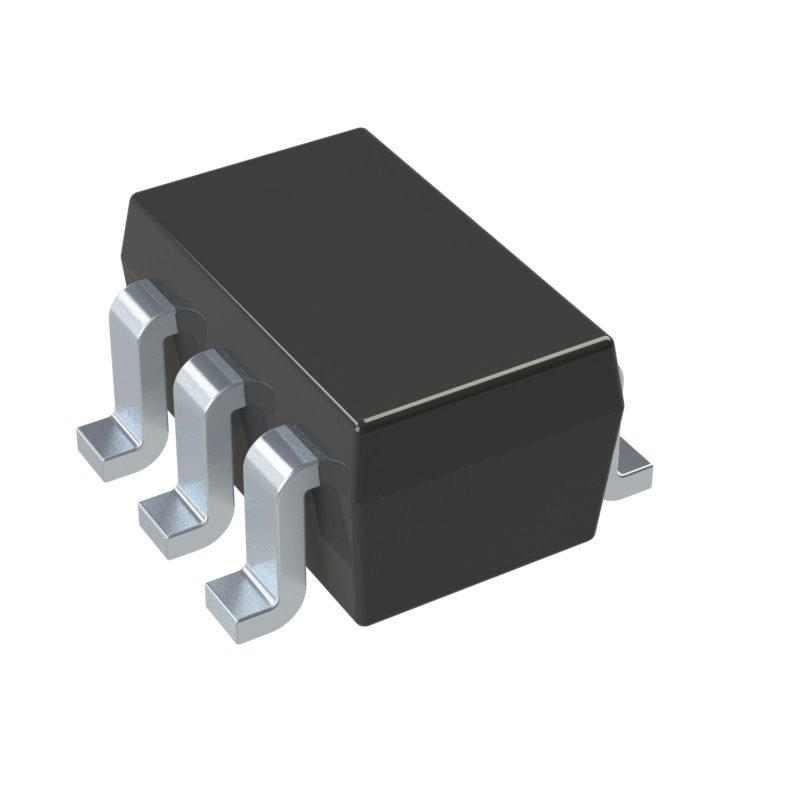

Analog Devices AD7414ARTZ-0500RL7 Digital Temperature Sensor IC, SOT23-6 Pin
The Analog Devices AD7414ARTZ-0500RL7 is a high-precision digital temperature sensor IC in a compact SOT23-6 package. It features an I2C-compatible interface for easy integration with microcontrollers like Arduino, Raspberry Pi, ESP32, and STM32, providing accurate temperature monitoring from -40°C to +125°C.
Features
- High-accuracy digital temperature sensor with ±0.5°C typical accuracy
- I2C-compatible 2-wire serial interface for simple system integration
- Wide operating voltage range from 2.7V to 5.5V for versatile power supply compatibility
- Extended industrial temperature range from -40°C to +125°C
- Compact SOT23-6 surface-mount package for space-constrained PCB designs
Out of stock
The AD7414 is a complete, monolithic temperature monitoring system from Analog Devices, integrating a bandgap temperature sensor, a 10-bit analog-to-digital converter (ADC), and an I2C interface. It converts the analog temperature signal to a digital word with a resolution of 0.25°C per LSB, providing a direct, calibrated digital readout to the host controller.
Designed for reliability in industrial and consumer applications, the sensor operates from a single 2.7V to 5.5V supply, making it compatible with 3.3V and 5V logic systems. Its small SOT23-6 footprint minimizes board space while the extended operating temperature range ensures stable performance in harsh environments.
Additional Information
| Weight | 0.01 kg |
|---|---|
| Dimensions | 1 × 1 × 1 cm |
