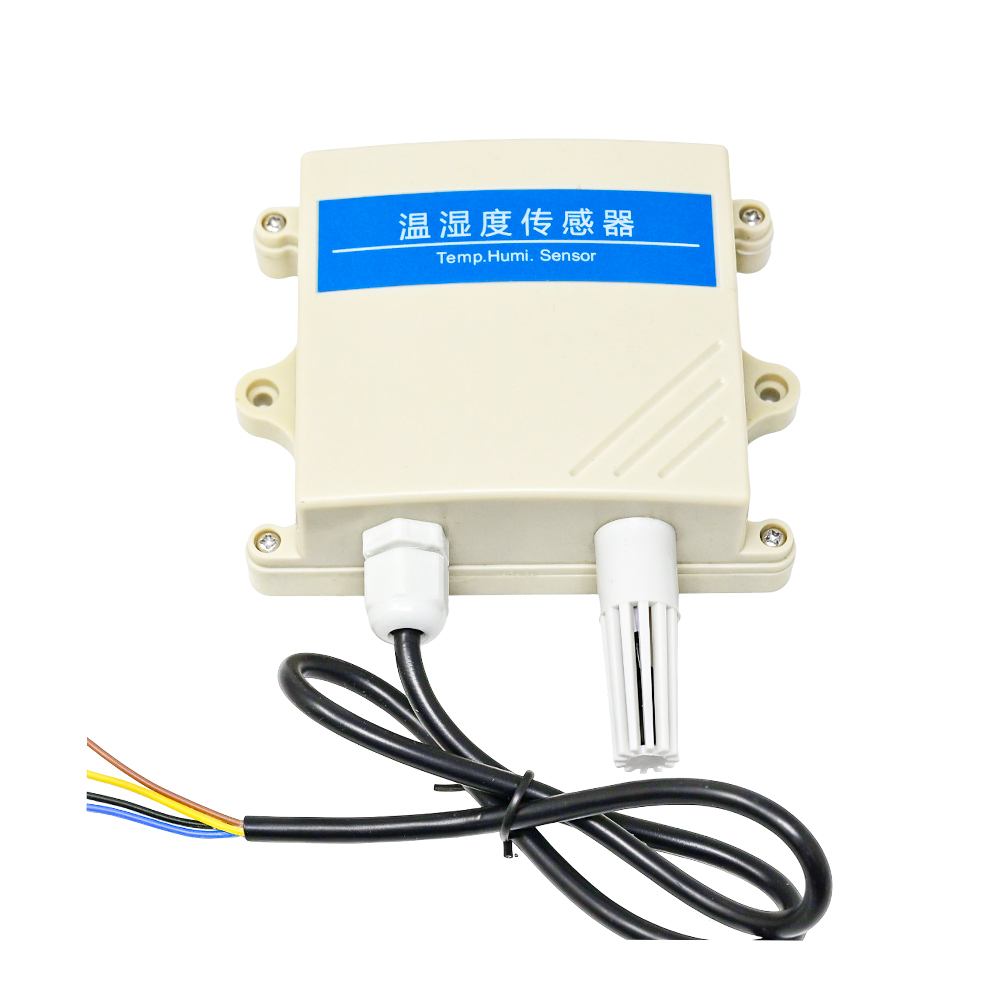

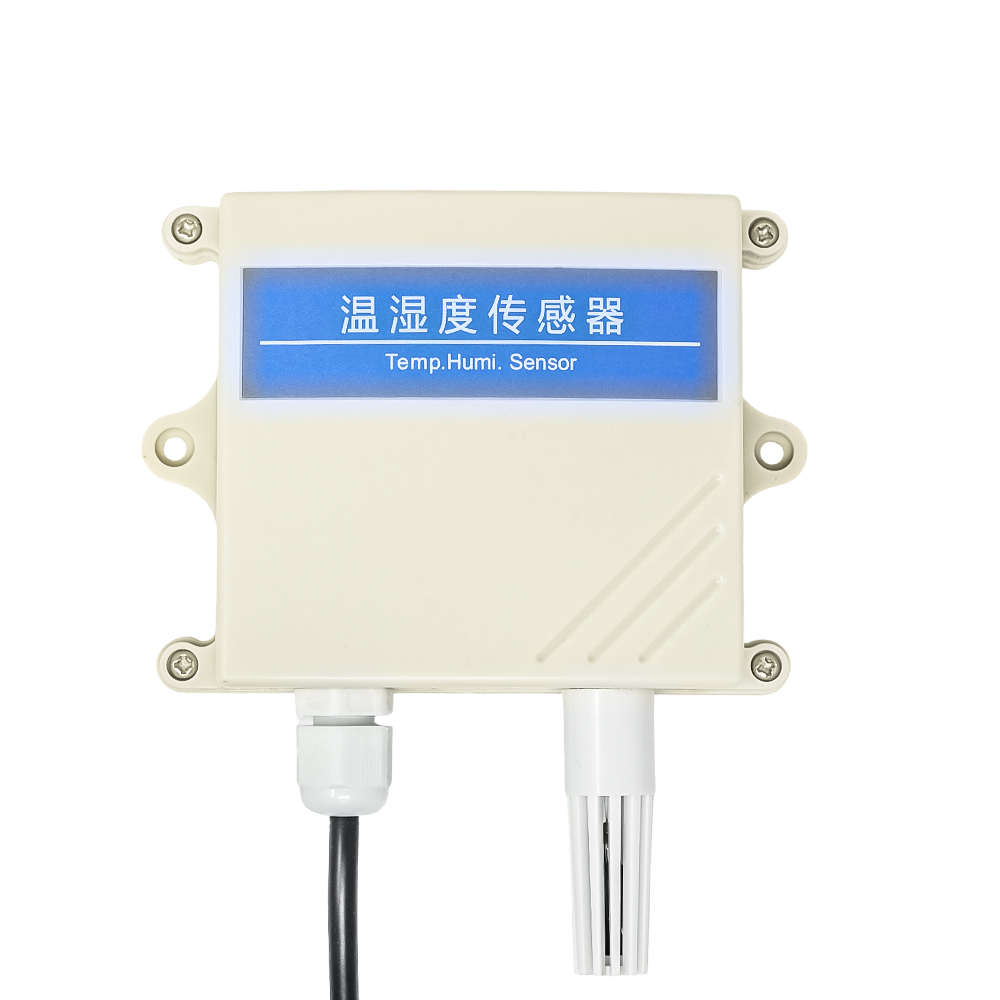

Taidacent SN-3002-WS-N01-4 Wall-Mounted Temperature and Humidity Sensor - RS485 Modbus, 4-20mA, 0-10V Output
The Taidacent SN-3002-WS-N01-4 is a wall-mounted industrial-grade temperature and humidity transmitter offering versatile analog (4-20mA, 0-10V, 0-5V) and digital (RS485 Modbus RTU) outputs for seamless integration into PLCs, SCADA systems, and building automation controllers.
Features
- High-precision sensing with ±0.5°C temperature and ±3% RH humidity accuracy.
- Dual-mode output: RS485 Modbus RTU digital protocol plus selectable 4-20mA, 0-10V, or 0-5V analog signals.
- Extended operating range from -40°C to +80°C (optionally up to +120°C) and 0-100% RH.
- Robust wall-mount design with wide 10-30V DC supply voltage and low ≤1.2W power consumption.
- Configurable Modbus address (1-254) for multi-drop network installations in industrial environments.
Out of stock
The SN-3002-WS-N01-4 utilizes high-stability sensing elements to deliver reliable environmental monitoring for critical automation and control applications. Its integrated signal conditioning circuitry provides clean, linearized outputs compatible with industry-standard data acquisition systems and programmable logic controllers.
Engineered for durability, the sensor’s compact housing is designed for permanent wall installation in demanding settings such as greenhouses, HVAC ducts, warehouses, and cleanrooms. The RS485 Modbus RTU interface supports networked monitoring with up to 254 devices on a single bus, enabling scalable system deployment.
Additional Information
| Weight | 0.113 kg |
|---|---|
| Dimensions | 11 × 8.5 × 4.4 cm |
