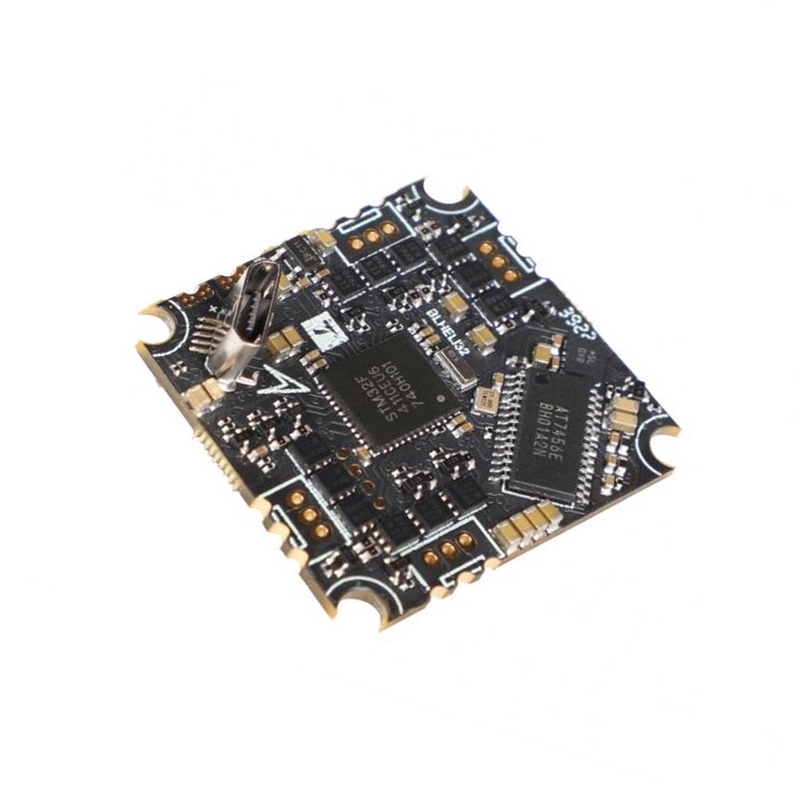

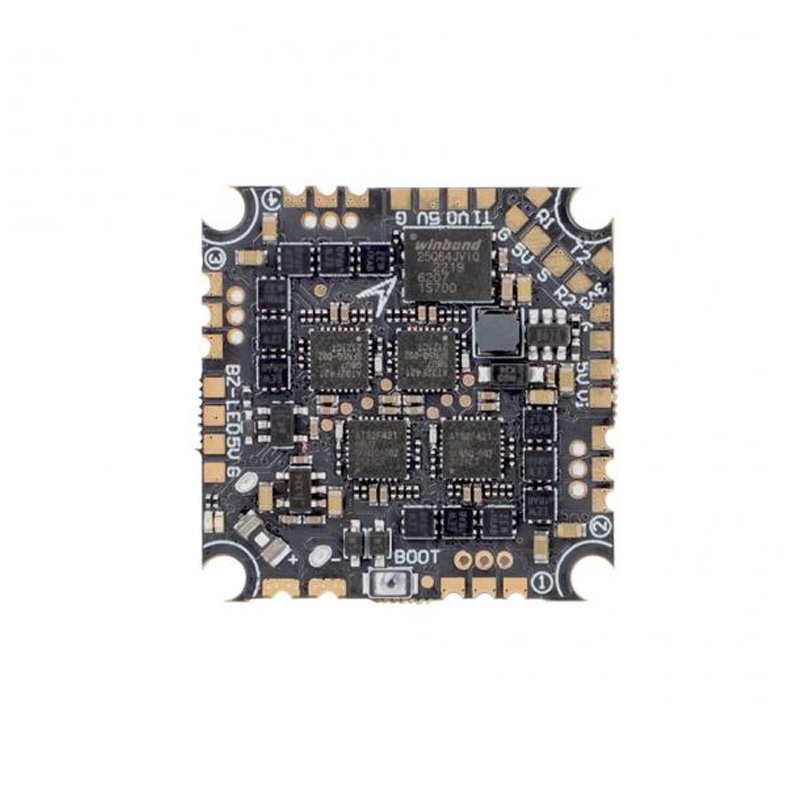

T-Motor F411 AIO 1S 13A Stack
The T-Motor F411 AIO 1S 13A Stack is a compact all-in-one flight controller and 4-in-1 ESC designed for 1S-powered micro FPV drones, including racing whoops and toothpick quads. It integrates a powerful 32-bit STM32F411 processor running Betaflight with a BLHeli_32 13A ESC, supporting direct plug-in connectivity for compatible motors.
Features
- Integrated 1S 4-in-1 ESC with 13A continuous current rating per motor.
- STM32F411 flight controller with BMI270 gyro for precise, low-noise flight control.
- BLHeli_32 firmware supports bidirectional DShot for RPM filtering and up to 96KHz PWM.
- 16MB onboard blackbox memory for detailed flight data logging and tuning.
- Direct plug-in connector compatibility for M0802 and M0803 series motors.
Out of stock
This AIO stack is engineered for the demanding power and space constraints of 1S micro builds. The STM32F411 MCU provides ample processing headroom for advanced Betaflight features, while the integrated BLHeli_32 ESCs offer smooth, efficient throttle response and support for modern telemetry protocols. The inclusion of a high-performance BMI270 gyro minimizes vibration-induced noise, crucial for stable flight in compact frames.
The board’s design prioritizes a clean, solder-free build where possible, with dedicated plug-in motor headers. It also facilitates convenient ESC configuration via the Betaflight Configurator without requiring a battery to be connected, streamlining the setup and tuning process for pilots focused on lightweight, high-performance 1S rigs.
