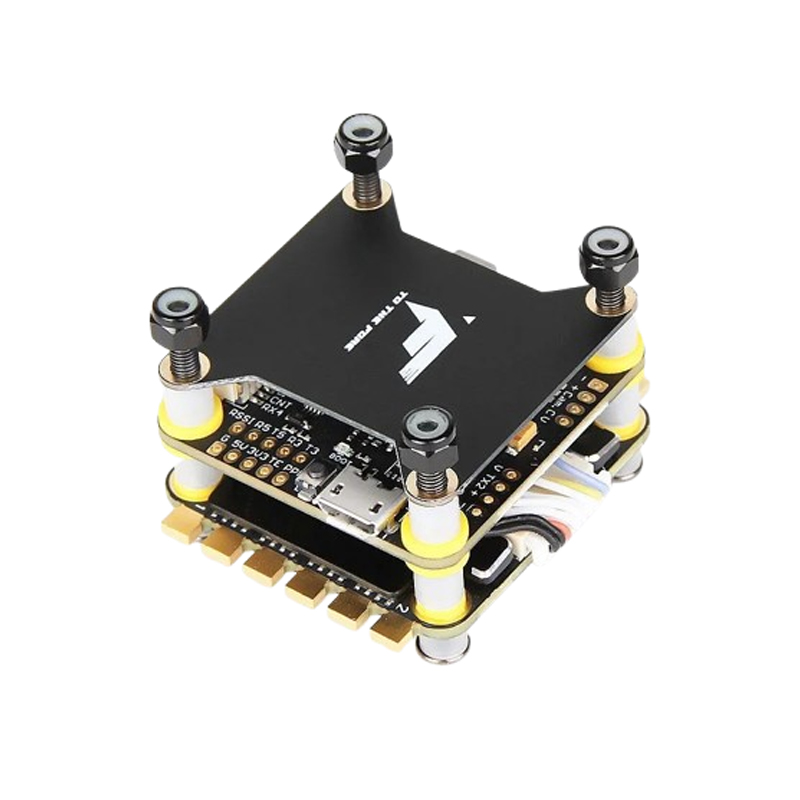

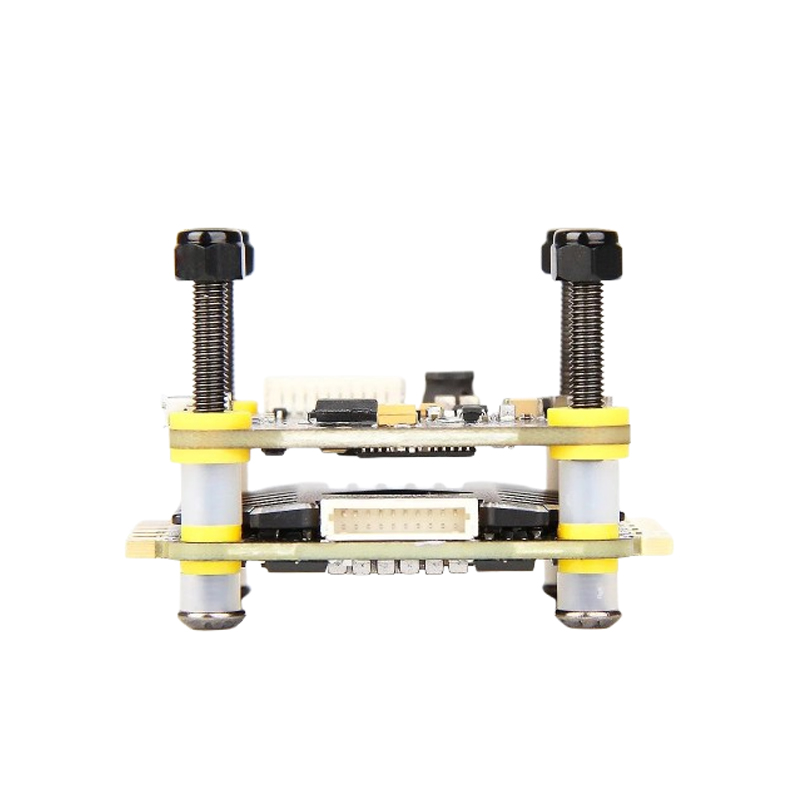

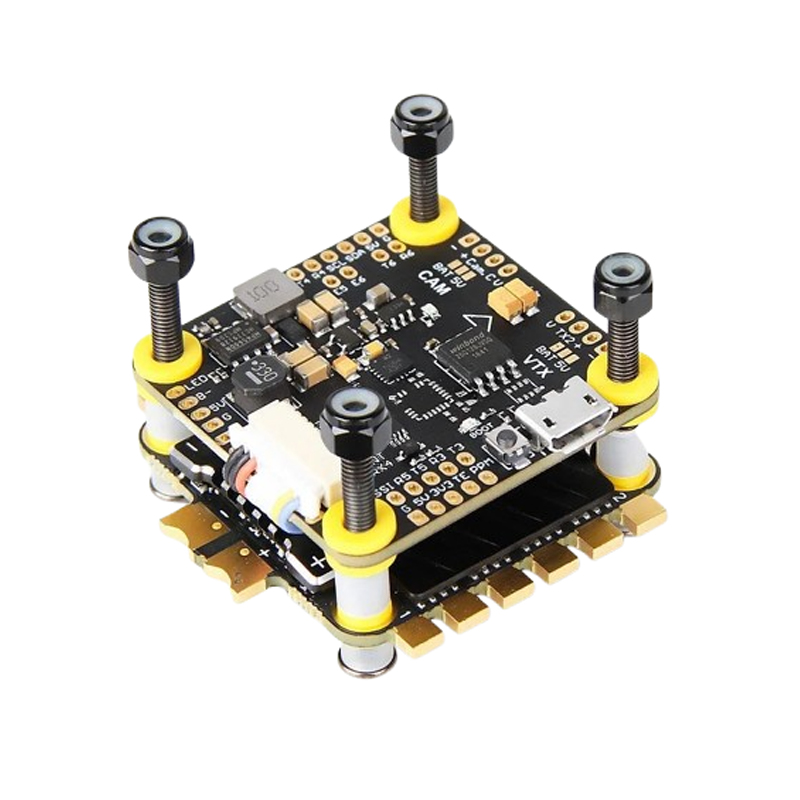

T-Motor F7+F55A Pro II HD FC & 4-in-1 55A ESC Stack
The T-Motor F7+F55A Pro II HD Stack integrates a powerful F7 Flight Controller with a 55A BLHeli_32 4-in-1 ESC, specifically optimized for DJI FPV Air Unit compatibility. This combination delivers robust performance and precise control for demanding 3-6S FPV builds.
Features
- Optimized for DJI FPV Air Unit & HD VTX systems.
- Features STMF722RET6 MCU, MPU6000 gyro, and 16MB blackbox memory.
- BLHeli_32 4-in-1 ESC with 55A continuous (75A burst) per channel.
- Integrated 10V @ 2A BEC for stable HD VTX power.
- Supports 3-6S LiPo input and DSHOT1200 protocol.
Out of stock
The T-Motor F7+F55A Pro II HD Stack represents a complete power and control solution engineered for high-performance FPV drones. This integrated system seamlessly combines the advanced F7 HD Flight Controller with the robust F55A Pro II 4-in-1 Electronic Speed Controller, providing exceptional precision and stability required for both competitive racing and freestyle flying. Its design is meticulously optimized for deep integration with DJI FPV Air Units, ensuring a streamlined build process and reliable operation.
At its core, the flight controller utilizes an STMF722RET6 MCU paired with an MPU6000 gyroscope, offering rapid processing capabilities and accurate flight data acquisition. This is complemented by 16MB of onboard flash memory for comprehensive blackbox logging. The powerful 4-in-1 ESC supports 55A continuous current per channel, with a 75A burst rating, leveraging BLHeli_32 firmware for precise motor control and DSHOT1200 protocol compatibility. A dedicated 10V at 2A BEC output ensures stable power delivery to HD FPV video transmitters, making it ideal for high-definition FPV setups. This stack provides a solid foundation for demanding 3-6S LiPo powered quadcopters.
Additional Information
| Dimensions | 9 × 9 × 6 cm |
|---|
