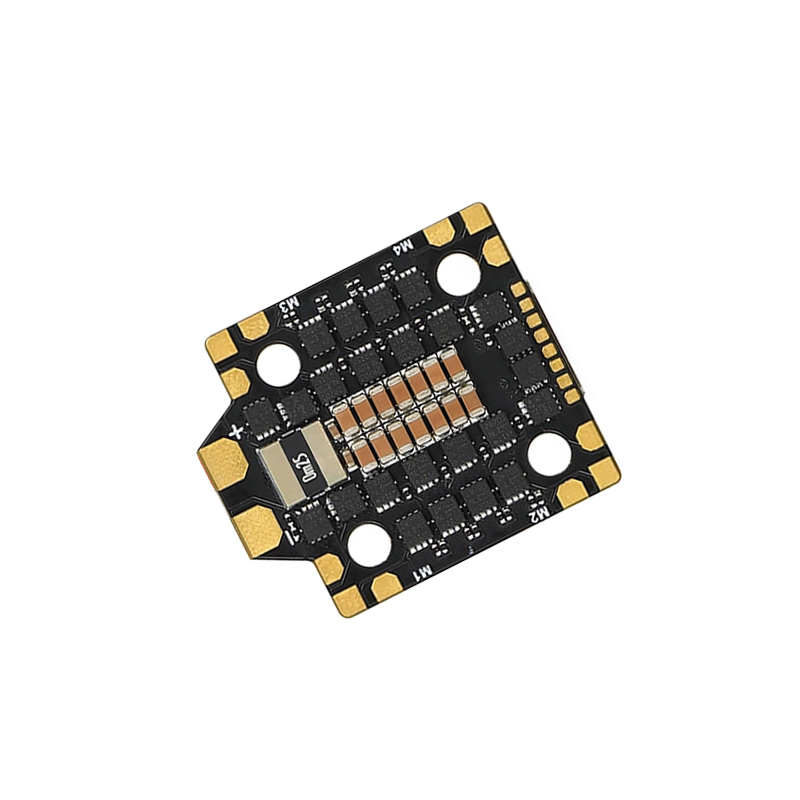

AxisFlying Argus Mini F7 Stack 40A ESC

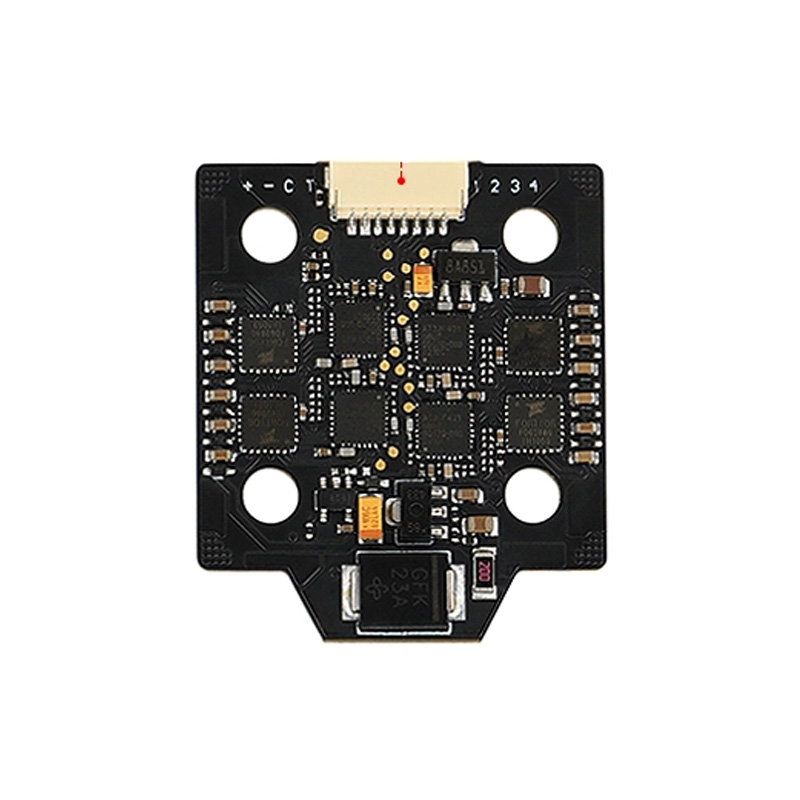

AxisFlying Argus Mini F7 Stack 40A ESC - Image 2
AxisFlying Argus Mini F7 Stack 40A ESC - Image 3
SKU: DRFC-0033
📋 GST Invoice Available

AxisFlying Argus Mini F7 Stack 40A ESC

₹8,969.00 (Inclusive of all taxes)
Out of Stock

The AxisFlying Argus Mini F7 Stack 40A ESC provides high-performance flight control and power delivery for mini FPV drones. Featuring a robust F7 flight controller and a 40A BLHeli32 ESC, it ensures precise control and efficient power distribution across 4-6S LiPo systems.

Features

  • Integrated F7 Flight Controller and 40A BLHeli32 ESC for compact builds.
  • Supports 4-6S LiPo input for versatile power requirements.
  • Real-time telemetry for critical flight data monitoring.
  • Adjustable PWM frequency (24-96 kHz) for optimized motor performance.
  • Robust AT32F421G8U7 MCU ensures reliable processing.

Out of stock

Description

The AxisFlying Argus Mini F7 Stack 40A ESC is meticulously engineered to meet the demanding requirements of high-performance mini FPV drones. This compact yet powerful unit integrates a robust F7 flight controller with a high-current 40A electronic speed controller, providing a streamlined solution for builders seeking efficiency and reliability without compromising on power. Its architecture ensures superior signal processing and stable power delivery, crucial for agile flight maneuvers and consistent motor output.

Equipped with BLHeli32 firmware, this stack delivers exceptionally smooth throttle response and precise motor control, enhancing the overall flight experience. The wide input voltage range of 4-6S LiPo (14.8-26.1V) accommodates various battery configurations, while its efficient thermal management design allows for continuous high-current operation with reduced risk of overheating. The 20x20mm mounting pattern is ideal for space-constrained mini drone frames, making it a versatile choice for both freestyle and racing setups.

Key Features

  • High Current Capacity: Continuous 40A with burst up to 50A.
  • Wide Voltage Range: Compatible with 4-6S LiPo batteries (14.8-26.1V).
  • Telemetry Support: Enables real-time flight data monitoring.
  • Adjustable PWM Frequency: Customizable from 24-96 kHz for optimal motor efficiency.
  • Compact and Lightweight Design: Measures 37 x 31.3 x 6.2 mm, weighing only 8.2g.
  • BLHeli32 Compatibility: Ensures smooth throttle response and precise motor control.
  • Robust MCU: Powered by AT32F421G8U7 for reliable processing.

Applications

  • FPV racing drones
  • Mini FPV freestyle drones
  • Compact cinematic FPV builds
  • Micro long-range FPV platforms

Technical Specifications

Model No. / NameArgus Mini F7 Stack 40A ESC
ESC TypeBLHeli32_ATF4_04 - Rev. 32.9
Main Control (MCU)AT32F421G8U7
Continuous Discharge Current40A
Burst Current50A
Mounting Hole Diameter20 x 20 mm (M2/M3)
BEC OutputNot Supported
TelemetrySupported
PWM Frequency Range24-96 KHz
Rated Voltage4-6S LiPo (14.8-26.1V)
Dimensions37 x 31.3 x 6.2 mm
Weight8.2 g

Frequently Asked Questions

What input voltage does the AxisFlying Argus Mini F7 Stack support?

This F7 Stack is designed for a wide voltage range, supporting 4-6S LiPo batteries, which translates to 14.8V to 26.1V. This flexibility allows pilots to use various battery configurations to power their mini FPV drones, ensuring optimal performance and compatibility across different setups and flight styles.

What firmware is compatible with the 40A ESC on this stack?

The 40A ESC on the Argus Mini F7 Stack is fully compatible with BLHeli32 firmware (Rev. 32.9). This advanced firmware enables precise motor control, smooth throttle response, and allows for adjustable PWM frequency, which is crucial for maximizing efficiency and responsiveness in high-performance FPV applications.

What are the key mounting dimensions and features for installation?

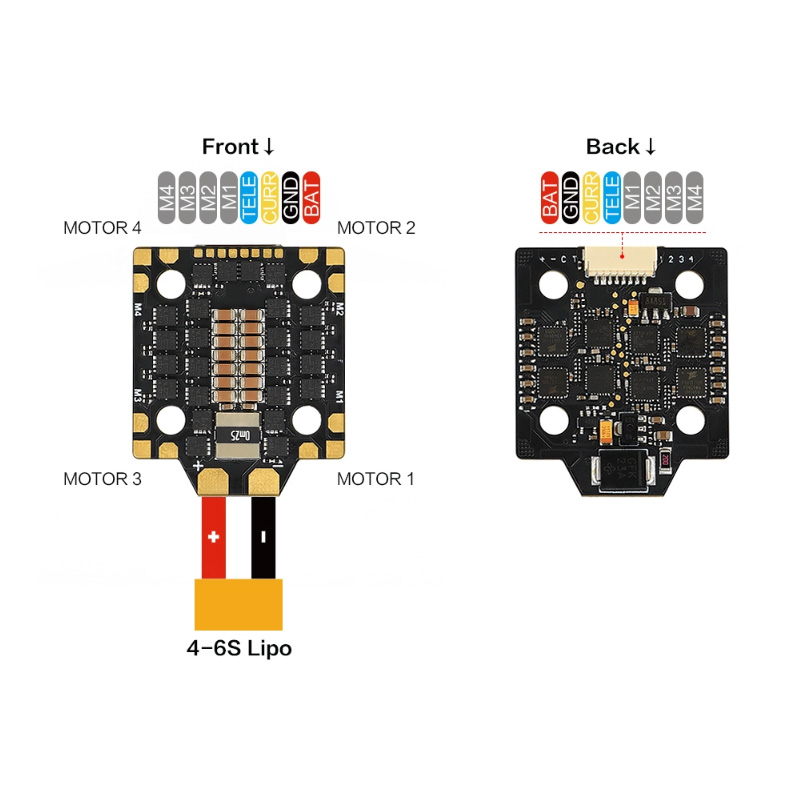

The AxisFlying Argus Mini F7 Stack features a compact 20x20mm mounting pattern, suitable for M2 or M3 screws, making it ideal for mini FPV drone frames. It also supports telemetry for real-time data monitoring and offers adjustable PWM frequency (24-96 kHz) to fine-tune motor performance.

Can this stack be used for both FPV racing and freestyle drones?

Yes, the AxisFlying Argus Mini F7 40A ESC Stack is highly versatile and optimized for both FPV racing and freestyle applications. Its robust F7 flight controller, high current capacity (40A continuous, 50A burst), and BLHeli32 compatibility provide the necessary power and precision for aggressive maneuvers and demanding flight conditions.

Package Includes

  • 1 x AxisFlying Argus Mini F7 STACK 40A ESC
  • 1 x Short Wire
  • 1 x Long Wire
  • 1 x 35V 270μF Capacitor
  • 8 x Damping Ring
  • 1 x HD VTX Wire
  • 4 x M2 x 25 Screw
  • 4 x M2 Locknut
  • 1 x XT60 Power Cable

Additional Information

Weight 0.0082 kg
Dimensions 3.7 × 3.13 × 0.62 cm
