FlySpark F4 V1 BLS 60A Stack
The FlySpark F4 V1 BLS 60A Stack is an integrated flight controller and 4-in-1 ESC combo designed for high-performance FPV drones, supporting Betaflight, INAV, and ArduPilot firmware with native 3S-6S LiPo input and DJI digital system compatibility.
Features
- AI-enhanced FlySpark F4 V1 FC with STM32F405 MCU and ICM-42688-P IMU for precise flight control.
- Integrated BLS 60A 4-in-1 ESC with BLHeli_S firmware for robust power delivery on 3S-6S LiPo.
- Direct DJI Air Unit (O3/Vista) support via dedicated 6-pin connector and wiring harness.
- Built-in Bluetooth module for wireless MSP configuration and tuning via smartphone apps.
- Compact 30.5×30.5mm mounting footprint with a lightweight 10.5g design for tight builds.
Out of stock

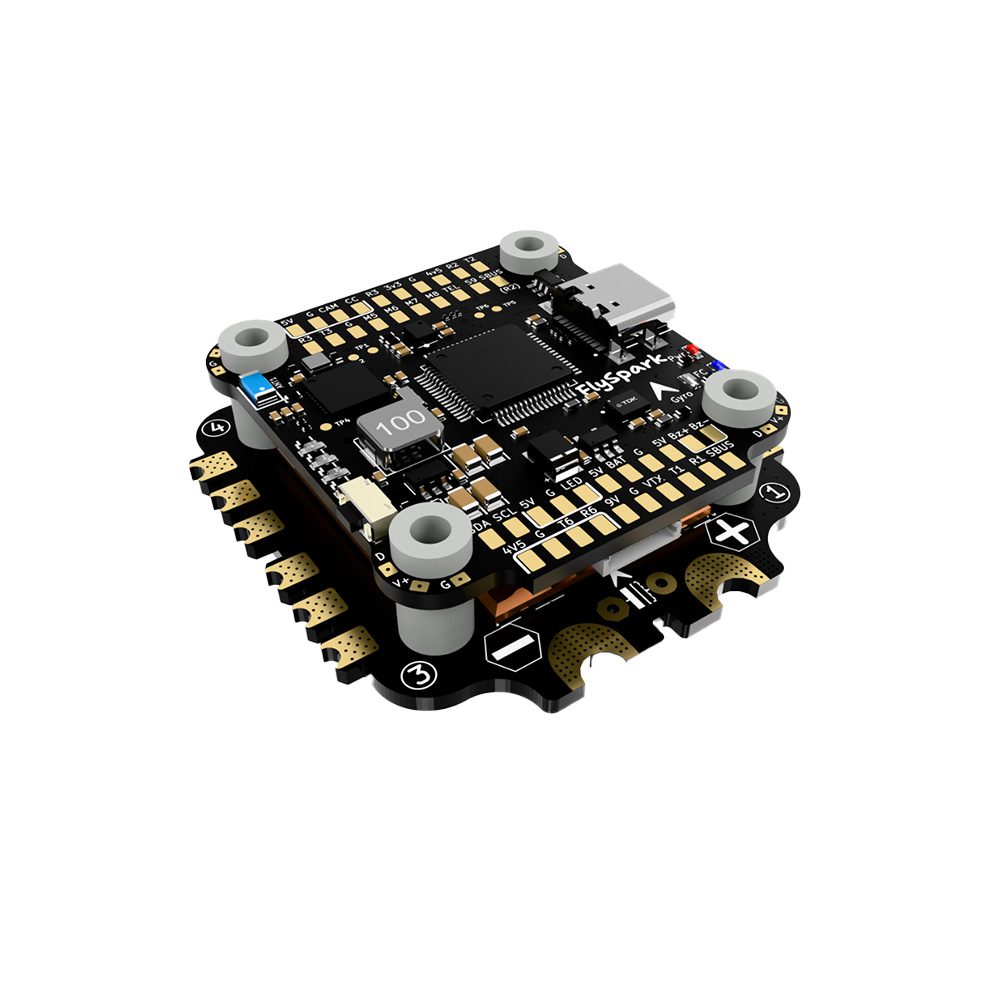

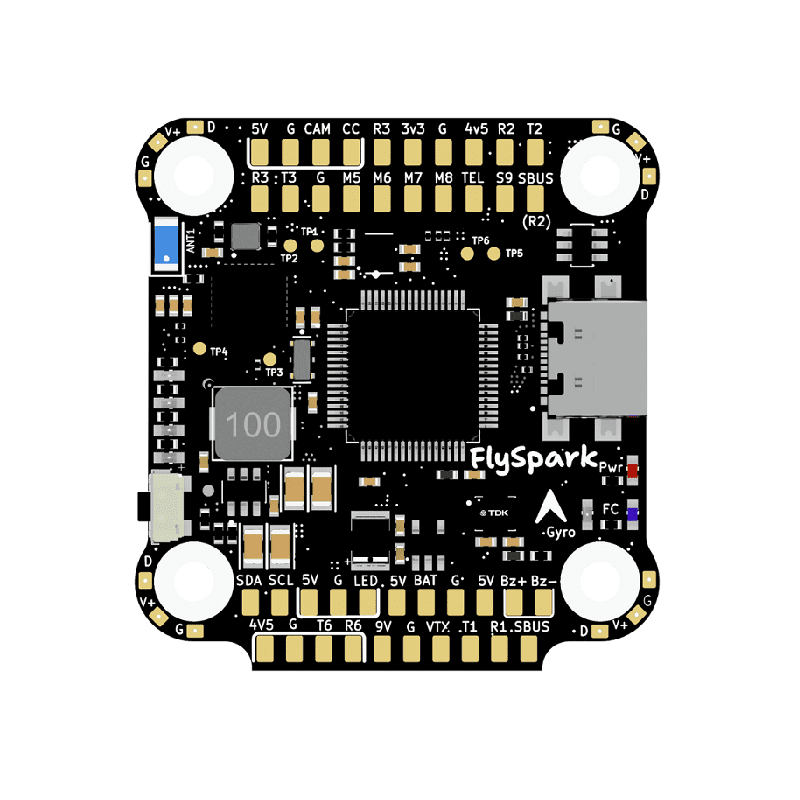

The FlySpark F4 V1 BLS 60A Stack combines a feature-rich flight controller with a high-current electronic speed controller in a unified 30.5×30.5mm mounting package. The flight controller leverages an STM32F405 processor and a high-precision ICM-42688-P IMU, providing a stable sensor foundation for acrobatic flight and autonomous navigation modes across multiple supported firmware platforms.

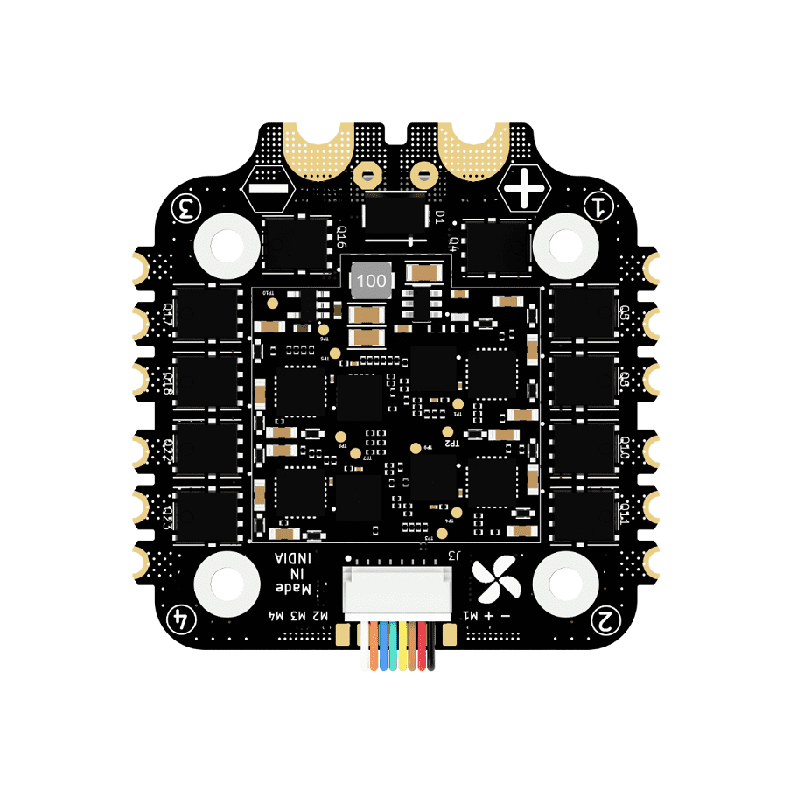

The integrated BLS 60A 4-in-1 ESC is built on BLHeli_S firmware, offering reliable bidirectional DShot support and efficient power management for demanding 5-inch and 6-inch freestyle or racing quadcopters. The stack’s electrical design includes a 6-pin connector for seamless integration with DJI’s digital HD FPV systems, eliminating the need for complex wiring.
Additional Information
| Weight | 0.0105 kg |
|---|---|
| Dimensions | 4.78 × 4.75 × 1.83 cm |
