BotLab Dynamics BotStack BotWing F722 FC & BotDrive AM32 4-in-1 55A ESC Combo
The BotStack BotWing F722 FC and BotDrive AM32 4-in-1 55A ESC combo is a high-performance, solderless flight stack designed for 2S-6S LiPo FPV drones. Featuring an STM32F722 MCU with ICM42688P gyro and an AM32-based 55A ESC, it offers precise control and robust power delivery for racing, freestyle, and advanced autonomous builds.
Features
- STM32F722 Flight Controller with ICM42688P gyro and 32MB Blackbox for precise, data-rich flight control.
- AM32 4-in-1 ESC delivers 55A continuous (60A burst) per motor with full support for DSHOT300/600 and telemetry.
- Solderless design with extensive pre-crimped cable harness for quick, reliable installation and reduced wiring errors.
- Broad firmware compatibility with BetaFlight & iNav on the FC and AM32/BLHeli_S on the ESC for versatile setup.
- Comprehensive I/O including 5 UARTs, integrated 5V/9V BECs, camera control, and support for GPS, VTX, and LED modules.
Out of stock

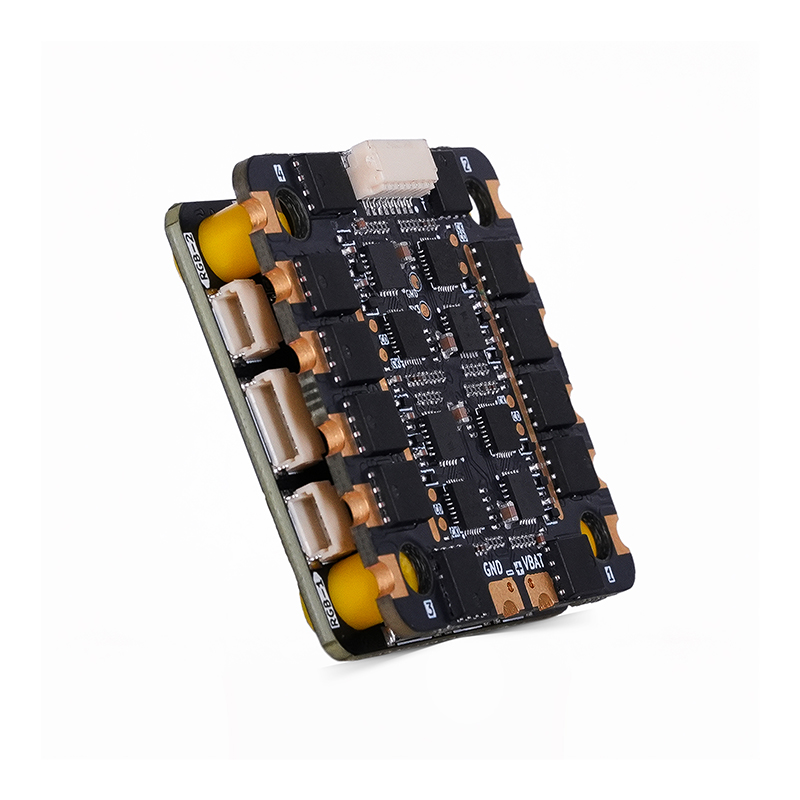

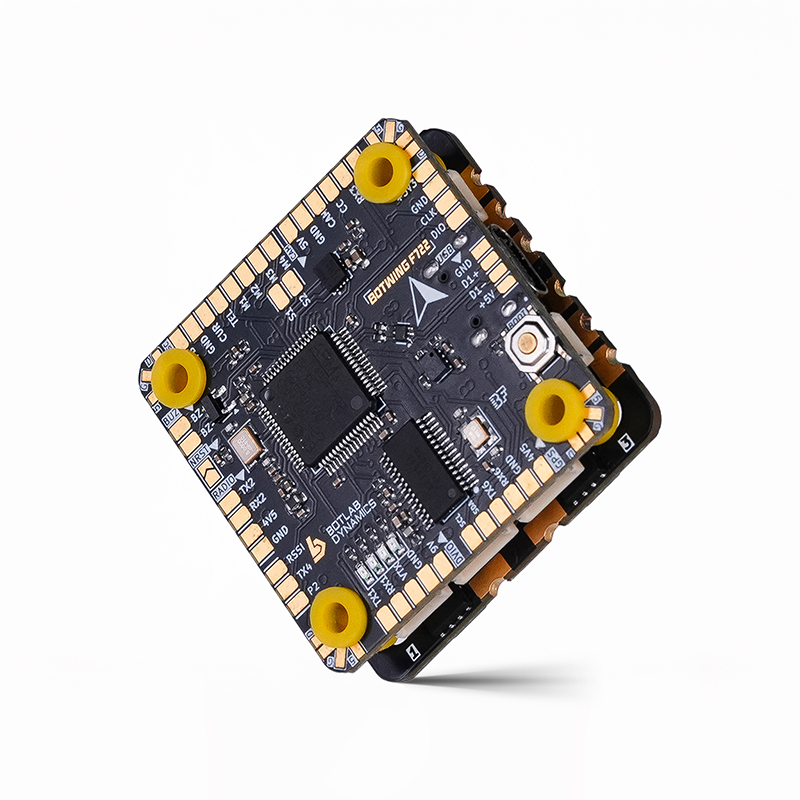

The BotStack combo integrates a feature-rich F722 flight controller with a powerful AM32 4-in-1 ESC into a unified 30.5×30.5mm mounting stack. The FC’s STM32F722 MCU provides ample processing power for complex flight algorithms, while the low-noise ICM42688P gyro ensures stable and responsive handling. The inclusion of a DPS310 barometer and 32MB of onboard flash memory supports advanced navigation and detailed flight logging.

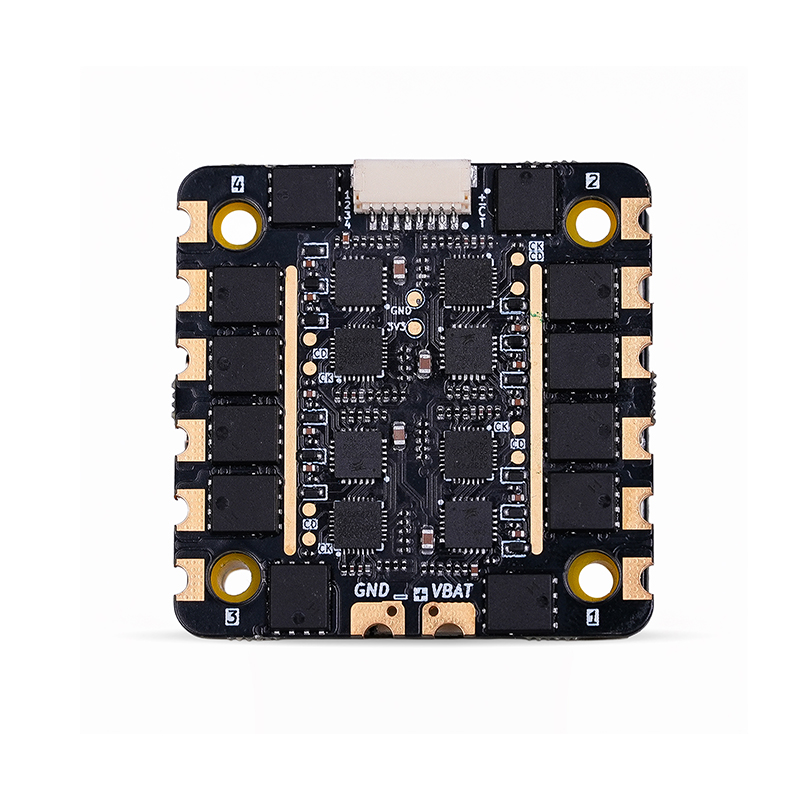

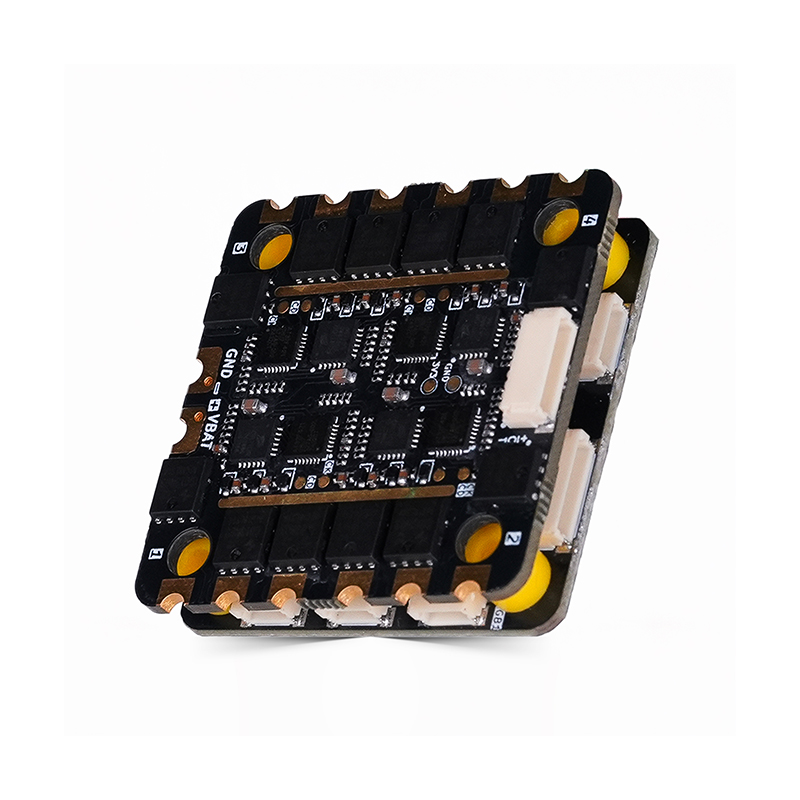

The BotDrive ESC is built around an AT32F421G8U7 MCU running AM32 firmware, known for its smooth throttle response and advanced motor timing control. With a 2S-6S LiPo input range and robust 55A continuous current rating per motor, it is capable of driving high-performance 2207-2507 class motors on aggressive 5-inch and 6-inch freestyle and racing quadcopters. The stack’s design emphasizes thermal management and electrical cleanliness, with included low-ESR capacitors to minimize voltage spikes.
Additional Information
| Weight | 0.344 kg |
|---|---|
| Dimensions | 25 × 12 × 7 cm |
