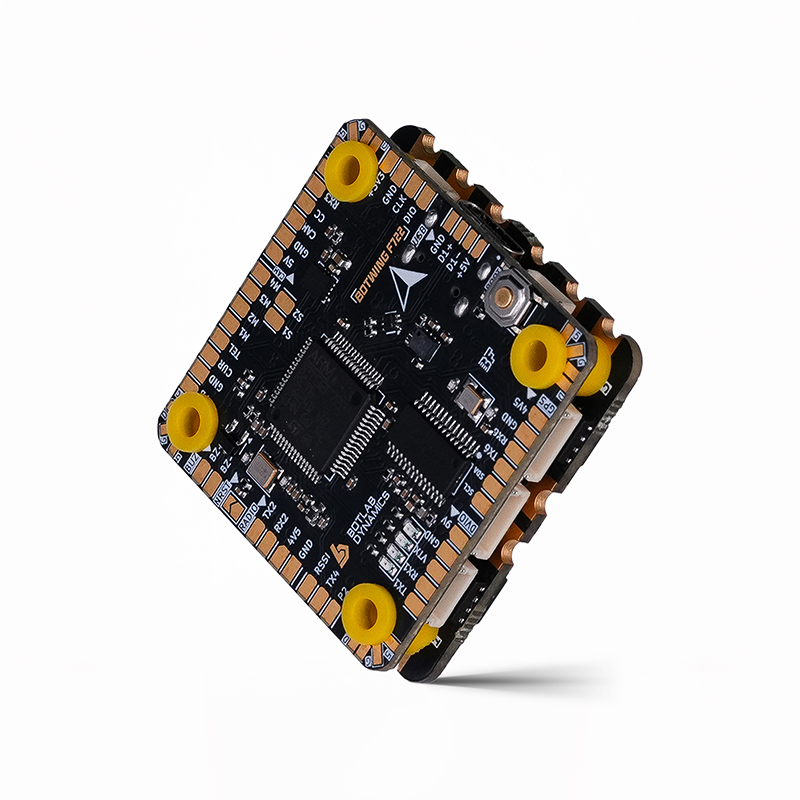

BotLab Dynamics BotWing F722 Flight Controller and BotDrive 4-in-1 ESC 50A Combo

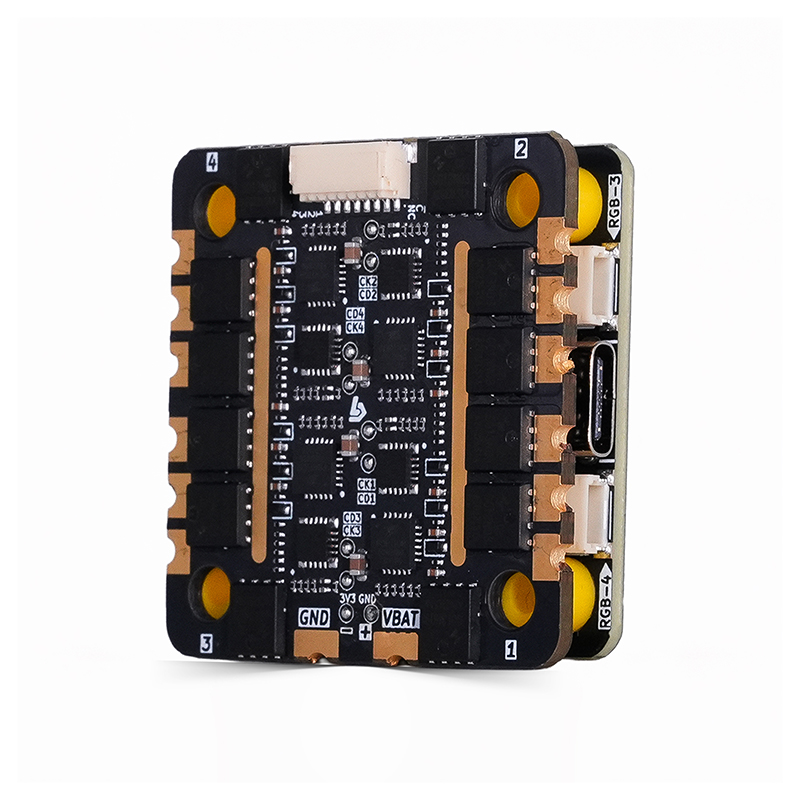

BotLab Dynamics BotWing F722 Flight Controller and BotDrive 4-in-1 ESC 50A Combo - Image 2
SKU: DRFC-1846
📋 GST Invoice Available

BotLab Dynamics BotWing F722 Flight Controller and BotDrive 4-in-1 ESC 50A Combo

₹7,399.00 (Inclusive of all taxes)
Out of Stock

The BotLab Dynamics BotStack F722 FC and BotDrive 50A 4-in-1 ESC Combo delivers a high-performance, solderless flight control solution for 2S-6S FPV drones. Featuring an STM32F722 MCU with ICM42688P gyro and a 50A continuous (60A burst) ESC, it is fully compatible with Betaflight and iNav firmware for versatile racing, freestyle, and navigation builds.

Features

  • High-precision STM32F722 flight controller with ICM42688P gyro and DPS310 barometer for stable flight.
  • BotDrive 50A 4-in-1 ESC supports 2S-6S LiPo with 60A burst current per motor for aggressive maneuvers.
  • Solderless design with comprehensive cable harness for quick, clean installation and maintenance.
  • Extensive connectivity: 5 UARTs, dedicated DJI/CaddxFPV FPV port, OSD, 32MB Blackbox, and camera control.
  • Robust power delivery with onboard 5V 3A, 9V 2.5A BECs and support for DSHOT300/600 ESC protocols.

Out of stock

Description

The BotLab Dynamics BotStack integrates a feature-rich F722 flight controller and a powerful 50A 4-in-1 ESC into a single, cohesive unit. The flight controller’s STM32F722 processor provides ample processing headroom for complex flight algorithms, while the low-noise ICM42688P gyro ensures precise attitude control. The inclusion of a DPS310 barometer enables altitude hold and advanced navigation features in iNav.

The paired BotDrive ESC utilizes high-quality FD6288Q MOSFET drivers and is pre-configured with BLHeli_S firmware, offering smooth, responsive motor control across a wide 2S to 6S voltage range. The stack’s electrical design includes multiple high-current BEC regulators (5V/3A, 9V/2.5A) to power peripherals reliably, and its physical layout is optimized for clean signal paths and thermal management.

Key Features

  • STM32F722VET6 microcontroller delivers high-speed processing for Betaflight and iNav flight stacks.
  • ICM42688P high-performance 6-axis gyro/accelerometer provides low-noise, high-fidelity inertial data.
  • BotDrive 50A 4-in-1 ESC with FD6288Q drivers, supporting DSHOT300/600 for ultra-low latency communication.
  • Comprehensive I/O: Five UARTs (UART1-VTX, UART2-RX, UART3-Cam, UART4-ESC, UART6-GPS), dedicated DJI/CaddxFPV digital VTX port, and I2C for external sensors.
  • Integrated AT7456E OSD chip for customizable on-screen display of battery voltage, RSSI, and flight data.
  • Onboard 32MB flash memory for extensive Blackbox flight data logging and analysis.
  • Robust power system with 5V/3A and 9V/2.5A BECs, plus a dedicated 4.5V pad for receiver and GPS modules.
  • Solderless installation system with pre-assembled cable harnesses for FC-ESC, power, and peripheral connections.

Applications

  • High-performance 5-inch FPV racing drones requiring stable control and powerful 6S propulsion.
  • Freestyle quadcopters where robust ESCs (50A continuous) are needed for aggressive throttle punches and dives.
  • Long-range or autonomous iNav builds utilizing the barometer, multiple UARTs, and GPS connectivity.
  • Digital HD FPV builds (DJI, CaddxFPV, Walksnail) leveraging the dedicated digital VTX port and 9V BEC.
  • Heavy-lift or larger multirotor platforms where reliable 2-6S power distribution and extensive peripheral support are critical.

Technical Specifications

Item TypeFlight Controller & ESC Stack
FC MCUSTM32F722VET6
FC Gyro/IMUICM42688P
FC BarometerDPS310XTSA1
ESC MCUEFM8BB21F16G
ESC FirmwareBLHeli_S
Continuous Current per ESC50A
Burst Current per ESC60A
Input Voltage2S-6S LiPo (7.4V-25.2V)
ESC ProtocolsDSHOT300, DSHOT600, PWM
Onboard BECs5V 3A, 9V 2.5A, 3.3V 500mA
Blackbox Storage32MB Flash
OSDAT7456E
USB InterfaceType-C
Mounting Pattern30.5 x 30.5 mm (M3)
FC Dimensions40 x 40 mm
ESC Dimensions40 x 41 mm
Total Weight (with accessories)278 g

Frequently Asked Questions

What firmware is the BotWing F722 flight controller compatible with?

The BotWing F722 flight controller is designed for Betaflight and iNav firmware. The target name in these configurators is 'BOTWING F722'. Its STM32F722 MCU provides ample processing power for both firmware's advanced features, including PID tuning, GPS navigation, and Blackbox logging.

What is the maximum voltage and burst current for the BotDrive 4-in-1 ESC?

The BotDrive 4-in-1 ESC supports a 2S to 6S LiPo input voltage range (7.4V to 25.2V). Each of the four ESCs is rated for 50A continuous current and can handle burst currents of up to 60A for short durations, making it suitable for aggressive freestyle flying and high-performance racing on 6S batteries.

Does this stack include everything needed for a solderless build?

Yes, the combo is designed for a primarily solderless installation. It includes a comprehensive set of pre-crimped connector cables for linking the FC to the ESC, power leads (XT60), and peripherals. The only soldering typically required is attaching the provided low-ESR capacitor to the ESC's main power pads for optimal noise filtering.

What peripherals can I connect to the BotWing F722 flight controller?

The FC offers extensive connectivity: five UARTs (for VTX, receiver, camera, ESC telemetry, and GPS), a dedicated DJI/CaddxFPV digital VTX port, I2C pads for a magnetometer, dedicated camera control pads, RSSI input, and multiple LED pads. The onboard 5V/3A and 9V/2.5A BECs can power most FPV cameras, VTXs, and receivers.

Package Includes

  • 1 x BotWing F722 Flight Controller
  • 1 x BotDrive 50A 4-in-1 ESC
  • 1 x USB-C Port Protector
  • 1 x 35V 1000uF Low ESR Capacitor
  • 1 x XT60 Power Cable (70mm length)
  • 9 x M3 Anti-Vibration Silicone Grommet Inserts (5 for FC, 4 for ESC)
  • 1 x JST-SH 1.0mm 8-pin FC-ESC Connection Cable (30mm)
  • Assorted Connector Cables: 5 x 4-pin (150mm & 180mm), 2 x 8-pin (50mm & 30mm), 2 x 6-pin (60mm & 80mm), 1 x 5-pin (60mm)

Additional Information

Weight 0.344 kg
Dimensions 25 × 12 × 7 cm
