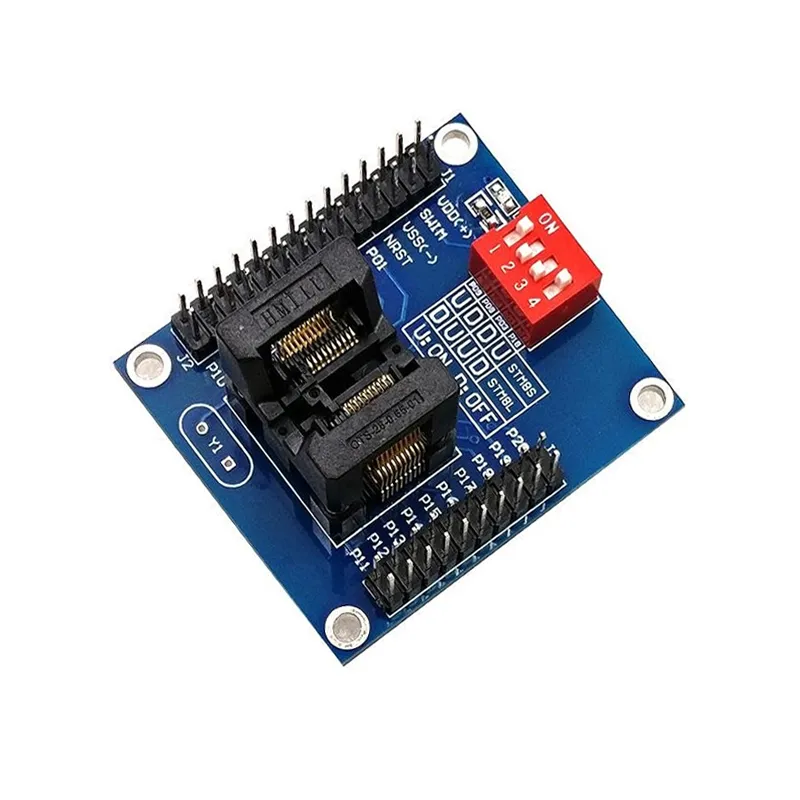

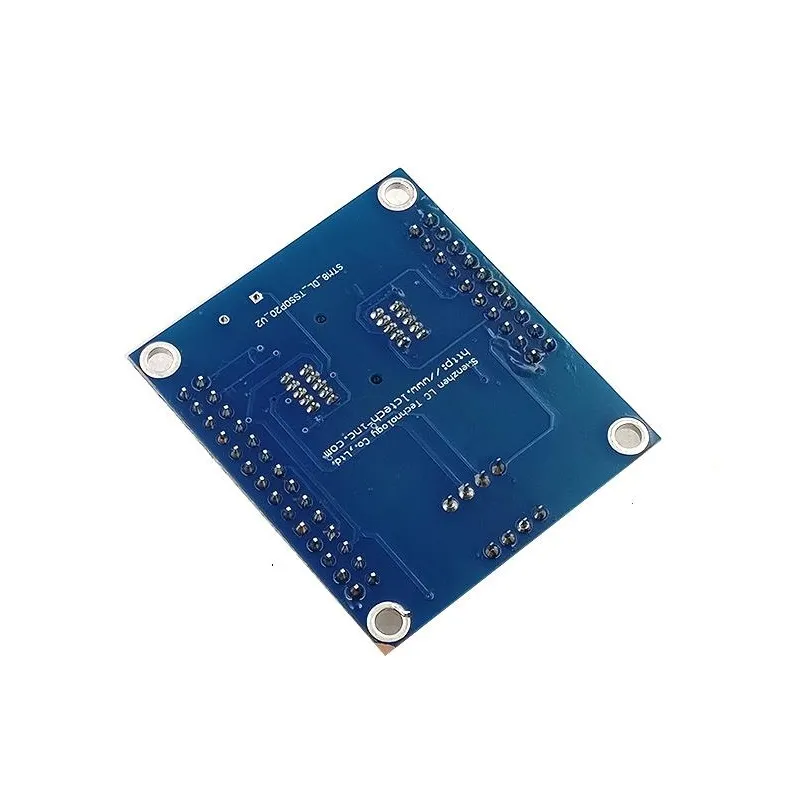

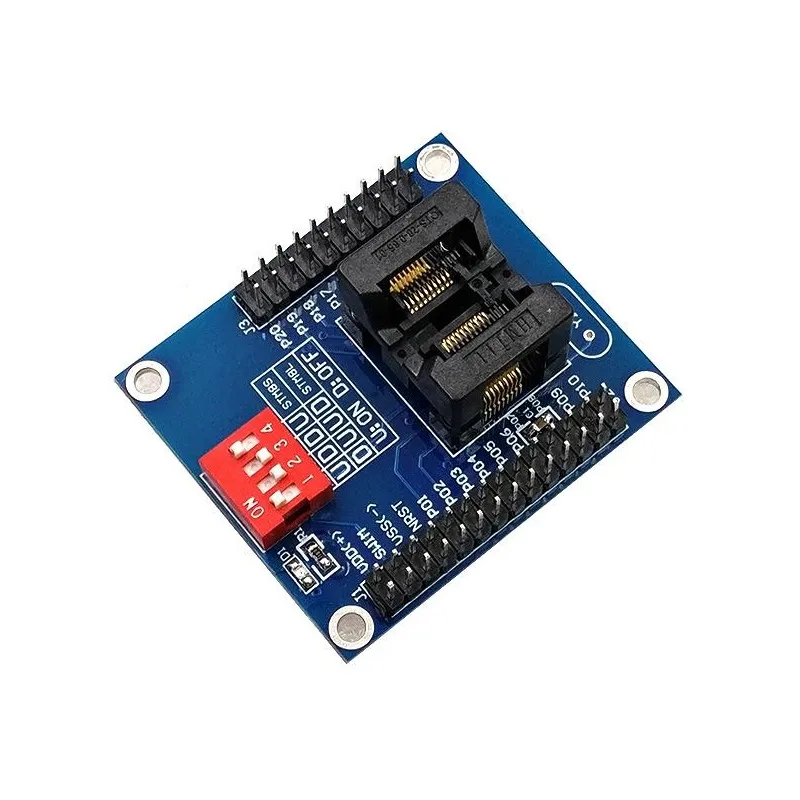

STM8S/STM8L TSSOP20 Programming & Testing Holder
This versatile programming and testing holder supports STM8S and STM8L series microcontrollers in a TSSOP20 package. It features a high-quality gold-plated chip carrier and SWIM interface, making it ideal for offline burning and development tasks.
Features
- High-quality gold-plated TSSOP20 chip carrier ensures stable, reliable contact.
- Integrated SWIM interface for direct microcontroller programming and debugging.
- Supports external crystal oscillator connectivity for flexible clocking.
- All 20 MCU pins are broken out for easy circuit integration and testing.
- Selectable mode for STM8S or STM8L series programming via DIP switch.
Out of stock
The STM8S/STM8L TSSOP20 Burning Testing Holder provides a stable and reliable platform for developing and programming STMicroelectronics’ 8-bit microcontrollers. Designed to accommodate most TSSOP20 packages with a 0.65 mm pin spacing, this tool is essential for engineers and makers working with the STM8L and STM8S series. Its imported gold-plated chip carrier ensures excellent electrical contact and durability, critical for repeated burning and testing cycles.
This holder integrates a SWIM (Single Wire Interface Module) interface, enabling direct communication for programming, debugging, and testing. Users can easily switch between STM8S and STM8L modes using a four-dial code switch. Furthermore, all 20 microcontroller I/O pins are conveniently broken out via 2.54 mm double-row headers, facilitating seamless integration into custom circuits and prototype setups. The provision for an external crystal oscillator allows for flexible clocking configurations tailored to specific application needs.
Additional Information
| Weight | 0.075 kg |
|---|---|
| Dimensions | 4 × 5 × 3 cm |
