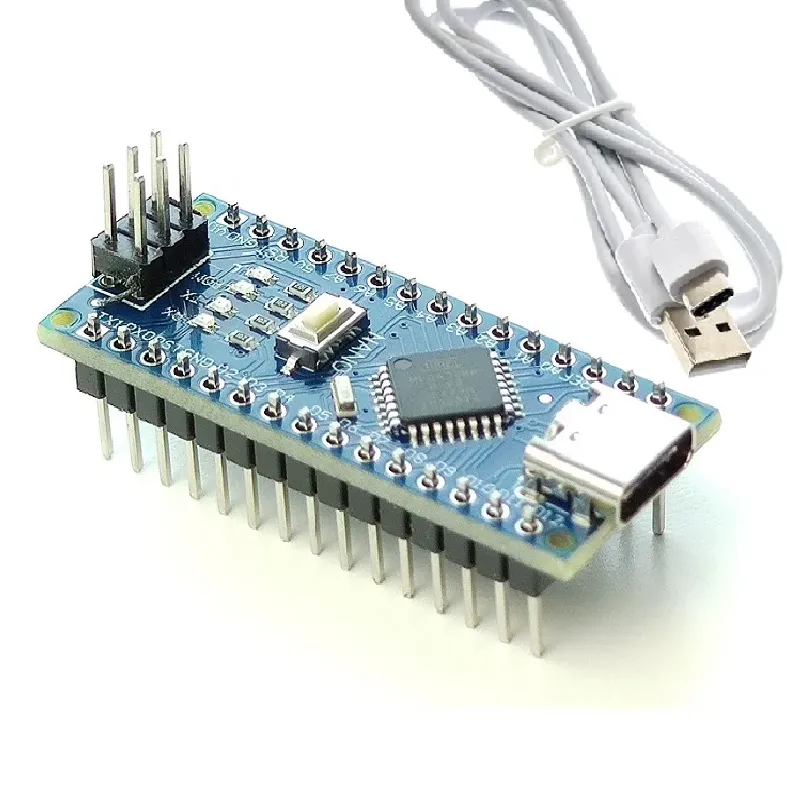

Nano V3.0 ATmega328P CH340 Type-C with Cable

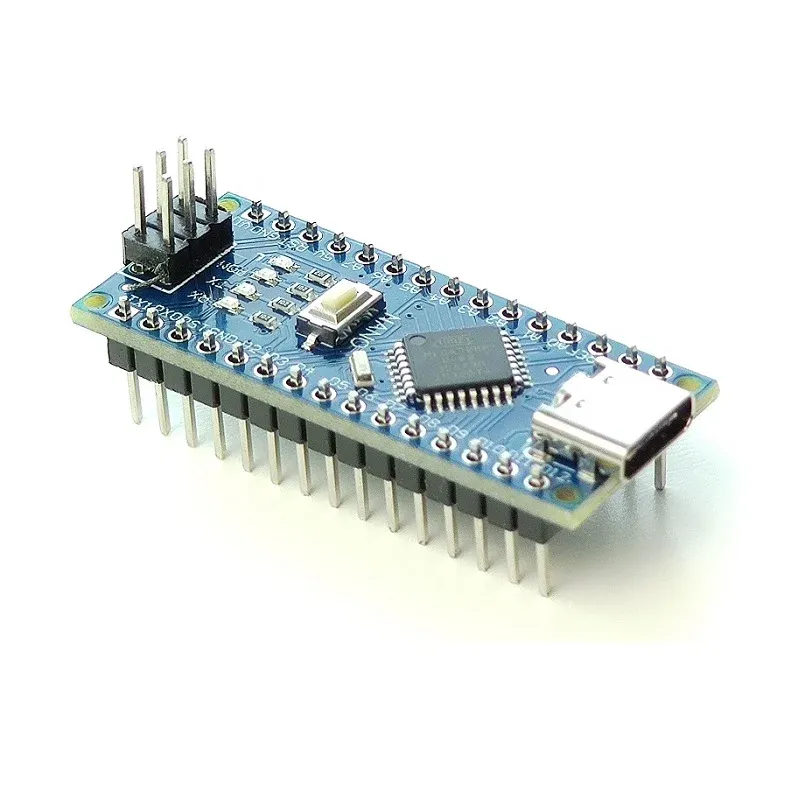

Nano V3.0 ATmega328P CH340 Type-C with Cable - Image 2
SKU: SBCD-0300
📋 GST Invoice Available

Nano V3.0 ATmega328P CH340 Type-C with Cable

₹209.00 (Inclusive of all taxes)
Out of Stock

The Nano V3.0 is a compact Arduino-compatible development board featuring the ATmega328P microcontroller, equipped with a modern CH340 Type-C USB interface for reliable connectivity. This board provides essential I/O for various embedded projects, making it a versatile choice for makers and developers.

Features

  • Compact Arduino-compatible development board based on the ATmega328P MCU.
  • Integrated CH340 USB-to-serial converter with Type-C port for modern connectivity.
  • Offers 14 digital I/O pins (6 PWM) and 8 analog input pins.
  • Supports a wide input voltage range (7-12V recommended, 6-20V max) via dedicated pins.
  • Includes a 30cm Type-C cable and unsolderd headers, providing immediate out-of-the-box functionality.

Out of stock

Description

This Arduino-compatible Nano V3.0 microcontroller is a small, complete development board based on the ATmega328P MCU. It delivers functionality comparable to the Arduino Duemilanove, but in a significantly smaller package, making it ideal for space-constrained projects. The Nano V3.0 ATmega328P, operating at 5V and 16MHz, features a CH340 Type-C USB interface, ensuring full compatibility with Arduino programs and the Arduino IDE for seamless development.

The board offers flexible power options, capable of accepting an unregulated external supply between 6V and 20V via pin 30 (Vin) or a regulated 5V external supply via pin 27 (5V). The power source is automatically selected to utilize the highest available voltage. Its integrated CH340G USB bus converter chip ensures reliable communication and programming, serving as a modern and robust alternative to older FT232RL designs.

Designed with user flexibility in mind, this board is supplied with connector pins (headers) that are not pre-soldered. This allows for customized integration and mounting tailored to specific project needs. The Nano V3.0 also supports In-System Programming (ISP) download, further enhancing its utility for advanced firmware development and deployment.

Key Features

  • Features the Atmel ATmega328P-AU microcontroller with pre-installed bootloader.
  • Integrated CH340G USB-to-serial converter chip for reliable Type-C connectivity.
  • Provides 14 digital input/output pins, including 6 capable of PWM output.
  • Includes 8 analog input ports (A0-A7) for sensor interfacing.
  • Offers a dedicated pair of TTL level serial transceiver ports (RX/TX).
  • Supports a logic level operating voltage of 5V.
  • Flexible power input: recommended 7-12V DC, with a maximum range of 6-20V.
  • Supports In-System Programming (ISP) for direct firmware flashing.
  • Unsoldered headers offer flexibility for custom integration and mounting.

Technical Specifications

MicrocontrollerATmega328P
Operating Voltage (Logic Level)5V
Input Voltage (Recommended)7-12V DC
Input Voltage (Max Limits)6-20V DC
Digital I/O Pins14 (6 PWM outputs)
Analog Input Pins8 (A0-A7)
Flash Memory32 KB (2 KB for bootloader)
SRAM2 KB
EEPROM1 KB
Clock Speed16 MHz
USB-to-Serial ChipCH340G
USB ConnectorType-C
Board Weight7 g

Frequently Asked Questions

What power supply options are available for the Nano V3.0 ATmega328P CH340 Type-C board?

This board supports flexible power input. You can use an unregulated external DC supply between 7-12V (max 20V) via the Vin pin, or a regulated 5V supply through the 5V pin. The board automatically selects the highest voltage source, ensuring reliable operation for your projects.

How does the CH340G USB-to-serial converter benefit this Nano V3.0 board?

The CH340G chip provides a modern and stable USB serial communication interface for the ATmega328P, utilizing a Type-C connector. This ensures broad compatibility with current computers and robust data transfer during programming and serial monitoring, replacing older and less common FT232RL components for improved reliability.

Is the Nano V3.0 ATmega328P CH340 Type-C compatible with the standard Arduino IDE?

Yes, this board is fully compatible with the Arduino IDE, allowing you to use existing Arduino sketches and libraries. You will likely need to install the CH340 driver for your operating system to enable serial communication, but programming and uploading code function identically to official Arduino Nano boards.

What are the main differences between this Nano V3.0 and an official Arduino Nano?

This Nano V3.0 uses a CH340G USB-to-serial converter instead of the FTDI FT232RL found on older official versions, and features a Type-C port. While it provides identical functionality and pinout to the ATmega328P-based official Nano, it is typically a more cost-effective clone.

Package Includes

  • 1x Nano V3.0 ATmega328P CH340 Type-C Development Board
  • 1x Type-C USB Cable (30cm)
  • Unsoldered Male Pin Headers

Additional Information

Weight 0.007 kg
