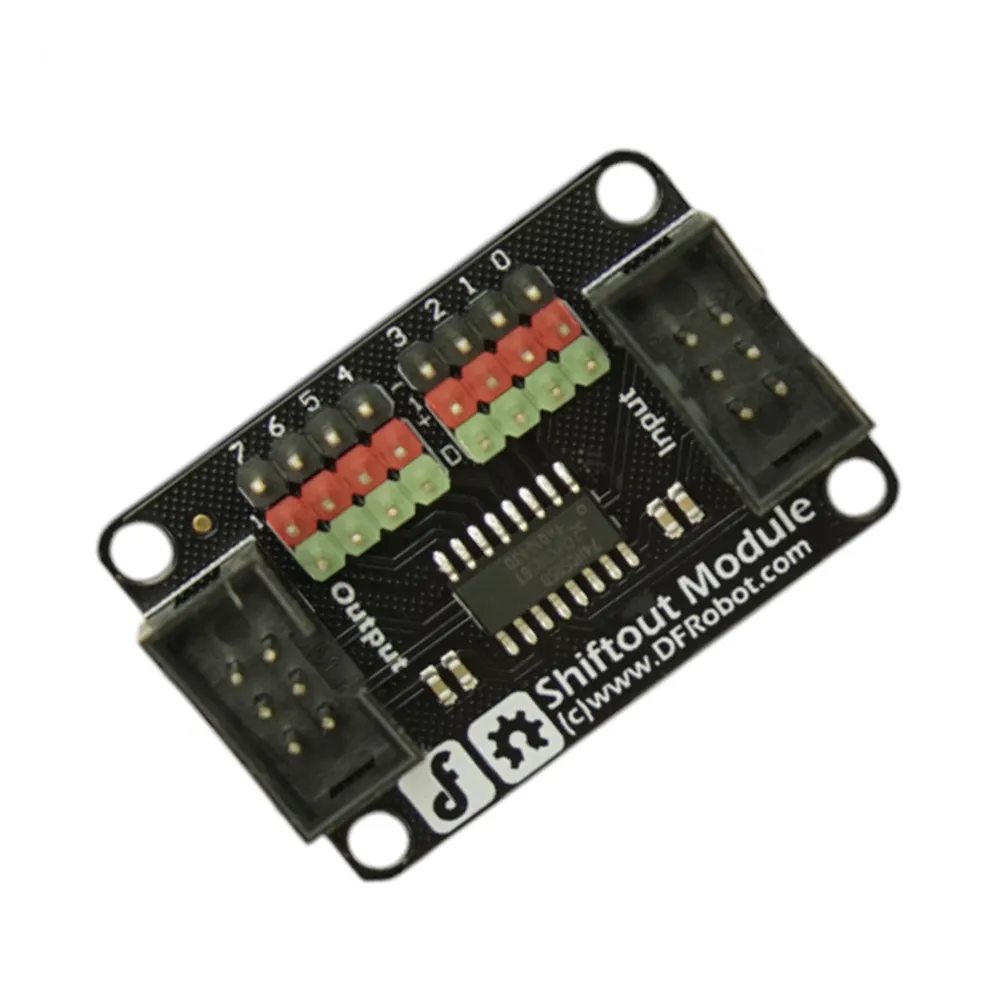

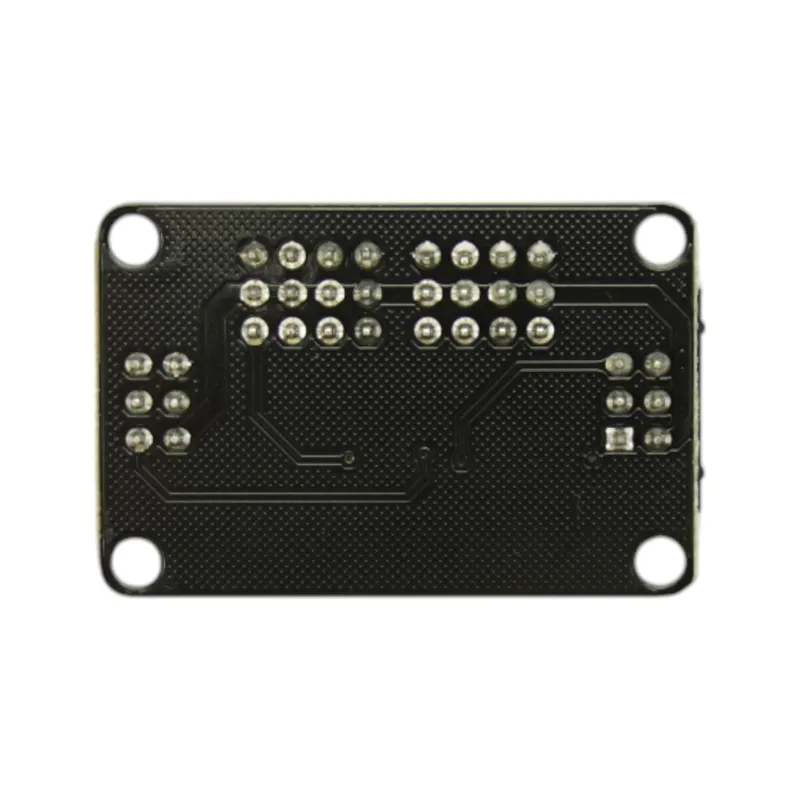

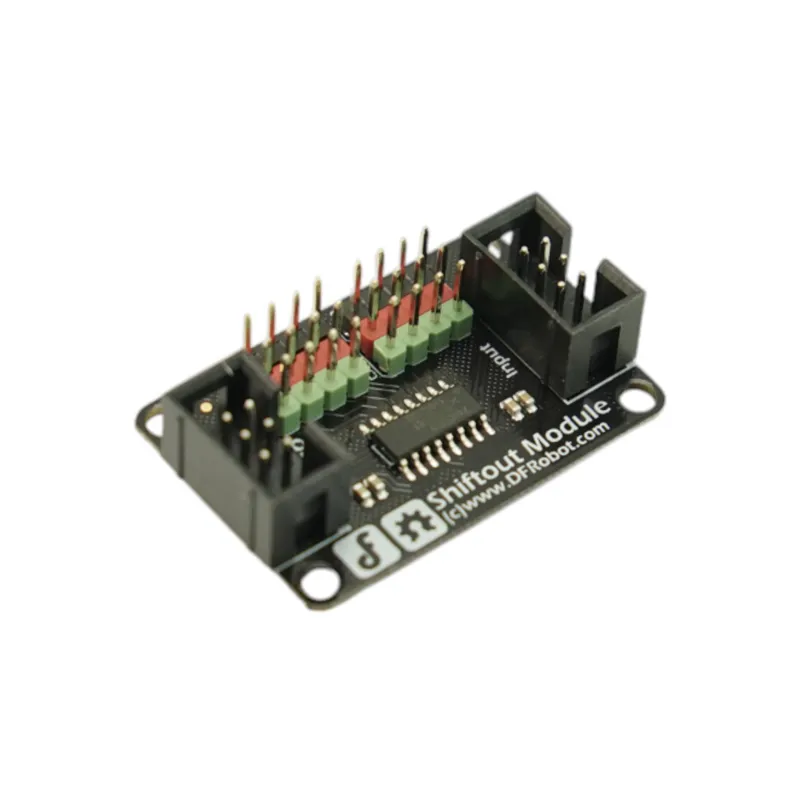

DFRobot Gravity Shiftout Module – 74HC595 I/O Expander

Description

The DFRobot Gravity: Shiftout Module offers a compact solution for expanding digital I/O capabilities, leveraging the versatile 74HC595 shift register. This module is specifically engineered to conserve valuable microcontroller pins, allowing developers to manage 8 additional outputs while utilizing only a minimal number of control pins on their main board. It’s broadly compatible with popular microcontroller platforms such as Arduino, AVR, PIC, and 8051 systems, making it a flexible choice for various embedded projects.

Designed for ease of use and scalability, the module features IDC6 input/output interfaces, facilitating straightforward daisy-chaining of multiple modules for extensive I/O expansion requirements. This capability is particularly useful for projects involving large LED arrays, complex control panels, or other applications demanding numerous digital outputs. Its compact size ensures it can be integrated into space-constrained designs, providing robust output control in both prototyping and final product implementations, especially when paired with the Gravity Interface Shield for seamless connectivity.
