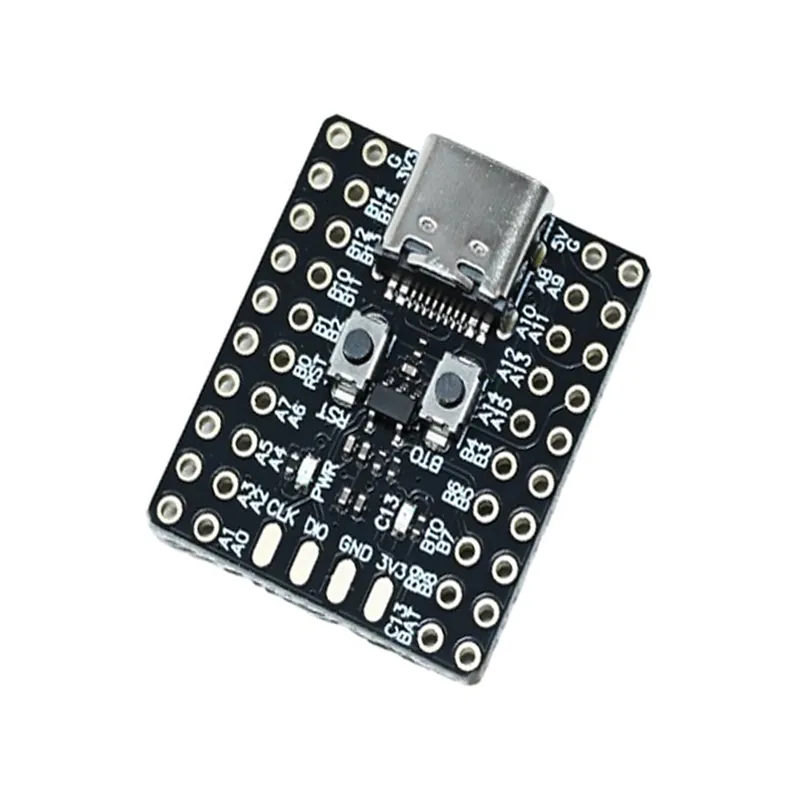

STM32F103C8T6 Mini Development Board

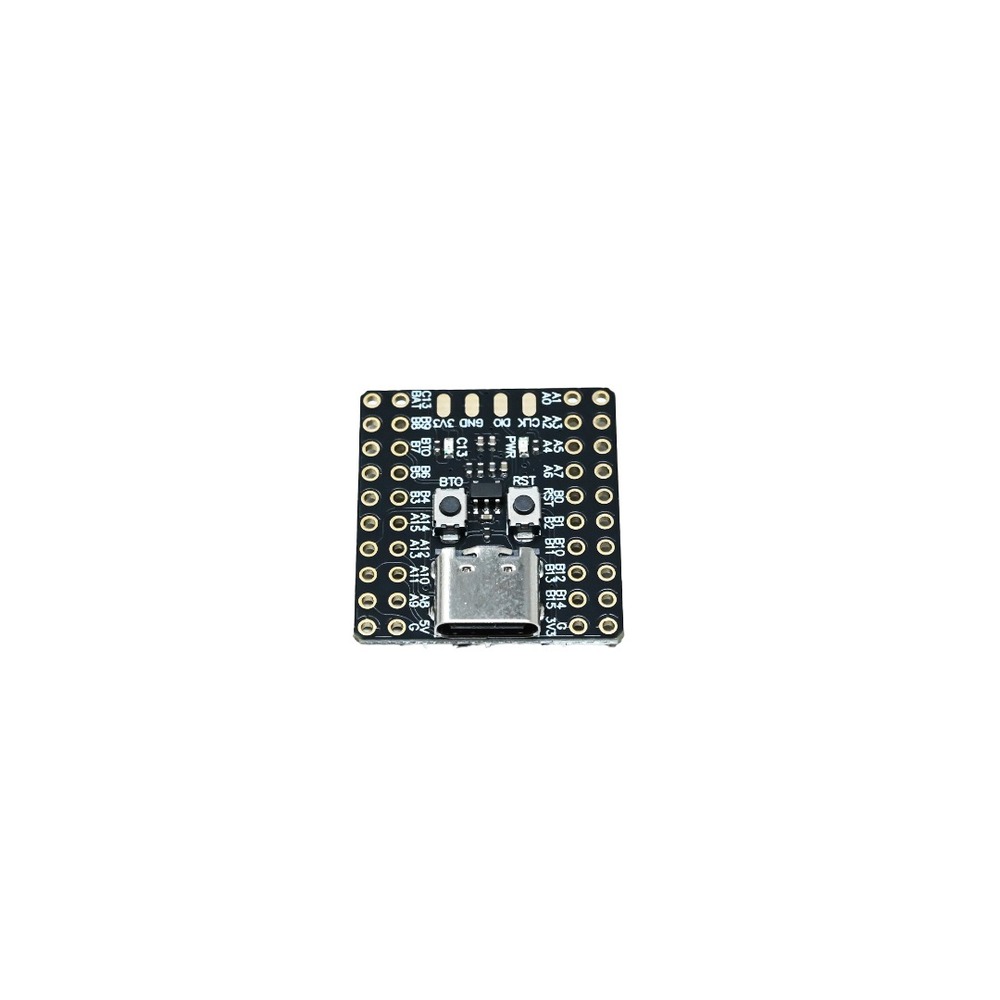

STM32F103C8T6 Mini Development Board - Image 2

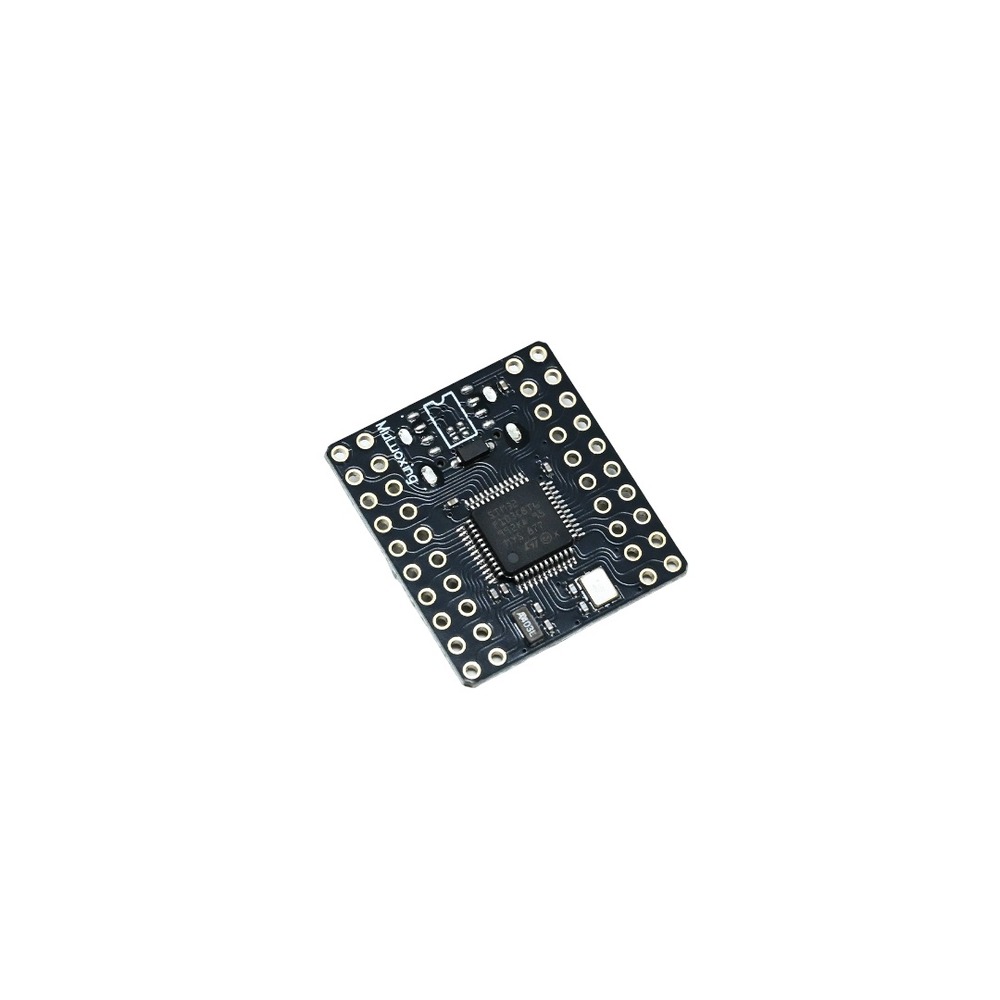

STM32F103C8T6 Mini Development Board - Image 3
SKU: SBCD-0388
📋 GST Invoice Available

STM32F103C8T6 Mini Development Board

₹239.00 (Inclusive of all taxes)
Out of Stock

This STM32F103C8T6 mini development board features a 32-bit ARM Cortex-M3 core at 72MHz, 64KB Flash, and 20KB SRAM, offering a compact solution for embedded projects with a Type-C USB/serial interface.

Features

  • Features STM32F103C8T6 32-bit ARM Cortex-M3 core.
  • Operates at 72MHz with 64KB Flash and 20KB SRAM.
  • Offers a versatile Type-C USB/Serial switchable interface (CH340N).
  • Designed compactly with all I/O exposed on dual-side headers.
  • Includes onboard reset and boot selection buttons for easy programming.

Out of stock

Description

The STM32F103C8T6 mini development board is engineered for efficient embedded development. Built on the ARM Cortex-M3 architecture, it delivers a 72MHz operating speed, 64KB Flash, and 20KB SRAM—ideal for real-time, low-power applications. With full I/O accessibility via dual-side pin headers and a dedicated SWD interface, it’s tailored for developers needing reliability in small form-factor projects.

It supports Type-C power input and a dual-function USB/serial interface (CH340N), offering flexible programming and debugging capabilities. Complete with onboard reset and boot buttons, as well as LED indicators, this board is perfect for rapid prototyping, DIY electronics, and small-scale automation systems.

Key Features

  • ARM Cortex-M3 STM32F103C8T6 MCU operating at 72MHz.
  • Dual-function USB Type-C port for power and data communication (serial/USB selectable via CH340N).
  • Equipped with 64KB Flash memory and 20KB SRAM for efficient code execution.
  • All GPIO pins are fully exposed on dual-side headers, along with a dedicated SWD interface.
  • Compact design integrating onboard RST (reset) and BOOT (boot mode selection) buttons.
  • Includes power (PWR) and user (PC13) LED indicators for operational feedback.
  • Power Supply: 5V @ 500mA via Type-C USB.
  • I/O Voltage: Supports 5V / 3.3V @ 500mA via power pins.

Applications

  • Rapid Prototyping and Development
  • DIY Electronics Projects
  • Small-Scale Automation Systems
  • Embedded Sensing Applications
  • Educational STEM Projects

Technical Specifications

Item TypeMicrocontroller
Model No. / NameSTM32F103C8T6
Processor ArchitectureARM Cortex-M3
Clock Speed72 MHz
Flash Memory64 KB
SRAM20 KB
Supply Voltage5V
Length2.5 cm
Width1.5 cm

Frequently Asked Questions

What is the core processor and memory of this board?

The board features an ARM Cortex-M3 STM32F103C8T6 microcontroller, operating at 72MHz. It includes 64KB of Flash memory for program storage and 20KB of SRAM for data, making it suitable for a wide range of embedded applications requiring modest resources and efficient processing.

How is power supplied and what are the connectivity options?

Power is supplied via a 5V Type-C USB interface, which also provides a dual-function data path for either serial communication (via CH340N) or direct USB connectivity, depending on configuration. This offers flexible power and programming options for developers.

What development environments are compatible with the STM32F103C8T6?

The STM32F103C8T6 is widely supported by various development environments, including STM32CubeIDE, Keil MDK, IAR Embedded Workbench, and even PlatformIO with the Arduino framework. It also supports debugging and flashing via the SWD interface using compatible programmers.

What are the key physical features for development on this board?

The board offers fully exposed GPIO pins on dual-side headers, along with dedicated reset and boot selection buttons for easy programming mode entry and system resets. It also includes power and user LED indicators (PWR, PC13) for quick status monitoring during prototyping and debugging.

Package Includes

  • 1 x STM32F103C8T6 Mini Development Board

Additional Information

Weight 0.003 kg
Dimensions 2.5 × 1.5 cm
