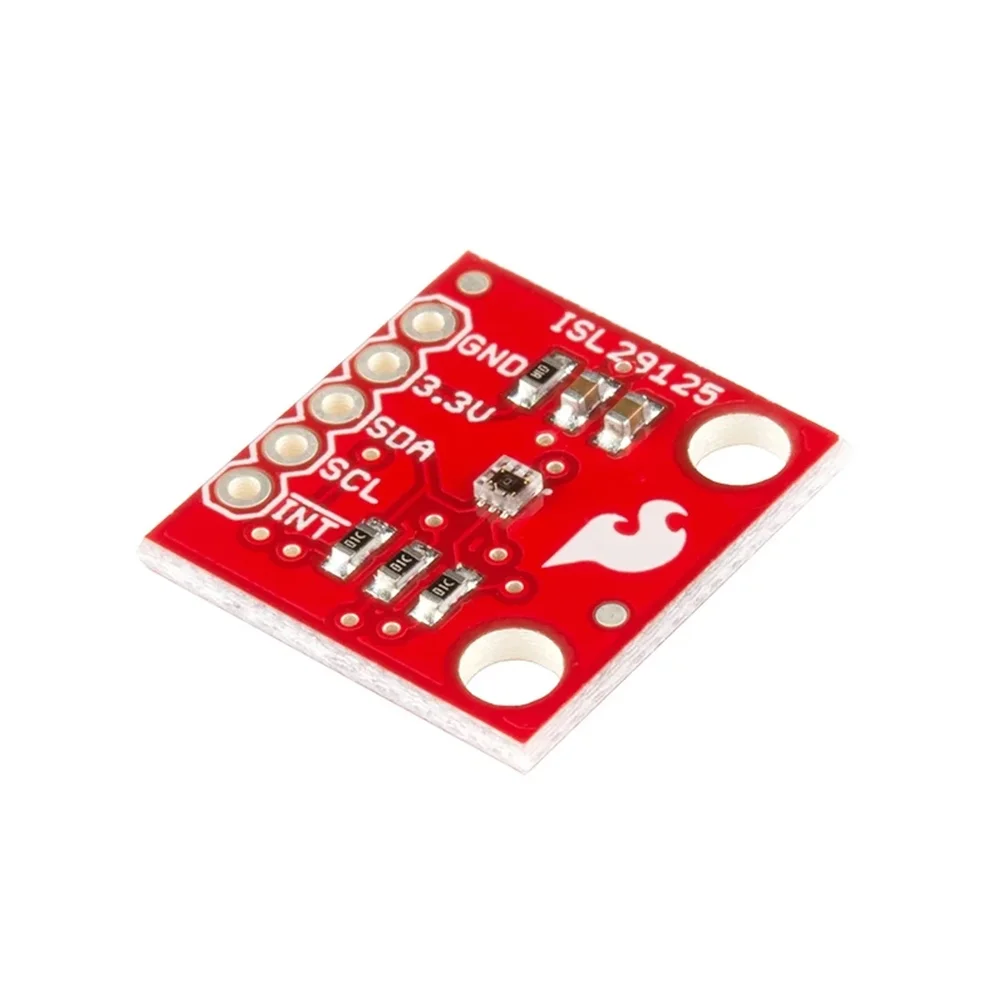

SparkFun ISL29125 RGB Color Light Sensor Breakout Board - I2C Interface

The sensor IC itself operates at 3.3V DC, which is the voltage supplied to the VCC pin on the breakout board. The board's I2C logic levels are also 3.3V. For safe operation with 5V microcontrollers like some Arduino models, use a logic level converter on the SDA and SCL lines.

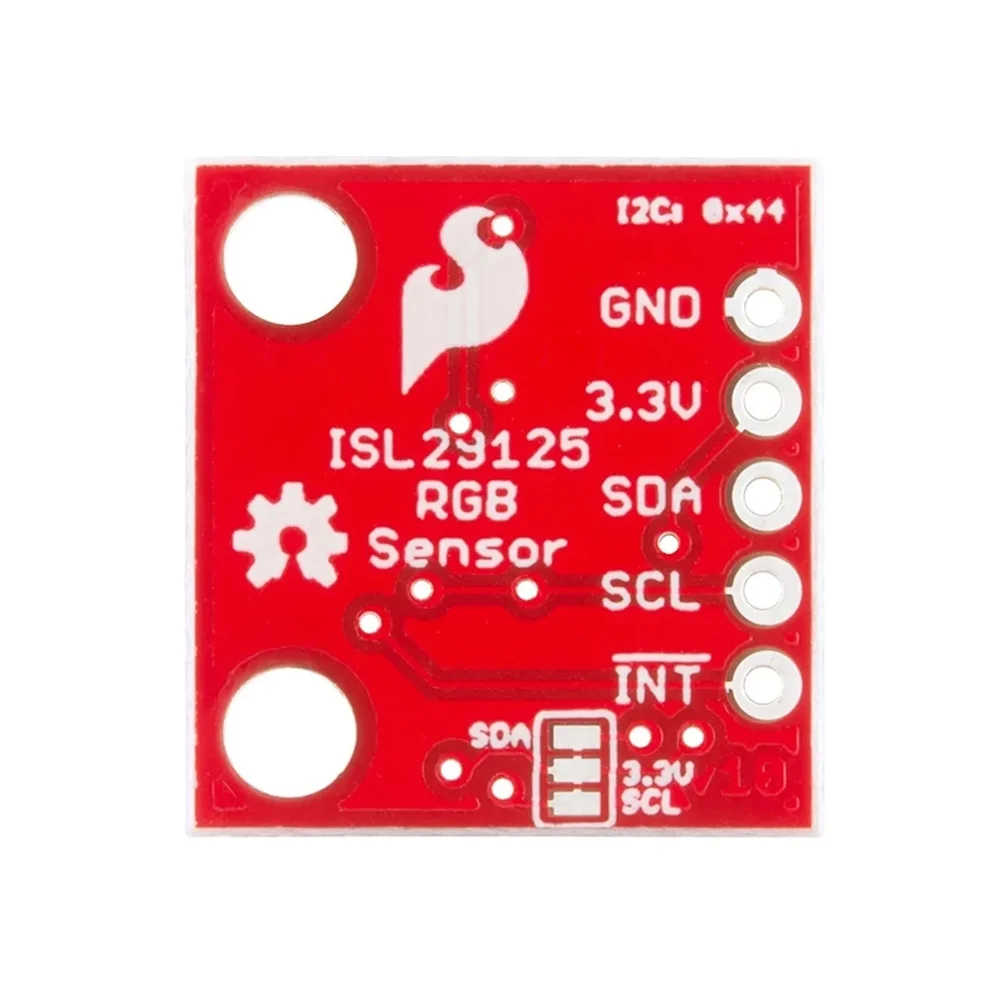

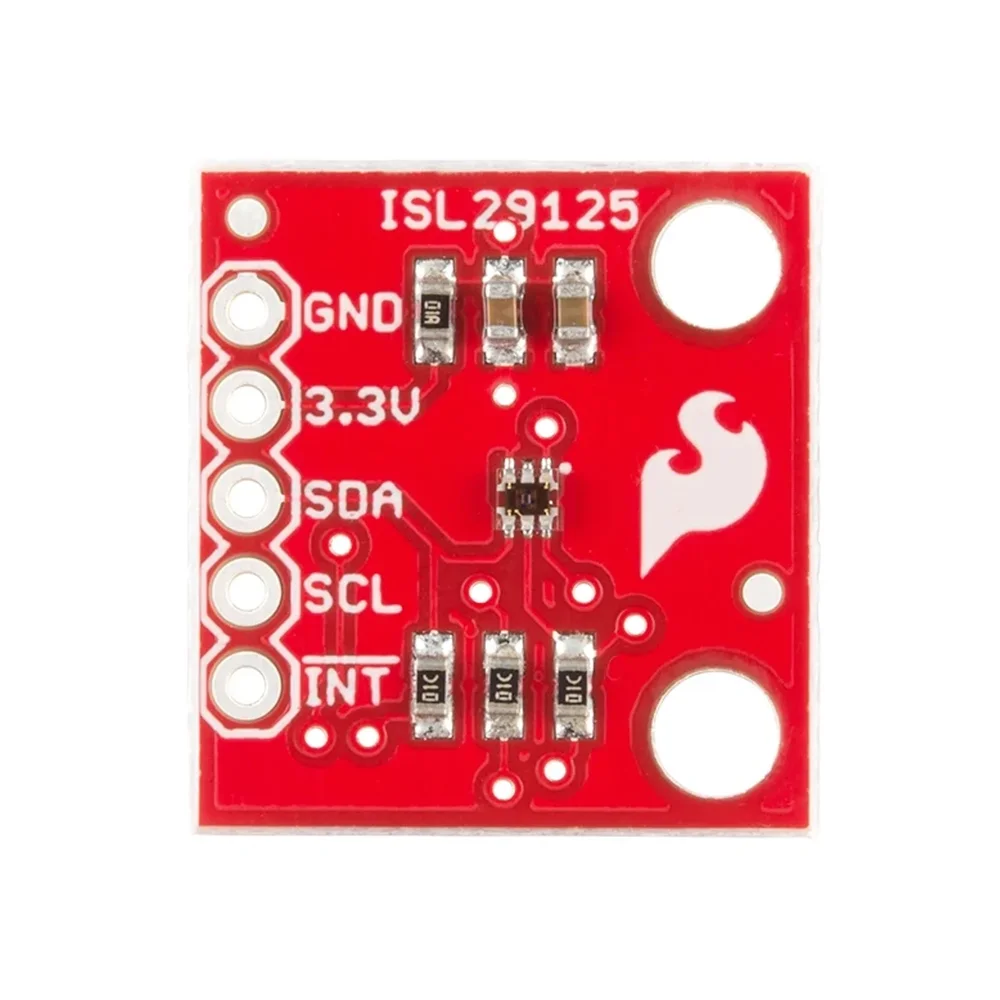

Connect the board's VCC to 3.3V, GND to GND, SDA to the Arduino's A4 (or dedicated SDA pin), and SCL to A5 (or dedicated SCL pin). The INT pin is optional and can be connected to any digital input if you wish to use the interrupt feature. Ensure you use appropriate pull-up resistors on the I2C bus, which are often included on the breakout.

The integrated IR rejection filter blocks a significant portion of infrared light from reaching the photodiodes. Since many light sources emit IR radiation, this filter improves the accuracy of visible color measurement by ensuring the sensor primarily responds to the intended red, green, and blue wavelengths.

Yes, by reading the individual 16-bit values for the red, green, and blue channels, you can calculate ratios and intensities to distinguish between specific colors and shades. Advanced algorithms, such as comparing the sensor readings to known reference values, can be implemented in your microcontroller code for precise color identification.

The INT pin is an open-drain output that can be configured to go active (low) when the light intensity on any selected channel exceeds a user-programmable upper threshold or falls below a lower threshold. This allows the microcontroller to sleep until a significant light change occurs, saving power in battery-operated systems.
