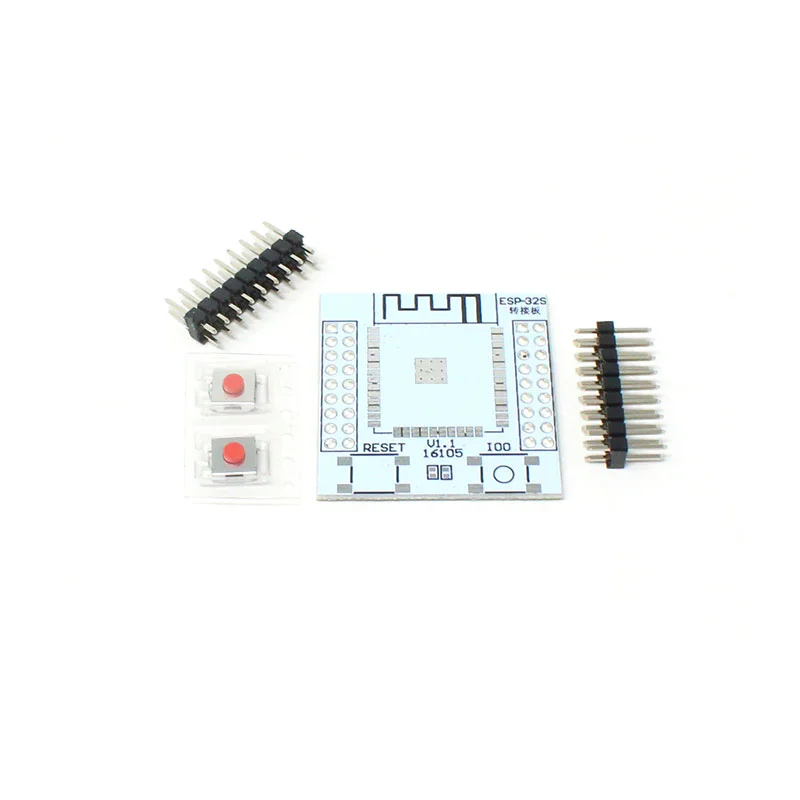

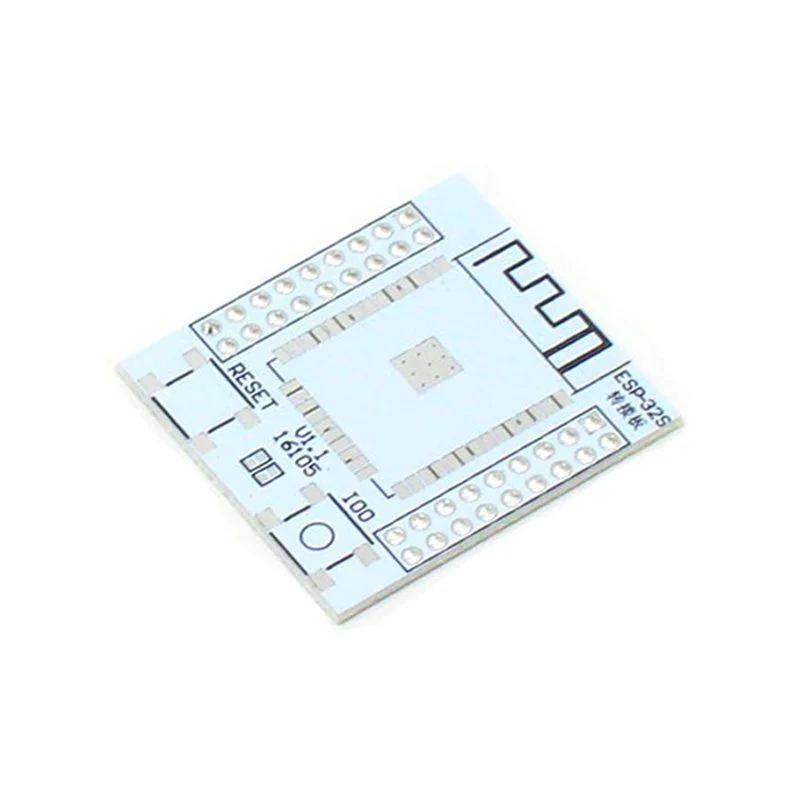

ESP32 ESP-Wroom-32 Adapter Breakout Board

Description

This adapter board serves as a crucial development accessory for Espressif ESP32-based wireless modules like the ESP-Wroom-32 and ESP-32F. It breaks out the module’s GPIO, power, and communication pins to a standard 2.54mm pitch grid, making it compatible with solderless breadboards and prototype PCBs. The onboard tactile switches for reset and boot mode selection eliminate the need for manual wiring to enter flash mode, significantly accelerating firmware uploads via tools like the Arduino IDE or ESP-IDF.

The design requires minimal external connections for a functional minimum system: just four lines (VCC, GND, TX, RX) to a USB-to-UART converter. Proper configuration, including a pull-up resistor on the EN pin as specified, ensures stable operation. This board is ideal for developers, students, and makers who need a reliable, reusable interface to test and deploy code on compact ESP32 modules before designing a custom carrier PCB.
