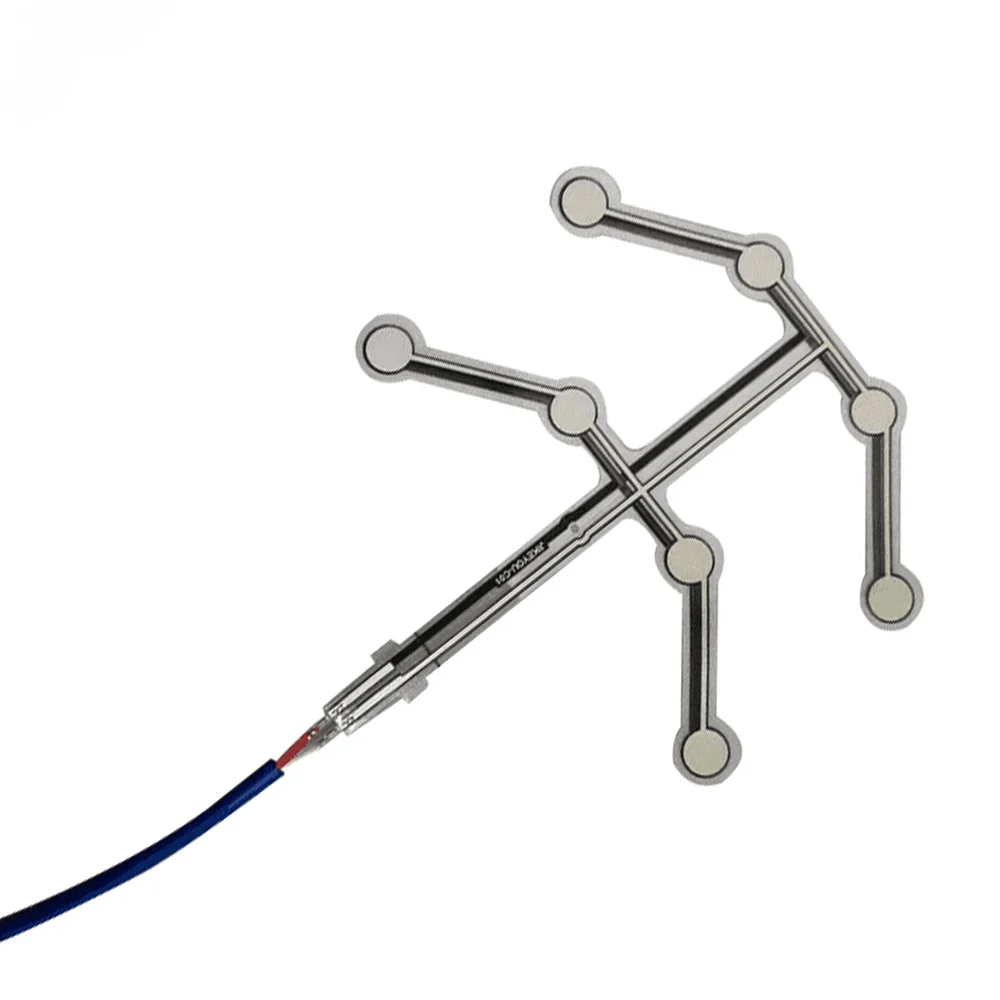

SOUSHINE SBR Film Pressure Sensor, 600mm Cord (10g~10kg)
The SOUSHINE SBR Film Pressure Sensor is an ultra-thin, flexible force sensor with a 600mm cable, designed for precise measurement from 10g to 10kg. It operates on a 5V supply, making it compatible with common microcontrollers like Arduino and Raspberry Pi for real-time pressure detection applications.
Features
- Ultra-thin SBR film construction with a thickness under 0.35mm for minimal intrusion.
- Wide pressure sensing range from 10 grams up to 10 kilograms (1000g).
- Fast response time under 10ms, suitable for dynamic pressure events up to 10Hz.
- Robust operating temperature range from -40°C to +85°C for harsh environments.
- 600mm integrated cable length for flexible installation and connection.
Out of stock
The SOUSHINE SBR Film Pressure Sensor utilizes a piezoresistive sensing element within a flexible SBR (Styrene-Butadiene Rubber) film. This construction allows it to conform to surfaces and measure both static and dynamic pressure changes with high sensitivity. The sensor outputs a variable resistance signal proportional to the applied force, which can be conditioned with a simple voltage divider circuit for microcontroller ADC input.
Engineered for durability, the sensor is resistant to electromagnetic interference (EMI) and electrostatic discharge (ESD), ensuring stable performance in electrically noisy environments. Its wide operating temperature range and low-profile design make it suitable for integration into space-constrained assemblies subject to thermal cycling.
Additional Information
| Dimensions | 1.58 × 0.762 × 0.035 cm |
|---|
