Pro Micro Type C ATmega32U4 Dev Board for Arduino
Pro Micro Type C ATmega32U4 Dev Board for Arduino - Image 2
Pro Micro Type C ATmega32U4 Dev Board for Arduino - Image 3
SKU: SBCD-0275
📋 GST Invoice Available

Pro Micro Type C ATmega32U4 Dev Board for Arduino

₹449.00 (Inclusive of all taxes)
Out of Stock

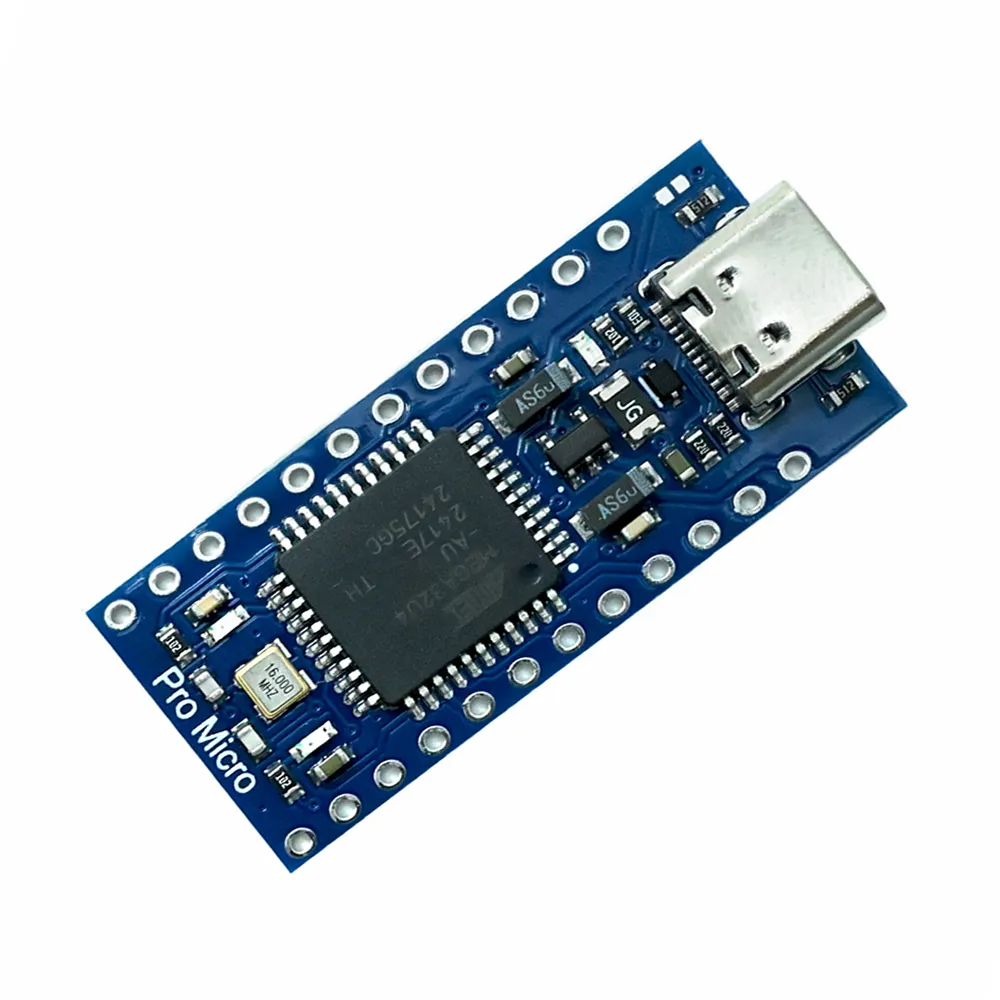

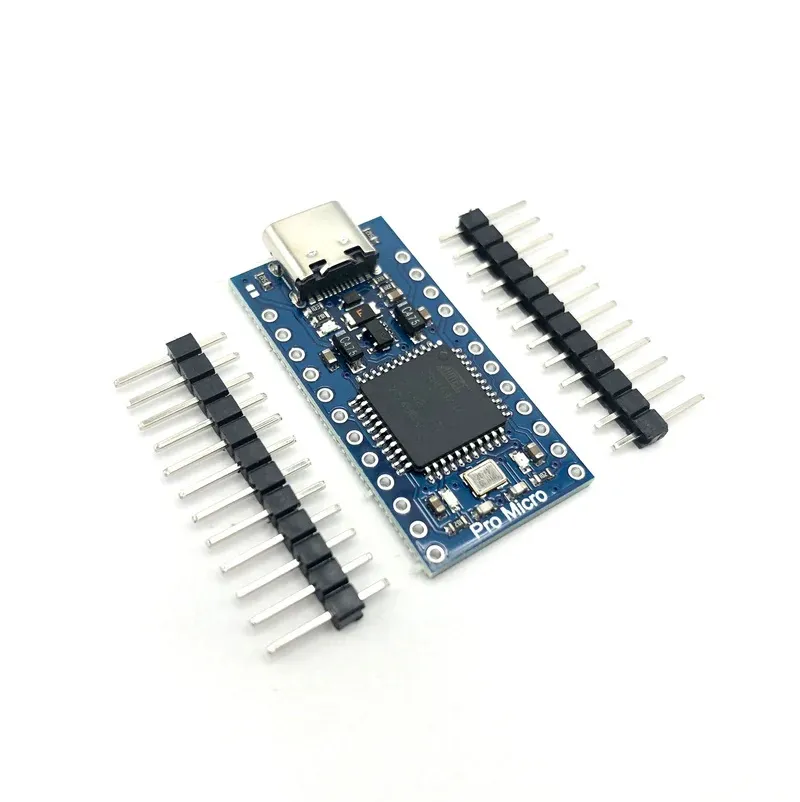

The Pro Micro Type C Microcontroller Development Board integrates an ATmega32U4 running at 5V/16MHz, providing a compact and versatile platform with modern USB-C connectivity. It offers full compatibility with the Arduino IDE, making it an ideal choice for a wide range of embedded projects and rapid prototyping.

Features

  • Features an ATmega32U4 microcontroller operating at 5V/16MHz.
  • Equipped with a convenient and modern USB Type-C connector for programming and power.
  • Fully compatible with Arduino IDE (v1.0.1 and later) for straightforward development.
  • Provides 18 versatile I/O pins for extensive peripheral integration.
  • Compact form factor, perfect for space-constrained embedded applications.

Out of stock

Description

The Pro Micro Type C Microcontroller Development Board is engineered for electronics enthusiasts and developers seeking a robust yet compact prototyping solution. At its core lies the ATmega32U4, an AVR microcontroller known for its native USB capabilities, allowing it to function as a mouse, keyboard, or other USB HID devices. This board operates efficiently at 5V/16MHz, offering a solid balance of processing power and energy consumption for various embedded tasks.

Featuring a top-mount USB Type-C connector, the board ensures modern and reversible connectivity for easy programming and power delivery. It offers a total of 18 digital I/O pins, including capabilities for PWM, ADC, I2C, SPI, and UART, facilitating diverse project requirements. Its support for Arduino IDE streamlines the development process, enabling users to quickly deploy custom code for automation, sensing, robotics, and other interactive applications.

Key Features

  • Integrated ATmega32U4 microcontroller for robust performance.
  • Operates at 5V logic with a 16 MHz clock speed.
  • Modern top-mount USB Type-C port for power and data.
  • Offers 18 programmable Digital I/O pins.
  • Supports various communication interfaces including I2C, SPI, and UART.
  • Equipped with 32KB of program memory and 2.5KB of SRAM.
  • Compatible with the Arduino IDE (v1.0.1 and higher) for easy development.
  • Ideal for prototyping and integrating into custom electronics projects.

Applications

  • Custom keyboard or mouse HID devices.
  • Compact robotics and automation projects.
  • Wearable electronics and small sensor nodes.
  • Embedded sensing and data logging.
  • Interactive art installations and prototypes.

Technical Specifications

Item TypeDevelopment Board
Chip TypeATmega32U4
ConnectivityUSB Type-C
Operating Voltage (VDC)+5V
Digital I/O Pins18
RAM (SRAM)2.5 KB
EEPROM1 KB
Program Memory (Flash)32 KB
Clock Speed16 MHz

Frequently Asked Questions

What is the primary microcontroller on this Pro Micro board?

This Pro Micro Type C board features the ATmega32U4 microcontroller. It operates at 16MHz and includes 32KB of flash program memory, 2.5KB of SRAM, and 1KB of EEPROM. The ATmega32U4 is distinguished by its native USB capability, enabling direct communication without an external USB-to-serial converter.

How is the Pro Micro Type C development board powered?

The board can be powered in a few ways. The primary method is via the USB Type-C connector, which supplies +5V. Alternatively, it can be powered through the 'RAW' pin (VIN) with an input voltage between 7V and 12V, or directly via the 'VCC' pin if a regulated 5V source is available.

Which development environment is compatible with this board, and how is it programmed?

This Pro Micro board is fully compatible with the Arduino IDE, supporting versions 1.0.1 and later. To program it, connect the board via its USB Type-C port to your computer. Within the Arduino IDE, select 'Arduino Leonardo' or 'Pro Micro' from the Boards menu, then upload your sketch. Its native USB allows it to emulate various USB devices.

What are the key I/O capabilities of the Pro Micro Type C board?

The board provides 18 versatile digital I/O pins, which can also be configured for analog input (4 channels with 10-bit resolution), PWM output, and various communication protocols. It supports hardware serial (UART), I2C (TWI), and SPI, making it suitable for interfacing with a wide range of sensors, displays, and other peripherals in embedded systems.

Package Includes

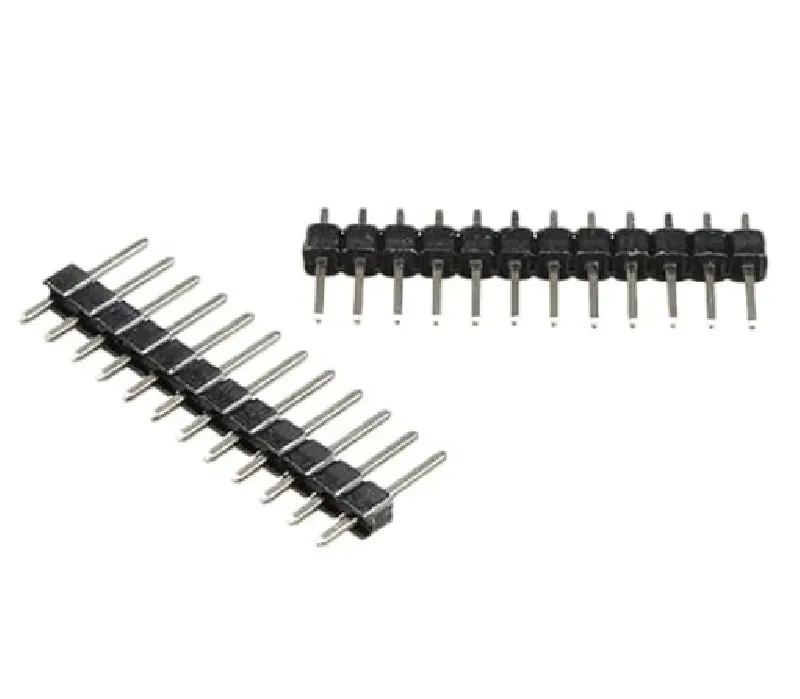

  • 1 x Pro Micro Type C Microcontroller Development Board For Arduino

Additional Information

Weight 0.004 kg
Dimensions 6 × 5 × 1 cm
