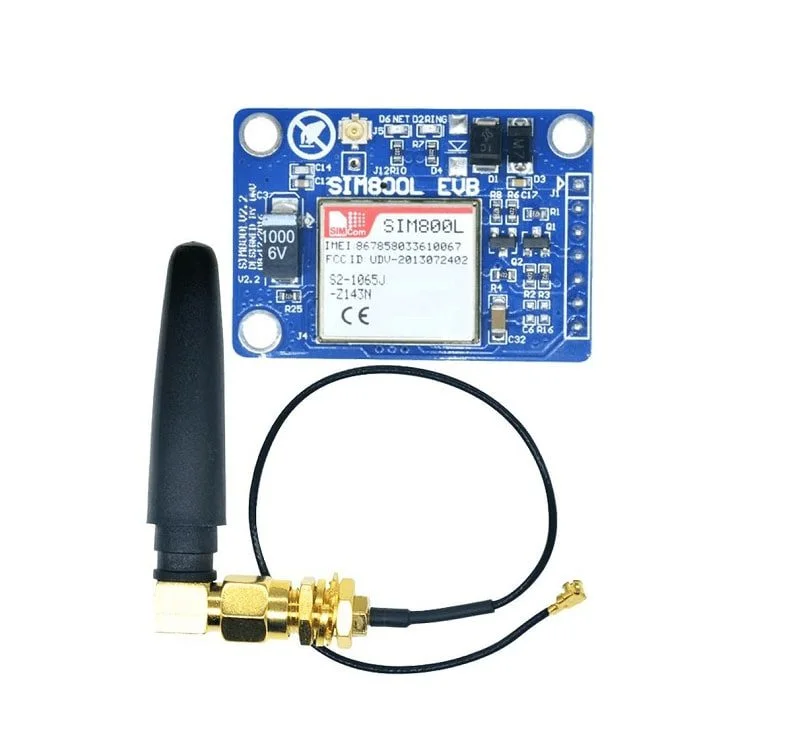

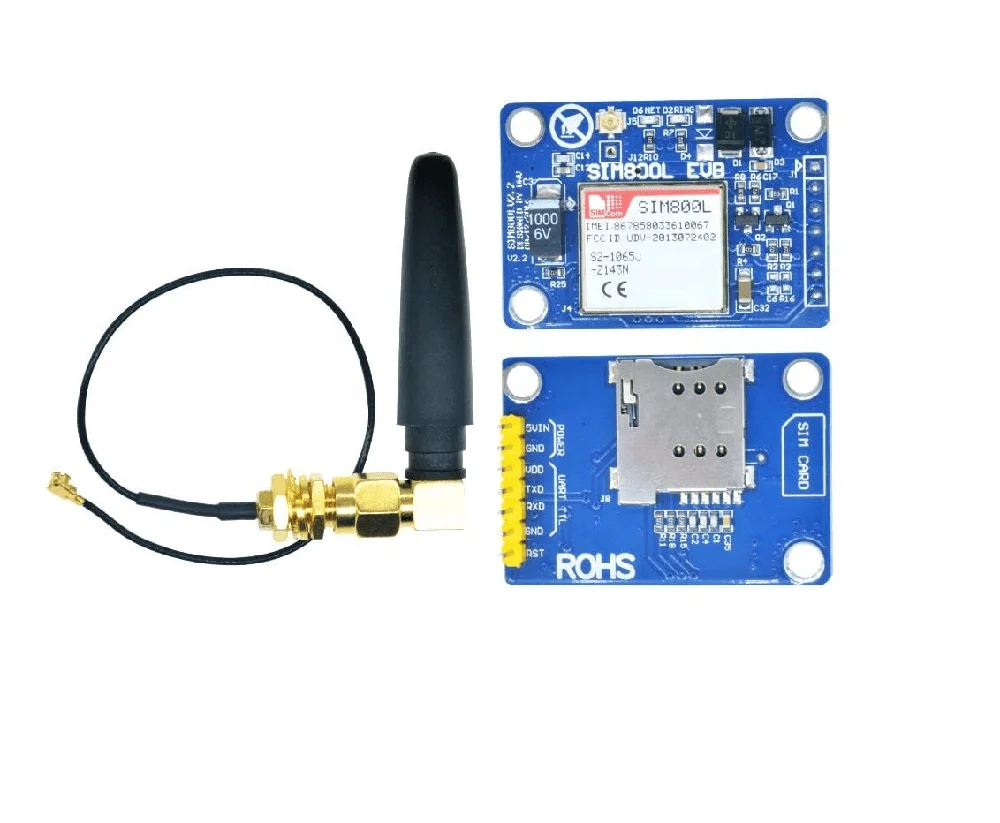

SIM800L V2 5V GSM GPRS Module Quad-Band w/ Antenna

Connect the module's 5V and GND pins to the Arduino's 5V and GND. Link the SIM_TXD pin to Arduino's RX (pin 2 via SoftwareSerial) and SIM_RXD to Arduino's TX (pin 3). Use a stable 5V, 2A power supply for the module, not the Arduino's onboard regulator, to ensure sufficient current for transmission bursts. Initialize communication in your Arduino sketch using SoftwareSerial at a baud rate of 9600 or 115200 and send standard AT commands (e.g., AT) to test the connection.

Ensure you have a valid, activated SIM card from a GSM network provider. Insert the SIM into the card slot on the module with the chip facing downwards and the cut corner oriented correctly. Power on the module and wait for the network LED to blink at a steady interval, indicating registration. Use AT+CPIN? to check if the PIN is required, then AT+CPIN="1234" to enter it if needed. Finally, use AT+COPS? to verify network registration and AT+CSQ to check signal strength before proceeding with SMS or GPRS commands.

Yes, the SIM800L V2's TTL UART interface is compatible with 3.3V logic levels. Connect the module's VDD pin to 3.3V from your ESP32 to set the logic level, while the main 5V power supply must still be provided to the module's 5V pin. Connect TXD/RXD pins directly to the ESP32's GPIOs. Ensure your power source can deliver up to 2A peak current during transmission. Use HardwareSerial or SoftwareSerial on the ESP32, and remember that the AT command set and GPRS functionality remain identical regardless of the MCU's logic voltage.
