Raspberry Pi 8-Channel Bi-directional Logic Level Converter
This 8-channel bidirectional logic level converter facilitates safe voltage translation between 3.3V and 5V systems, enabling your Raspberry Pi to seamlessly interface with a wide array of 5V peripherals and sensors. It features automatic direction control, simplifying integration into mixed-voltage projects.
Features
- Enables 8-channel bidirectional voltage translation between 3.3V and 5V logic.
- Supports a broad conversion level range from 1.8V to 6V.
- Features automatic direction control, eliminating the need for manual signal configuration.
- Equipped with tantalum capacitors for enhanced power filtering and stability.
- Provides dedicated power supply interfaces for both high and low voltage sides (VCCA, VCCB).
Out of stock

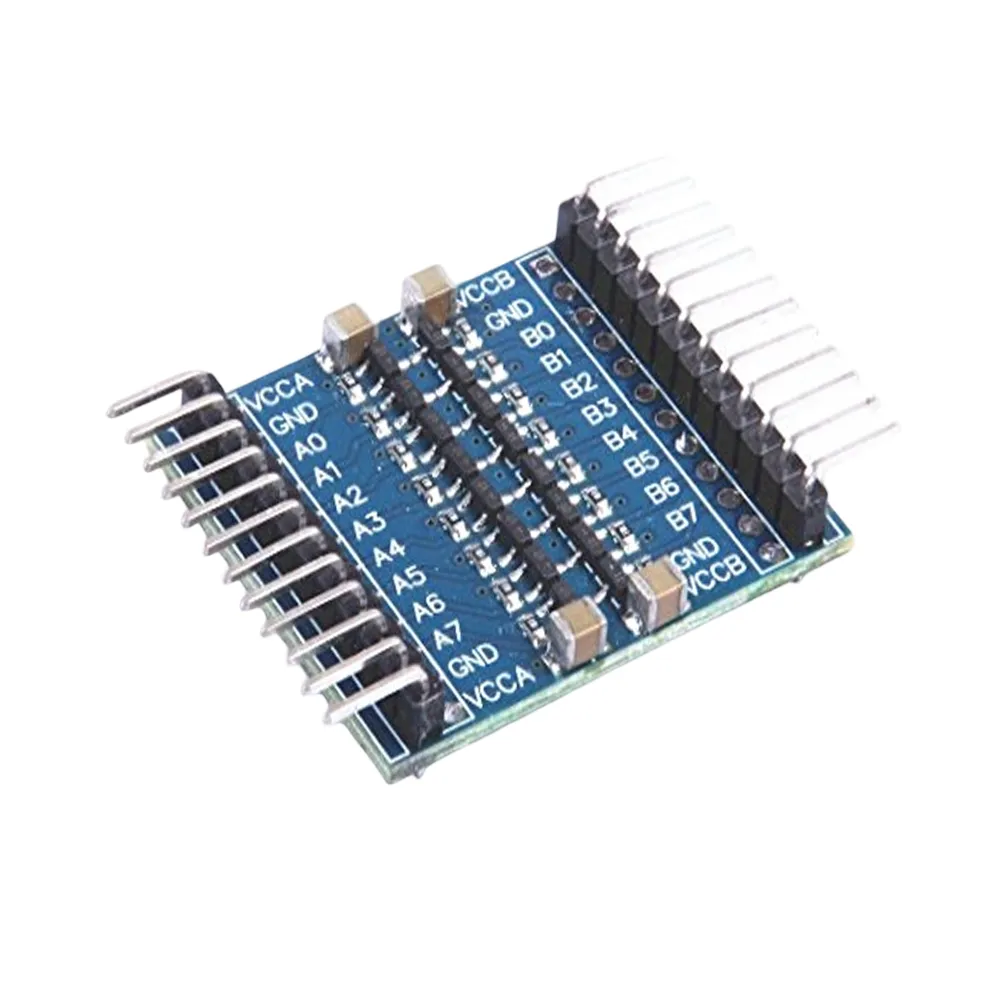

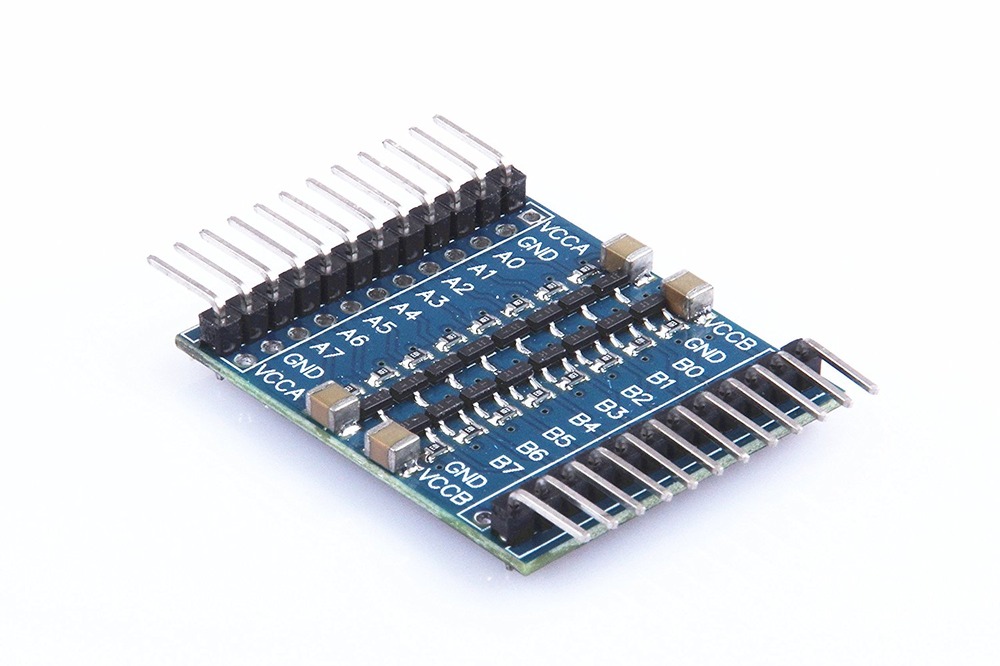

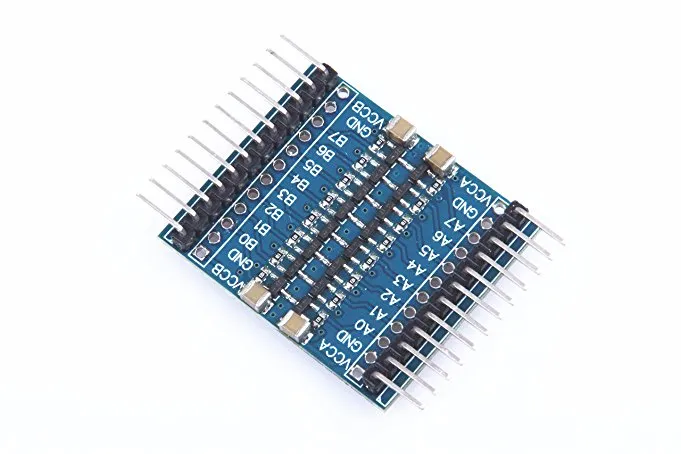

The Raspberry Pi 8-Channel Level Switching IO Module is an essential tool for integrating 5V devices with the 3.3V GPIOs of your Raspberry Pi. While many sensors and peripherals operate at 5V, connecting them directly to the Raspberry Pi can damage its sensitive 3.3V GPIO pins. This module resolves this incompatibility by providing robust, bidirectional logic level conversion for up to eight channels.
Designed for ease of use, the converter automatically handles the direction of signal flow between the low-voltage (Ax) and high-voltage (Bx) sides, removing the complexity of external direction control. Simply connect your 3.3V supply to VCCA, your 5V supply to VCCB, and ensure a common ground. This setup allows for seamless communication, translating 3.3V TTL inputs on Ax to 5V TTL outputs on Bx, and vice versa. Its stable design, incorporating tantalum capacitors for power filtering, ensures reliable operation in critical applications.
Additional Information
| Weight | 0.004 kg |
|---|---|
| Dimensions | 6 × 4 × 3 cm |
