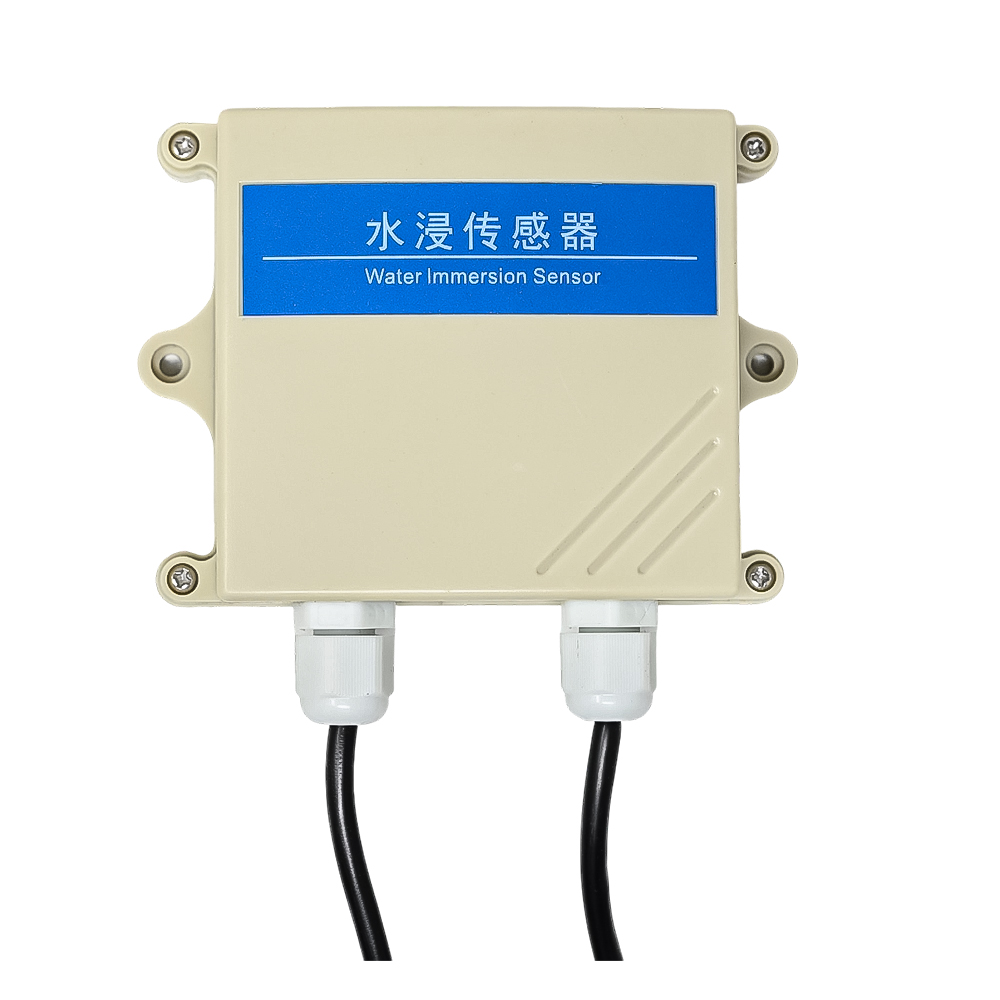

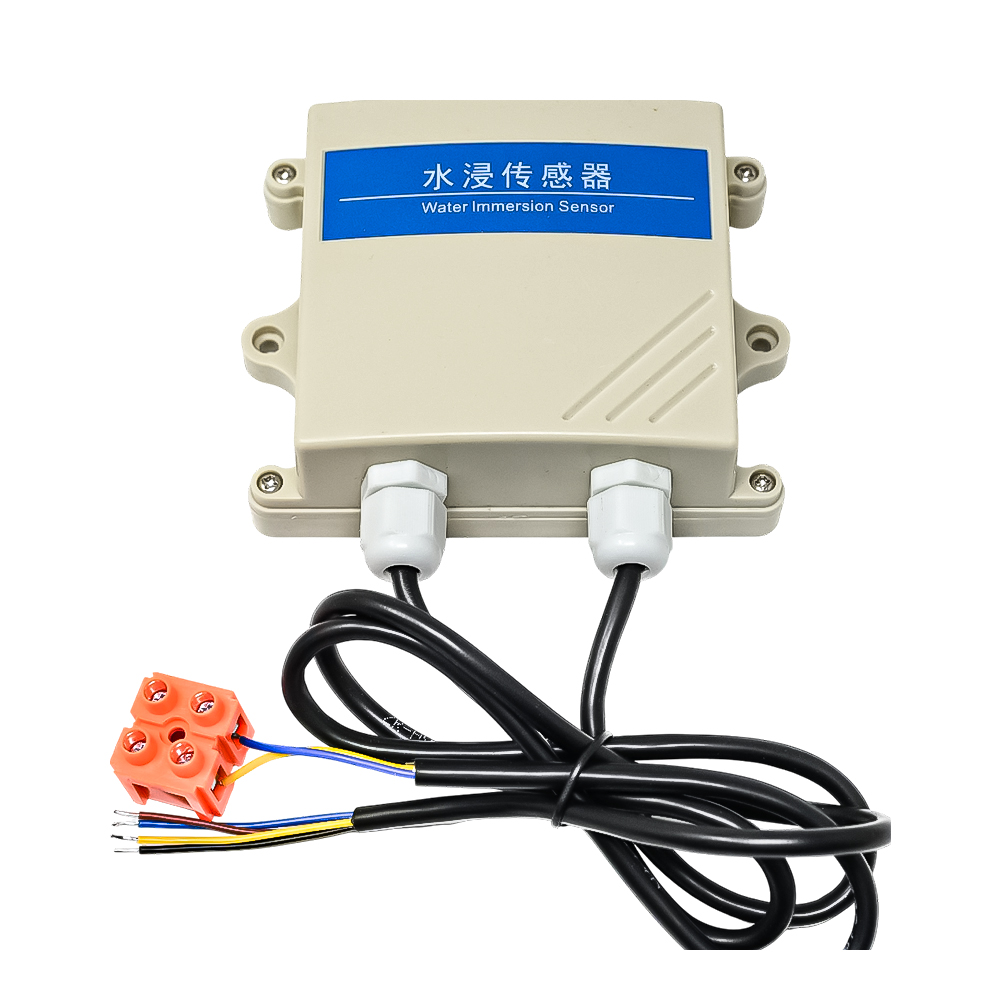

SN-3002-SJ-N01 King Shell Water Immersion Sensor - RS485 Modbus & Relay Output
The SN-3002-SJ-N01 is an industrial-grade water immersion sensor featuring AC sensing technology to prevent electrode corrosion and dual RS485 Modbus-RTU and relay outputs for seamless integration into PLC, SCADA, and building management systems. It is designed for reliable leak detection in harsh environments.
Features
- AC sensing technology prevents electrode oxidation for long-term reliability.
- Dual output: RS485 Modbus-RTU interface and dry-contact relay for flexible system integration.
- Extended detection range up to 30 meters with optional external cable.
- Wide operating voltage range of 10-30V DC for industrial compatibility.
- Rugged construction rated for operation in tap and pure water environments.
Out of stock
The SN-3002-SJ-N01 King Shell water immersion sensor is engineered for critical leak detection in industrial, commercial, and infrastructure applications. It employs an AC-based sensing principle, which applies an alternating current to the detection electrode, effectively mitigating galvanic corrosion and oxidation to ensure consistent performance and a long operational lifespan even in continuous immersion scenarios.
This sensor delivers two distinct output signals for maximum integration flexibility. The RS485 interface communicates via the Modbus-RTU protocol, allowing for direct digital connection to supervisory control and data acquisition (SCADA) systems, programmable logic controllers (PLCs), and data loggers. Simultaneously, the integrated dry-contact relay provides a simple, voltage-free switch closure for audible alarms, indicator lights, or direct input to legacy control systems. Its robust housing and electrical design support operation in a wide temperature range and varying water qualities.
Additional Information
| Weight | 0.148 kg |
|---|---|
| Dimensions | 9 × 11 cm |
