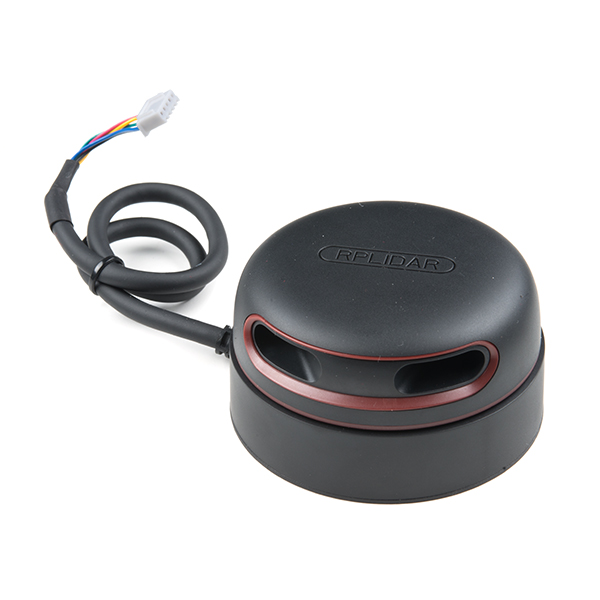

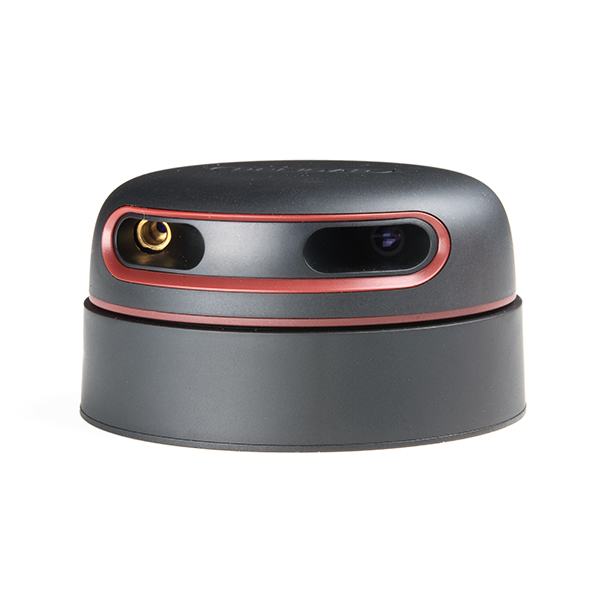

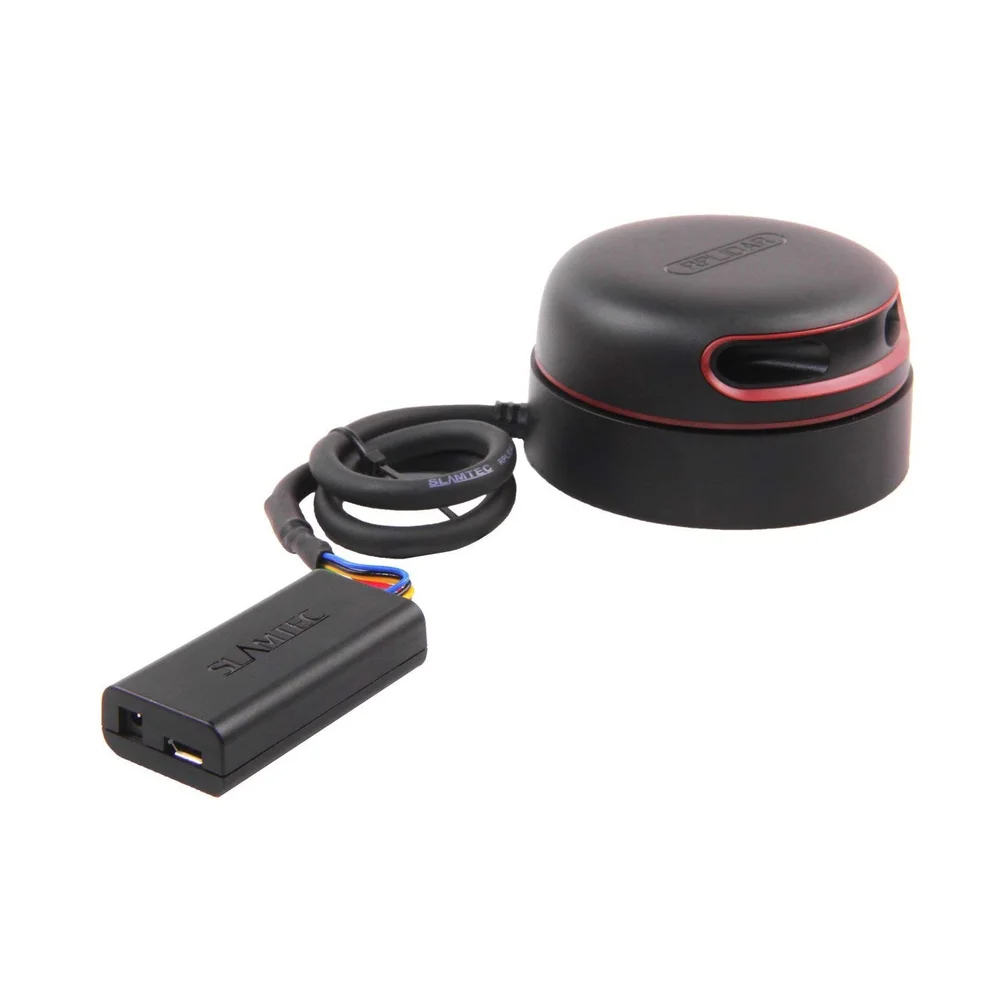

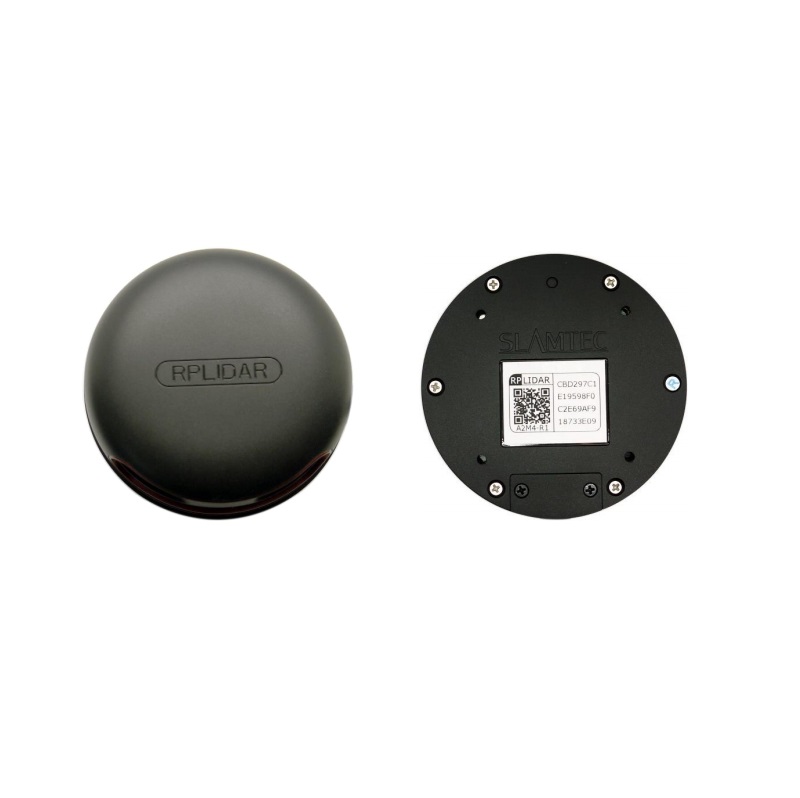

Slamtec RPLiDAR A2M12 360 Degree Laser Scanner Kit (0.2m - 12m Range) - USB & DC Cable w/ Adapter Board
The Slamtec RPLiDAR A2M12 is a 360-degree 2D laser scanner (LiDAR) kit designed for robotics and mapping applications. It provides high-speed, 16,000 samples per second scanning within a 0.2m to 12m range, outputting point cloud data via serial communication for integration with platforms like ROS, Arduino, Raspberry Pi, and embedded systems.

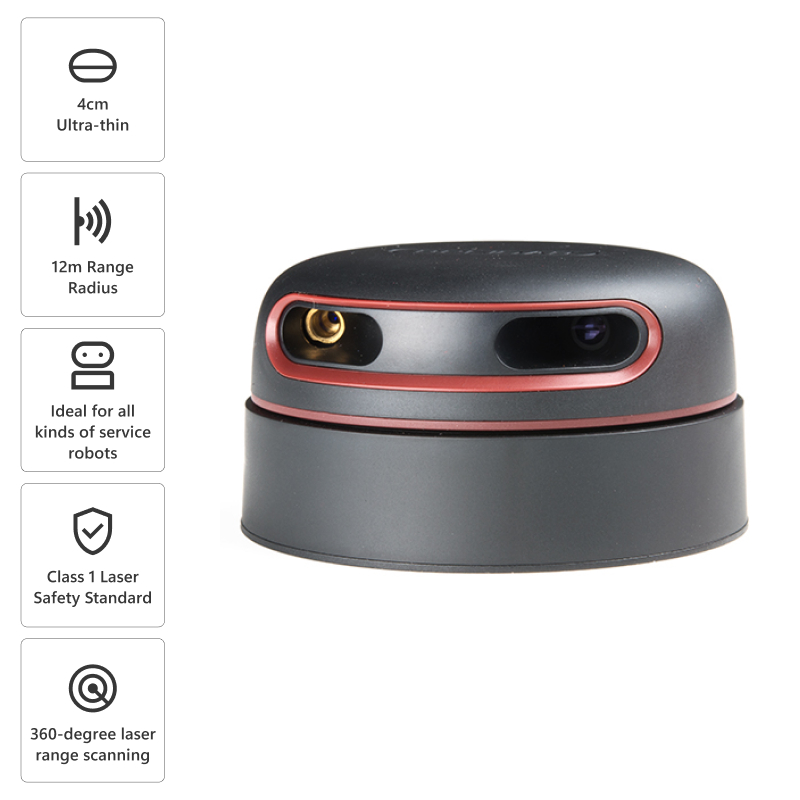

Features
- High-Speed 2D LiDAR Scanner with 0.2m to 12m measurement range.
- 16,000 samples per second with 0.225° angular resolution for dense point clouds.
- Patented OPTMAG non-contact drive system ensures a 5-year operational lifespan.
- Class 1 laser safety standard (FDA compliant) for safe indoor/outdoor use.
- Compact 4cm thin profile, powered by 5V DC with PWM motor speed control.
Out of stock
The RPLiDAR A2M12 is an enhanced 2D laser scanner based on laser triangulation ranging principles. Its high-speed RPVision 2.0 processing engine captures over 16,000 distance measurements per second, generating precise 2D point cloud data for environment mapping and object detection. The system operates via a brushless motor with OPTMAG technology, eliminating mechanical wear for long-term reliability in demanding service robotics applications.

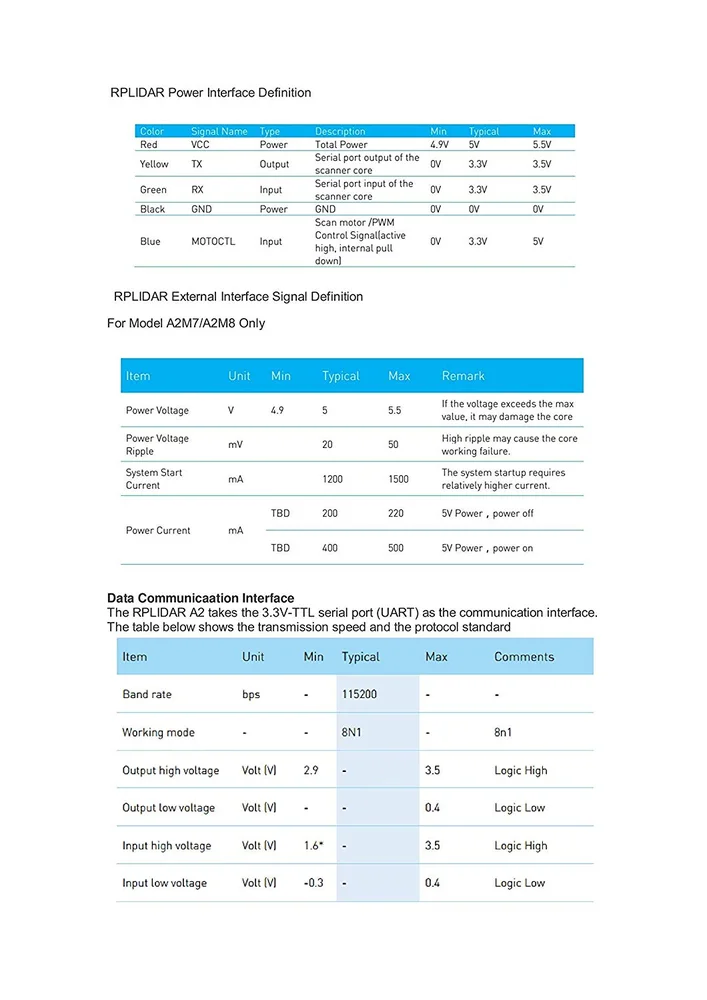

Designed for integration, the scanner core rotates clockwise, performing a full 360-degree sweep. Distance and angle data are output through a serial UART interface, while a separate PWM signal controls motor start/stop and rotation speed. The unit is rated for indoor environments and outdoor use without direct sunlight exposure, making it suitable for autonomous navigation, SLAM (Simultaneous Localization and Mapping), and 3D environment reconstruction.
Additional Information
| Weight | 0.19 kg |
|---|---|

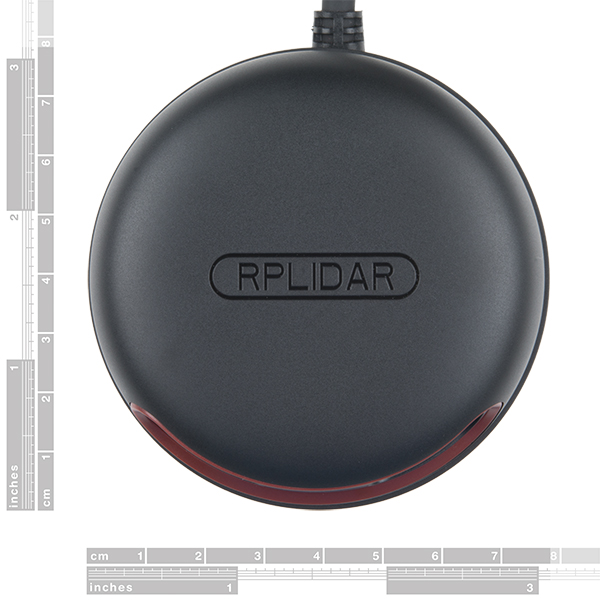

| Dimensions | 7.6 × 7.6 × 4.1 cm |
