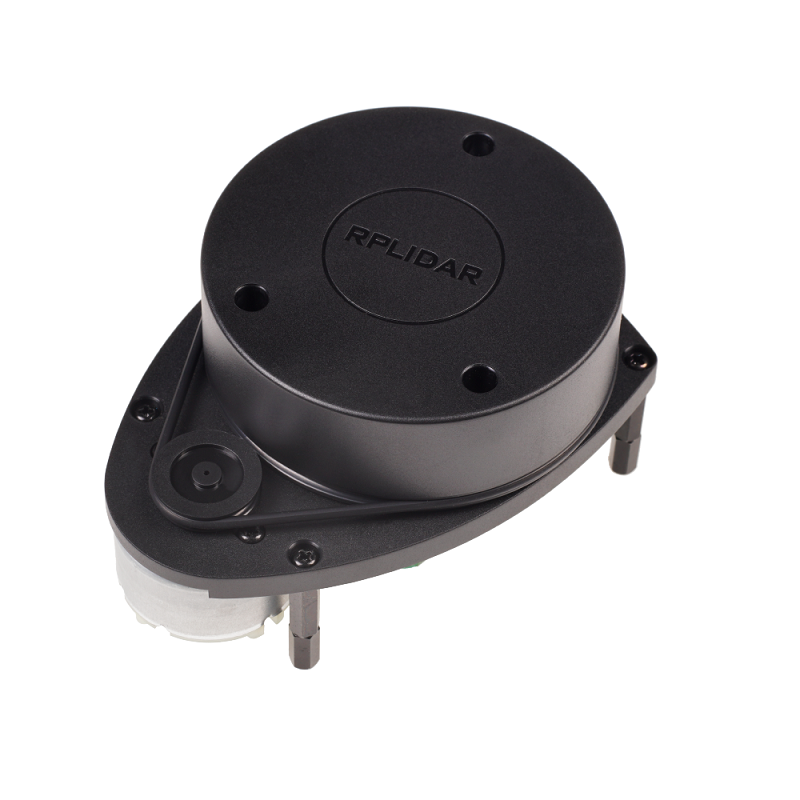

Slamtec RPLIDAR A1M8 360° Laser Range Finder 6m Radius - 12m Diameter
The Slamtec RPLIDAR A1M8 is a 360-degree 2D laser scanner (LiDAR) module designed for robotics and mapping applications. It provides real-time distance data via a serial interface, compatible with platforms like Raspberry Pi, Arduino, and embedded Linux systems for navigation and simultaneous localization and mapping (SLAM).

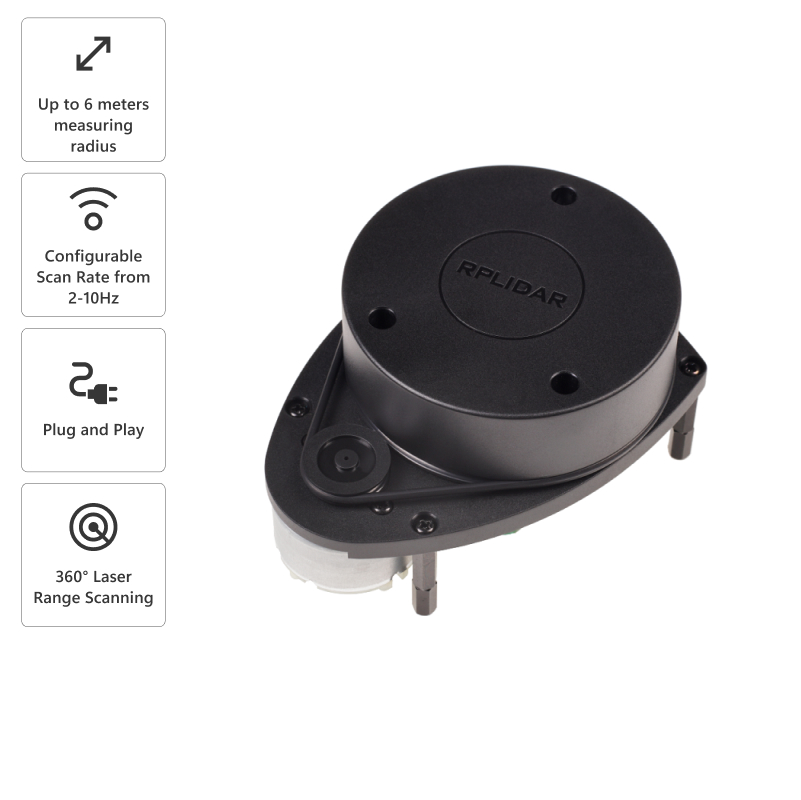

Features
- 360° omnidirectional scanning with a 6m radius (12m diameter) measurement range.
- High-speed 8000 Hz sampling rate for dense, real-time 2D point cloud data.
- Configurable scan rate from 1Hz to 10Hz, with a typical operating frequency of 5.5Hz.
- Laser triangulation measurement principle ensures reliable performance in varied indoor/outdoor lighting.

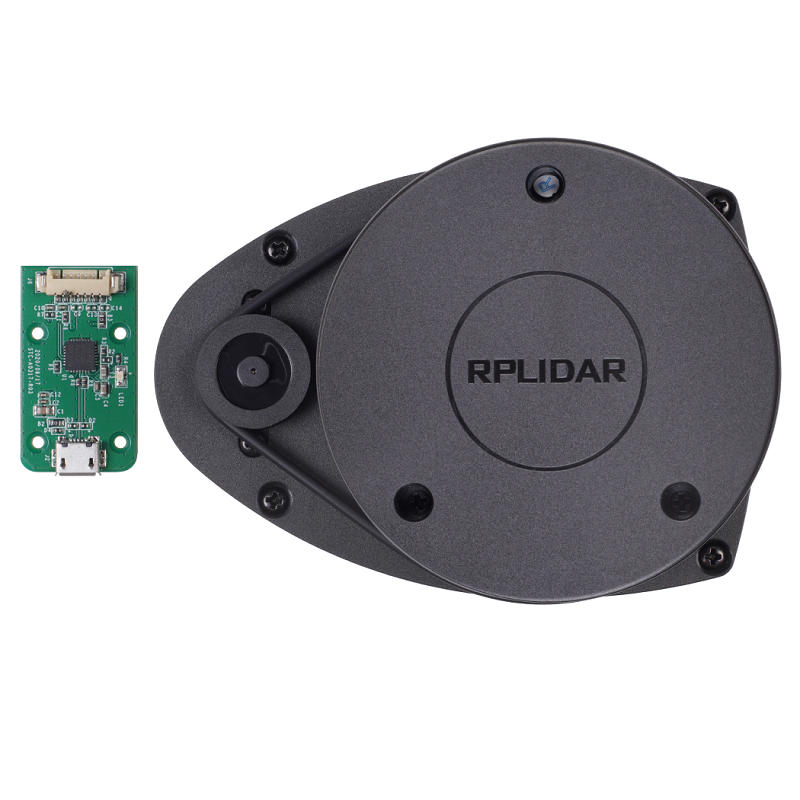

- Includes interfacing controller and cable for plug-and-play integration with robotic and embedded systems.
Out of stock
The RPLIDAR A1M8 operates on a laser triangulation principle, emitting a laser beam and calculating distance based on the reflected light’s position on a sensor. This method provides stable and precise ranging data, generating over 8000 distance samples per second to create a detailed 2D point cloud of the surrounding environment.
Engineered for durability, the module features an optimized mechanical design (OPTMAG) to prolong operational lifespan. Its performance is maintained across a wide range of indoor and outdoor conditions, excluding direct sunlight interference, making it suitable for continuous use in mobile robotics and automated scanning systems.
Additional Information
| Weight | 0.2 kg |
|---|---|
| Dimensions | 9 × 8 × 8 cm |
