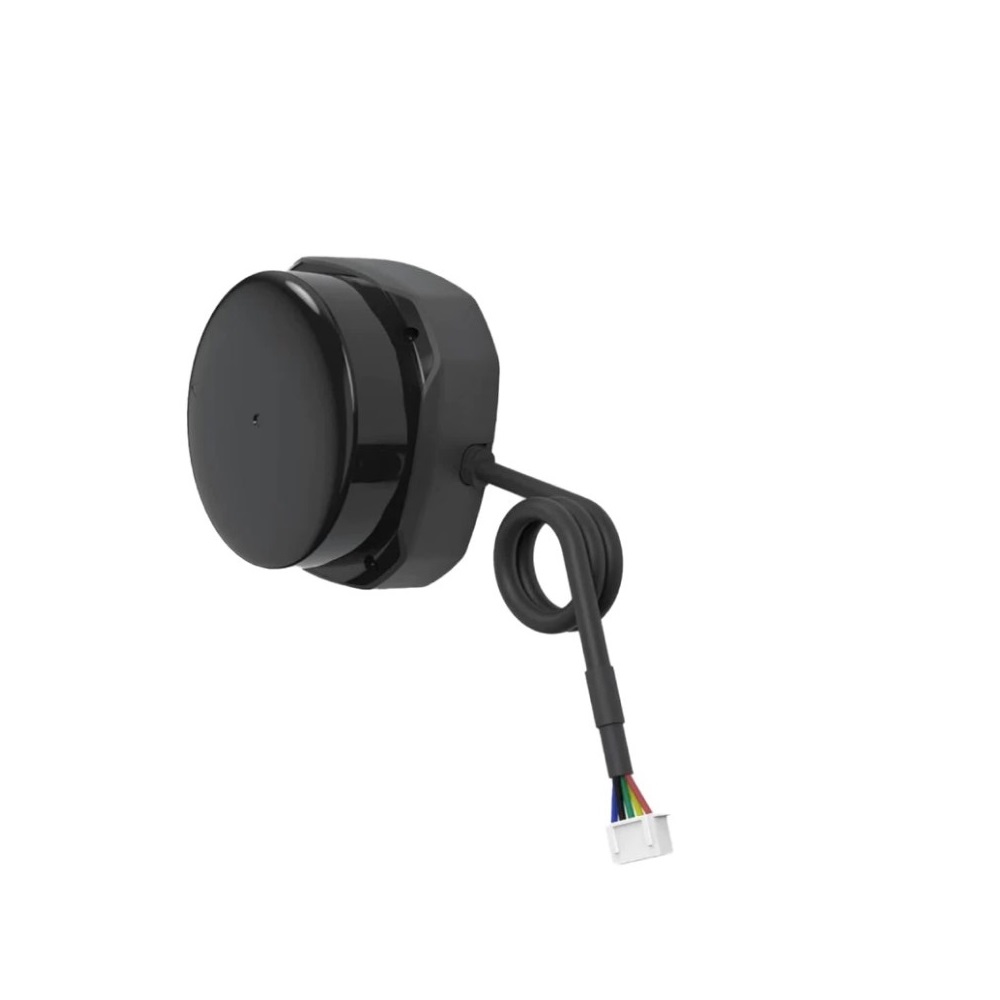

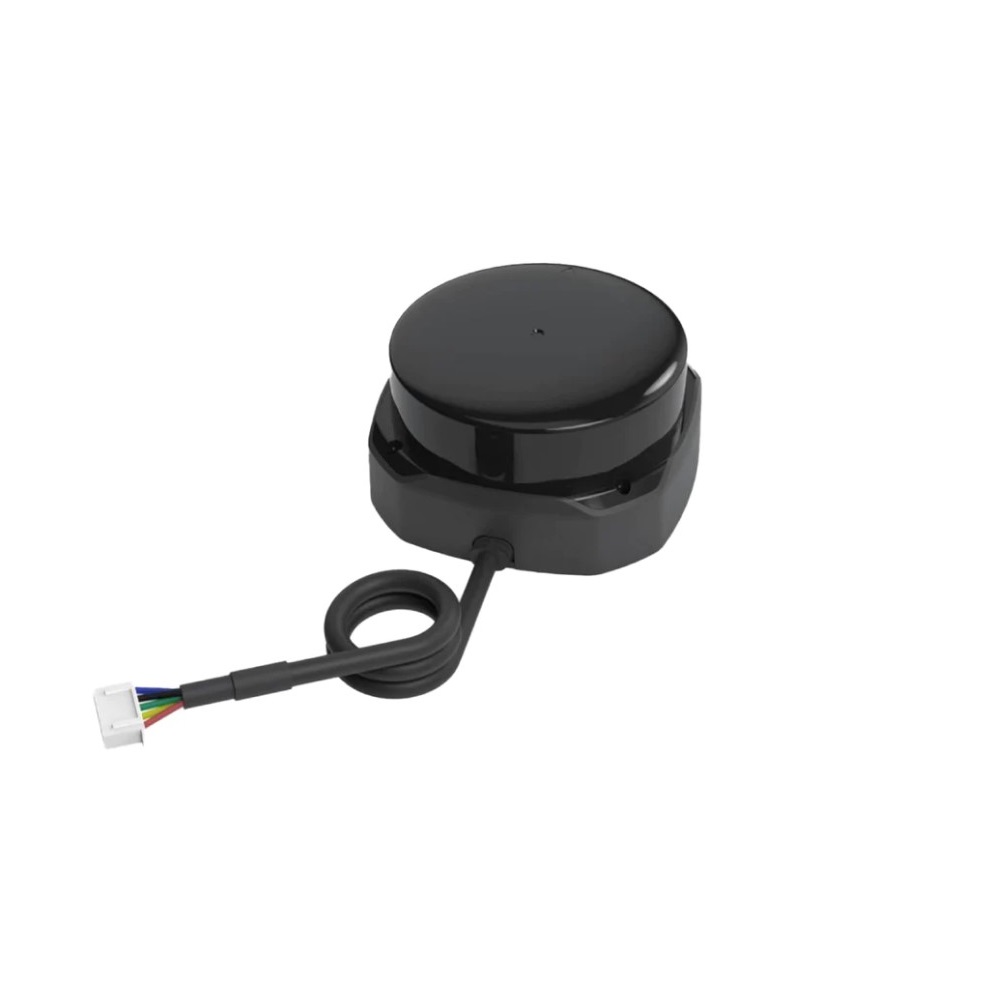

Slamtec RPLiDAR S2L 360 Degree Laser Range Scanner - 18M Range, IP65, Class 1 Eye Safe

The RPLiDAR S2L core unit typically provides a UART serial interface for data communication and motor control. It is designed to connect to a dedicated controller board (often sold separately) which may provide USB or other connectivity options for integration with a host computer or robot mainboard.

Yes, the S2L is specifically engineered for outdoor use with a high ambient light resistance of 80,000 lux. Combined with its IP65 rating for dust and water jet protection, it is suitable for deployment in outdoor robotic applications, including those exposed to bright sunlight.

Absolutely. The RPLiDAR S2L is certified to the IEC-60825 Class 1 laser safety standard. This is the safest classification, meaning the emitted laser power is inherently safe for the human eye under all conditions of normal use, making it suitable for environments where people are present.

The scanner operates on a 5V DC power supply with a typical operating current of approximately 400mA, resulting in a power consumption of just over 2 watts. This low-voltage, moderate-current design makes it compatible with standard robotics and embedded system power rails.

Slamtec engineers the S2L for long-term reliability, citing support for up to five years of continuous operation. This is achieved through the use of a brushless motor and OPTMAG light magnetic fusion technology, which reduces mechanical wear and enhances durability for commercial applications.
