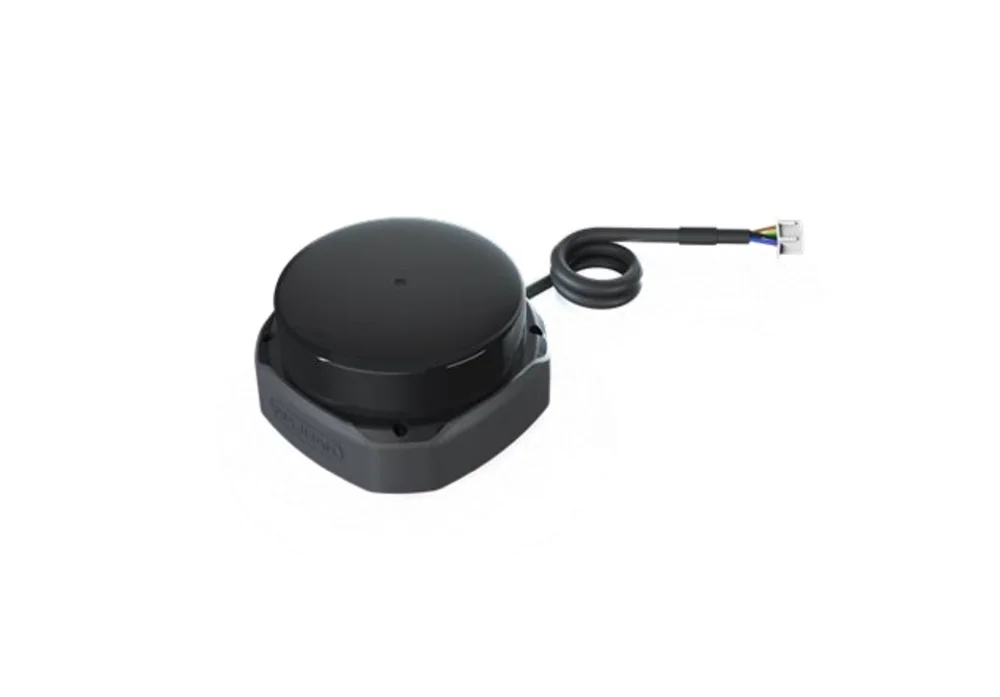

Slamtec RPLiDAR S2 360° Laser Scanner 30M Range - USB Adapter & Cables
The Slamtec RPLiDAR S2 is a 360° 2D laser ranging scanner (LiDAR) with a 30m range, designed for simultaneous localization and mapping (SLAM) applications. It outputs point cloud data via TTL UART and is powered by a 5V DC supply, making it suitable for robotics, autonomous navigation, and environmental modeling platforms.
Features
- 360° omnidirectional scanning with a 30m maximum range (10m on black objects)
- High-speed 32kHz sampling frequency and 10Hz scanning rate for real-time mapping
- Time-of-flight (ToF) laser ranging with 0.12° angular resolution
- 5V DC power supply with integrated PWM motor driver and non-contact signal transmission
- IEC-60825 Class 1 eye-safe laser for safe operation in commercial and service robotics
Out of stock
The RPLiDAR S2 utilizes laser time-of-flight (ToF) ranging technology to perform 32,000 measurements per second, generating a detailed 2D point cloud map of its surroundings. Its high-speed acquisition and processing mechanism ensure stable performance across varying light conditions and object reflectivities, from white to black surfaces.
Engineered for long-term reliability, the module employs non-contact energy and signal transmission, eliminating mechanical wear points common in traditional lidars. It operates effectively in both indoor and outdoor environments from -10°C to 50°C, supporting continuous operation in service robots, industrial automation, and smart navigation systems.
Additional Information
| Weight | 0.19 kg |
|---|---|
| Dimensions | 15 × 7 × 5 cm |
