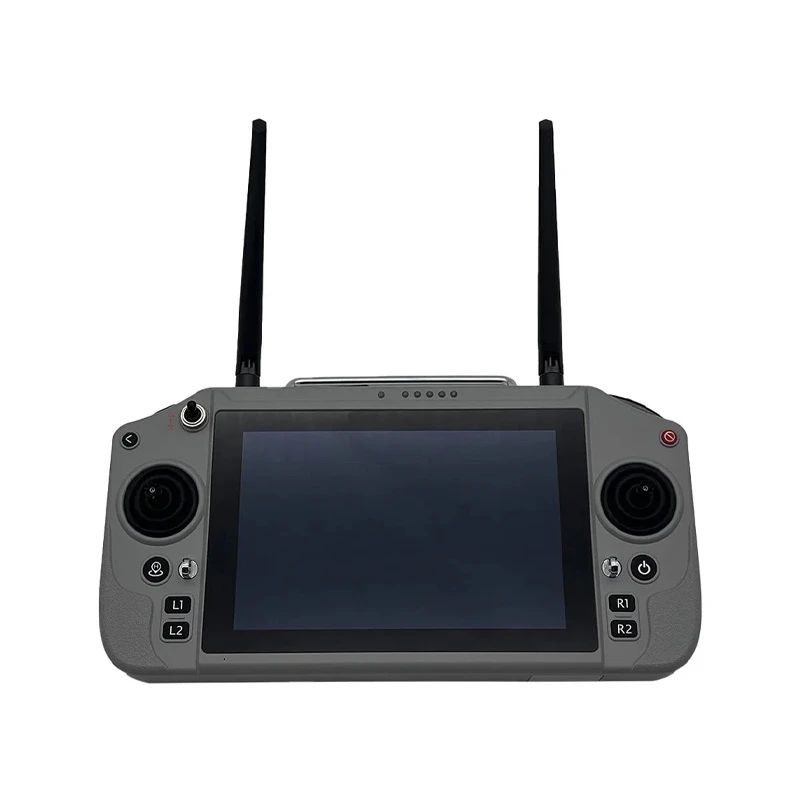

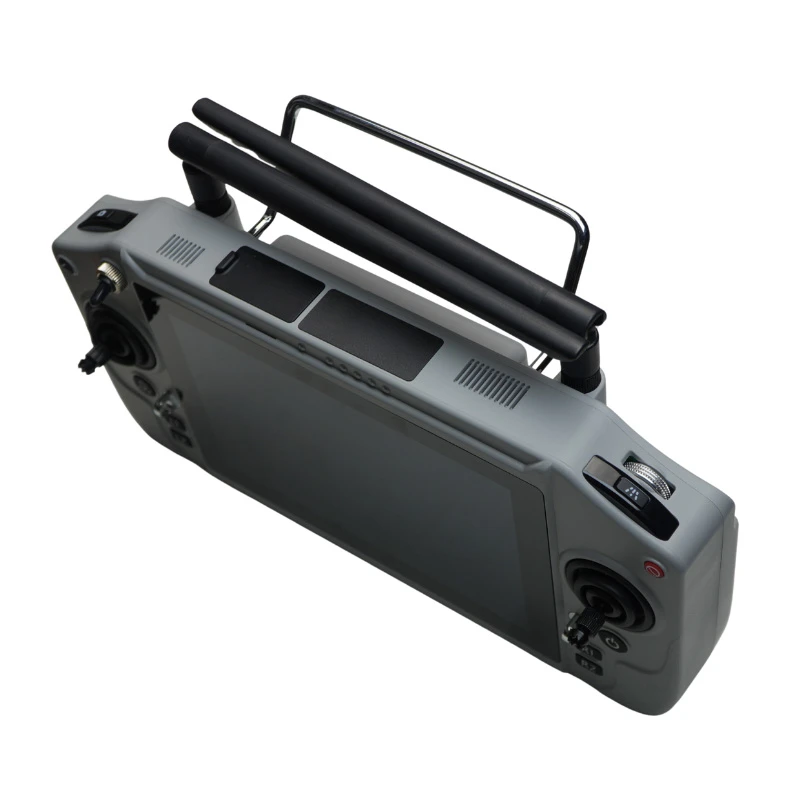

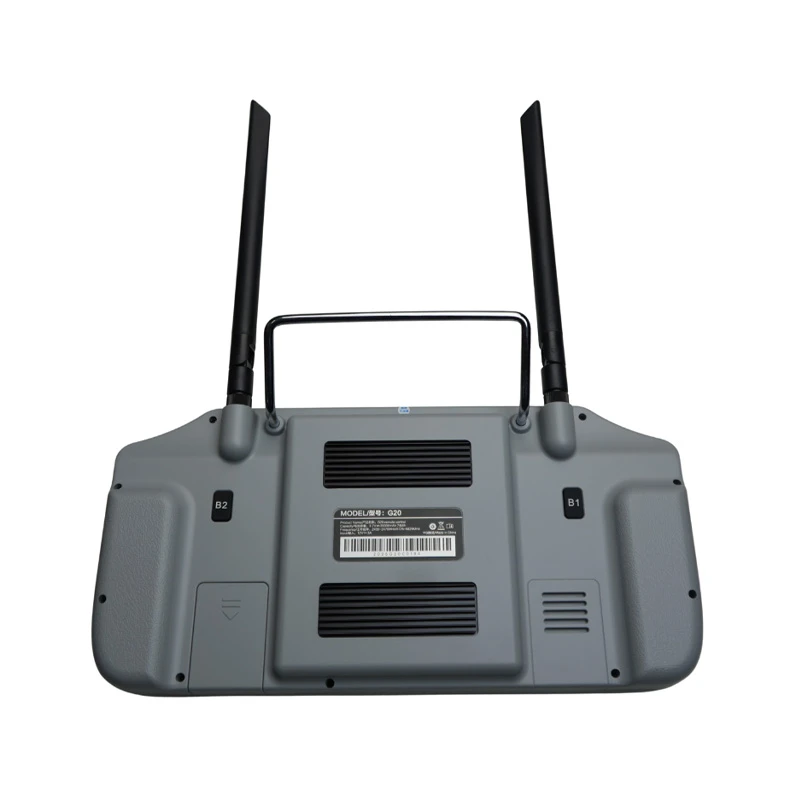

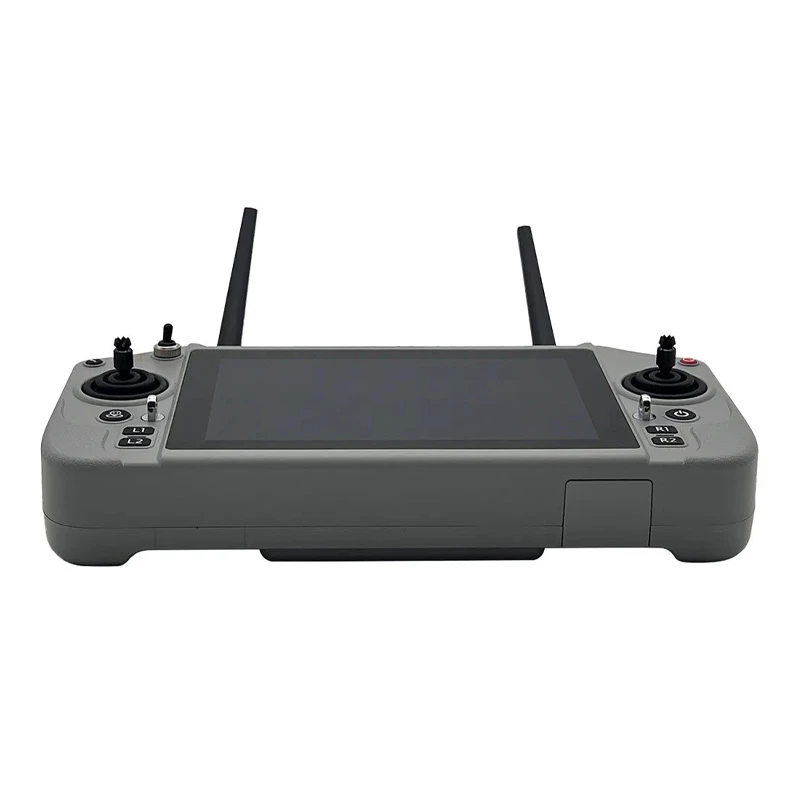

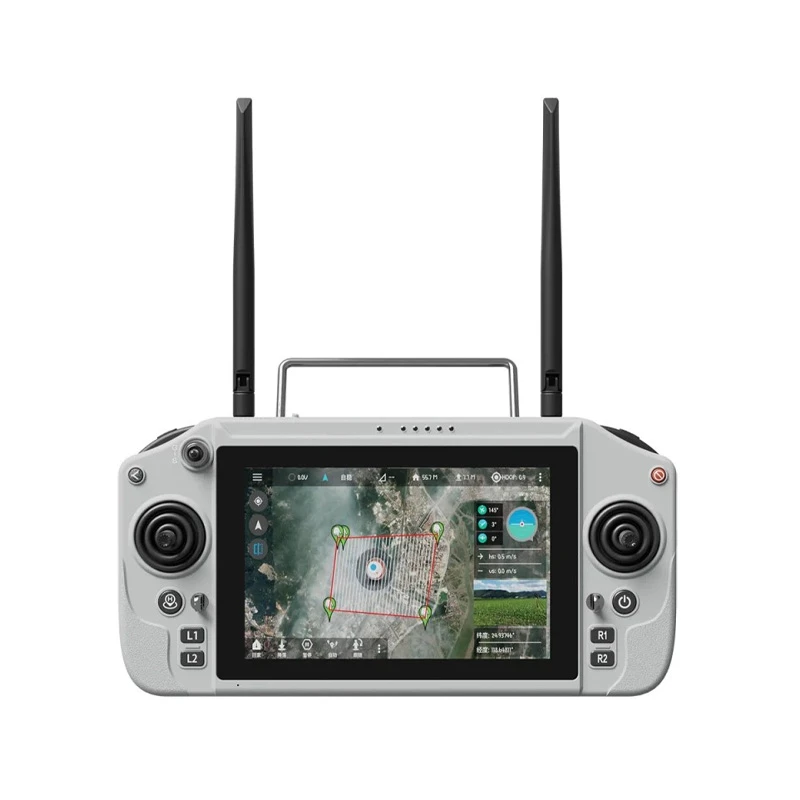

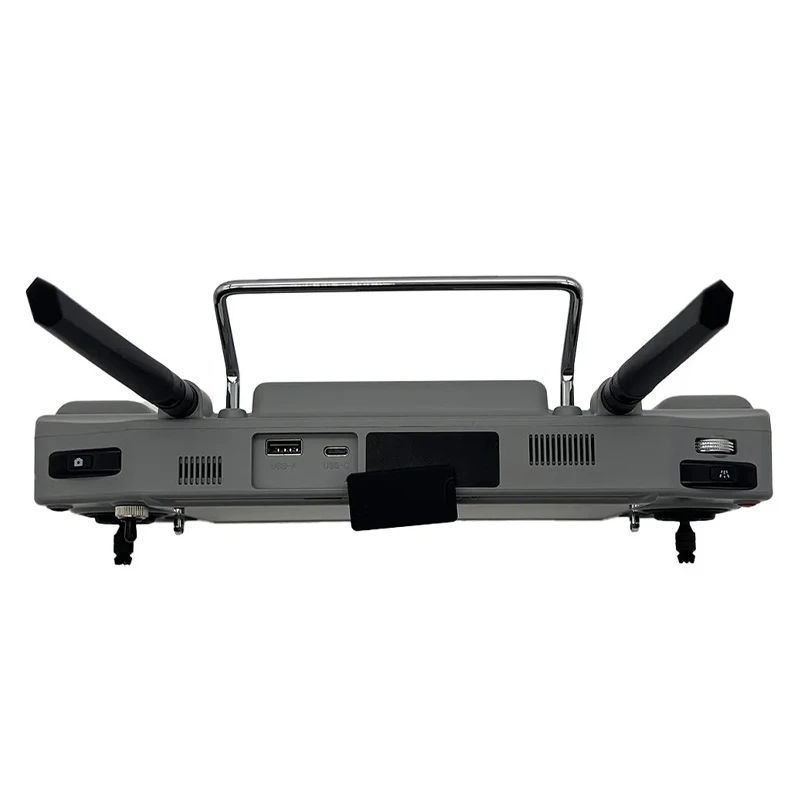

Skydroid G20 Remote Controller with GR01 Receiver
The Skydroid G20 is an Android 13-based professional ground control station featuring a Qualcomm 6nm processor, a 7-inch FHD high-brightness display, and dual-band 2.4GHz/5.8GHz RF for long-range UAV control and HD video transmission up to 30km.
Features
- Powered by Qualcomm 6nm processor running Android 13 OS with 4GB RAM and 64GB storage.
- 7-inch FHD (1920×1200) high-brightness display rated at 1500 nits for outdoor visibility.
- Dual-band 2.4GHz & 5.8GHz automatic frequency hopping with 23 dBm RF power for up to 30km control range.
- Integrated 20000mAh battery provides 6-8 hours of operation with 36W PD fast charging via USB-C.

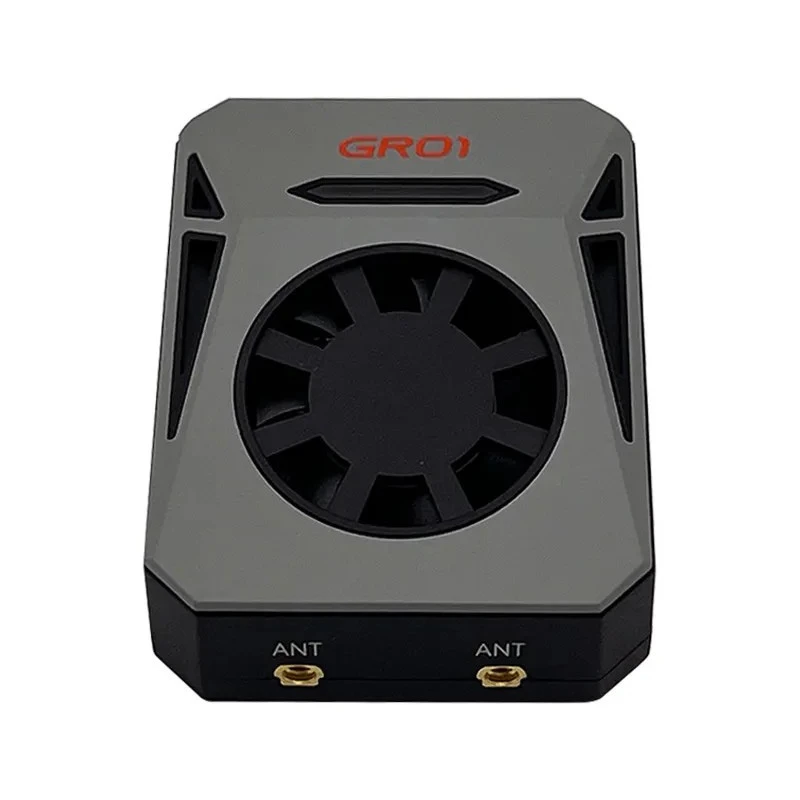

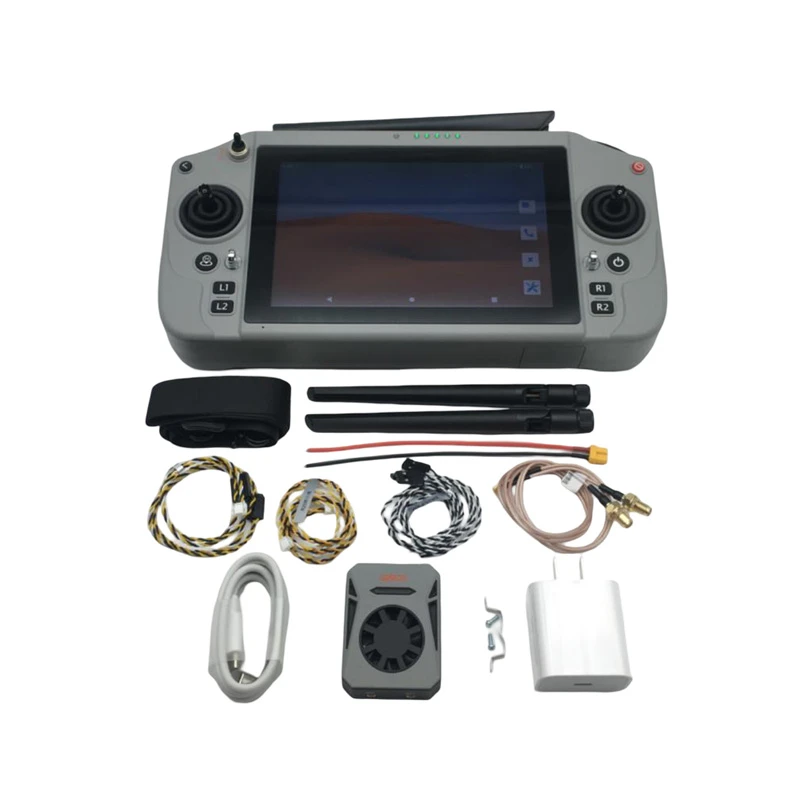

- Includes GR01 receiver module with PWM, SBUS, and serial interfaces for payload and flight controller integration.
Out of stock
The Skydroid G20 Remote Controller is engineered as a comprehensive ground control station for professional and industrial UAV operations. Its core architecture combines a high-performance Qualcomm 6nm SoC with the full Android 13 operating system, enabling robust application support, smooth hardware decoding of H.264/H.265 video streams, and efficient system multitasking. The integrated 7-inch FHD display delivers 1500-nit peak brightness, ensuring clear telemetry and FPV video feed visibility in direct sunlight.
The RF system employs dual-band 2.4GHz and 5.8GHz automatic switching with dynamic frequency hopping (DFM) to maintain stable control and video uplink/downlink in congested spectral environments. The included GR01 receiver module provides versatile connectivity for drone subsystems, supporting direct PWM servo control, SBUS flight controller input, and high-speed serial data links for cameras, gimbals, and other payloads.
Additional Information
| Weight | 1.5 kg |
|---|---|
| Dimensions | 35 × 18 × 15 cm |
